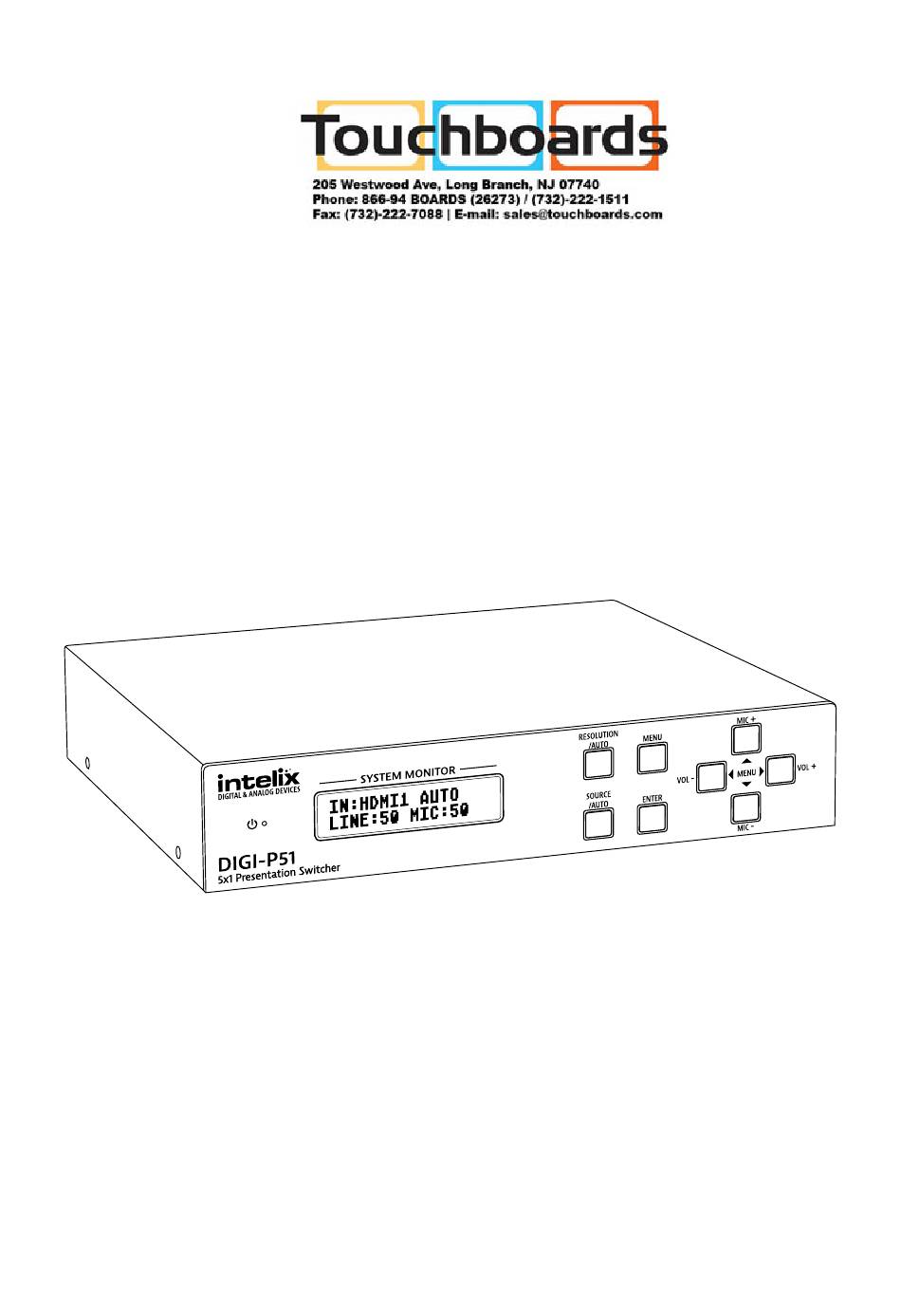

DIGI-P51 Installation and
Operation Guide
Rev 150323
8001 Terrace Ave
Phone: 608-831-0880
Suite 201
Toll-Free: 866-462-8649
Middleton, WI 53562
Fax: 608-831-1833

Advertisement

Table of Contents
loading

Summary of Contents for Intelix DIGI-P51

  • Page 1 DIGI-P51 Installation and Operation Guide Rev 150323 8001 Terrace Ave Phone: 608-831-0880 Suite 201 Toll-Free: 866-462-8649 Middleton, WI 53562 Fax: 608-831-1833...
  • Page 2 » Use only with the cart, stand, table, or rack specified by Intelix or sold with the equipment. When/if a cart is used, use caution when moving the cart/equipment combination to avoid injury from tip-over.
  • Page 3: Table Of Contents

    DIGI-P51 Installation Guide Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������� IR Remote ��������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ���������������������������������������������������������������������������������������������������������������������������� Quick Start �������������������������������������������������������������������������������������������������������������������������������������������������� Mount the Switching Scaler ������������������������������������������������������������������������������������������������������������������������ Shelf Mounting Instructions .........................
  • Page 4 DIGI-P51 Installation Guide Sound Menu ������������������������������������������������������������������������������������������������������������������������������������������������ Sound Mode ............................Surround Sound ............................ EQ (Equalizer) ............................Setup Menu ������������������������������������������������������������������������������������������������������������������������������������������������� OSD Language............................Blending..............................HDMI CEC ............................. OSD Duration ............................RS232 Commands ������������������������������������������������������������������������������������������������������������������������������������� Video Input Switching and Configuration ��������������������������������������������������������������������������������������������������� Video Input Customization ��������������������������������������������������������������������������������������������������������������������������...
  • Page 5 The DIGI-P51 can be controlled in many different ways. When the VGA inputs are defined as PC signal inputs, the DIGI-P51 can be configured to auto-switch to any source once connected to the switcher. The front panel offers source selection, output resolution, and volume control.
  • Page 6 DIGI-P51 Installation Guide Package Contents Please verify the following items are in the shipping box prior to installation of the DIGI-P51. DIGI-P51 Switching Scaler Rubber Shelf Feet 1 ea 4 ea 12V DC 2A Power Mounting Rails with Screws Supply...
  • Page 7 DIGI-P51 Installation Guide Front and Rear Panels Front Panel Power indicator LED LCD screen Resolution selection button Menu button Source volume down button (Menu Left) Microphone volume up button (Menu Up) Source volume up button (Menu Right) Source select button Menu “Enter”...
  • Page 8: Rear Panel

    DIGI-P51 Installation Guide Rear Panel Unbalanced analog audio inputs Unbalanced analog audio output IR input Firmware update port RS232 input 12V DC input Microphone input Microphone input selector HDMI inputs VGA/analog video inputs HDMI output...
  • Page 9: Ir Remote

    DIGI-P51 Installation Guide IR Remote The included IR remote performs all of the functions available on the front panel of the DIGI-P51 plus CEC control for compatible sources. Please see page 15 for information on controlling the switching scaler from the front panel and the IR remote.
  • Page 10: Installation Instructions

    Apply power Mount the Switching Scaler At least 2 inches of free air space is required on both sides of the DIGI-P51 for proper side ventilation. Avoid mounting the DIGI-P51 near a power amplifier or any other source of significant heat.
  • Page 11: Connect Sources

    DIGI-P51 Installation Guide Connect Sources HDMI Inputs Connect the source devices to HDMI inputs using HDMI cables that are less than or equal to 5 meters in length. For source devices that are further away, an HDMI extension device will be required to complete the connection.
  • Page 12: Connect Display

    DIGI-P51 Installation Guide Connect Display Connect the display devices to HDMI outputs using HDMI cables that are less than or equal to 5 meters in length. For display devices that are further away, it is highly recommended to utilize the HDBaseT output.
  • Page 13: Connect Audio Output (Optional)

    Connect IR Control (Optional) In order to control the DIGI-P51 via IR, the included DIGIB-EYE must be connected to the IR input port (IR IN) of the scaler. Only use the included IR component, DIGIB-EYE (IR receiver) with the DIGI-P51. Third party 12V DC IR components are not compatible with the DIGI-P51.
  • Page 14: Connect Rs232 Control (Optional)

    • 1 Stop Bit • Parity = none See page 22 for all available control commands for the DIGI-P51. Connect the included straight-through serial cable between the RS232 port on the DIGI-P51 and the controller. Apply Power Plug the power supply into the power input port on the rear of the switching scaler.
  • Page 15: Front Panel And Ir Remote Operation

    Auto Selection: Press and hold the Source/Auto button for 15 seconds to enable the Auto Switching mode of the DIGI-P51. This function will not be available if either of the VGA ports are set to an alternate analog video format.
  • Page 16: Volume Control

    DIGI-P51 Installation Guide Volume Control Press VOL- and VOL+ to adjust the audio level of the source volume control. Press MIC- and MIC+ to adjust the audio level of the microphone volume control. In addition to source (LINE) and microphone (MIC) volume control adjustments, the IR remote features mute buttons for the audio sources.
  • Page 17: System Menu

    DIGI-P51 Installation Guide System Menu INPUT SOURCE Press the MENU button to enter the system menu. The source INPUT 1 INPUT 2 INPUT 3 and microphone volume controls also function as menu arrows while in the system menu. Press the ENTER button to make a INPUT SOURCE selection within the interface.
  • Page 18: Menu Navigation

    DIGI-P51 Installation Guide Menu Navigation The menu system of the DIGI-P51 provides a wide array of options to customize the installation of the product regardless of customer needs. Upon entering the menu, navigating left or right will provide four different submenus: Options, Picture, Sound, and Setup.
  • Page 19: Picture Menu

    DIGI-P51 Installation Guide Picture Menu The Picture menu features per input image adjustments: picture mode, color temperature, aspect ratio, noise reduction (HDMI only), screen settings (VGA only), and color range (HDMI only). Picture Mode Selecting Picture Mode will open another menu which will change the contrast, brightness, color, and sharpness of the input image.
  • Page 20: Screen (Vga Only)

    DIGI-P51 Installation Guide Screen (VGA Only) Selecting Screen will open another menu which will adjust the input signal processing to clear up various analog distortion issues. Auto Adjust will automatically correct for any input signal issues. Manual adjustments include Horizotal Position, Vertical Position, Size, and Phase where values range from 0 to 100. Pressing MENU will exit the submenu.
  • Page 21: Setup Menu

    OSD duration. OSD Language Selecting OSD Language will open another menu which will change the menu language of the DIGI-P51. The available languages are: English, German, Russian, Chinese, French, Spanish, and Swedish. The default language is English. Pressing MENU will exit the submenu.
  • Page 22: Rs232 Commands

    DIGI-P51 Installation Guide RS232 Commands RS232 Settings: 9600 baud, 8 Data bits, 1 Stop bit, Parity = None There are no spaces between any of the characters in the command string. <CR> = Carriage return (Hex 0D) <LF> = Line Feed (Hex 0A)
  • Page 23: Video Input Customization

    DIGI-P51 Installation Guide Video Input Customization Description Command Response Aspect Ratio : 16:9<CR><LF> OR Aspect Ratio : 4:3<CR><LF> OR Aspect Ratio : auto<CR><LF> OR 50608% Cycle aspect ratio Aspect Ratio : panorama<CR><LF> OR Aspect Ratio : justscan<CR><LF> OR Aspect Ratio : zoom2<CR><LF> OR Aspect Ratio : zoom1<CR><LF>...
  • Page 24: Video Output Configuration

    DIGI-P51 Installation Guide Video Output Configuration Description Command Response 50619% Resolution: 1360x768<CR><LF> 1360x768 output 50620% Resolution: 1920x1200<CR><LF> 1920x1200 output 50621% Resolution: 1600x1200<CR><LF> 1600x1200 output 50626% Resolution: 1024x768<CR><LF> 1024x768 output 50627% Resolution: 1280x720<CR><LF> 1280x720 output 50628% Resolution:1280x800<CR><LF> 1280x800 output 50629% Resolution: 1920x1080<CR><LF>...
  • Page 25: Audio Input Configuration And Adjustment

    DIGI-P51 Installation Guide Audio Input Configuration and Adjustment Description Command Response 50706% HDMI 1 Audio from Embedded<CR><LF> Use embedded audio for HDMI 1 50707% HDMI 1 Audio from LINE<CR><LF> Use external audio for HDMI 1 50708% HDMI 2 Audio from Embedded<CR><LF>...
  • Page 26: Cec Setup And Control

    DIGI-P51 Installation Guide CEC Setup and Control Description Command Response 50686% HDMI CEC ON<CR><LF> Enable CEC 50687% HDMI CEC OFF<CR><LF> Disable CEC 50901% CEC cmd: play&pause<CR><LF> CEC Play/pause 50902% CEC cmd: stop<CR><LF> CEC Stop 50903% CEC cmd: menu<CR><LF> CEC Menu 50904% CEC cmd: rev<CR><LF>...
  • Page 27: System Query

    DIGI-P51 Installation Guide System Query Description Command Response LINE Volume: XX<CR><LF> AND 50630% Check volume level MIC Volume: XX<CR><LF> Input: HDMI 1<CR><LF> OR Input: HDMI 2<CR><LF> OR 50631% Check input source Input: HDMI 3<CR><LF> OR Input: VGA 1<CR><LF> OR Input: VGA 2<CR><LF>...
  • Page 28: System Query (Continued)

    DIGI-P51 Installation Guide System Query (continued) HDMI1 Audio from XXXX port AND 50712% Check HDMI audio inputs HDMI2 Audio from XXXX port AND HDMI3 Audio from XXXX port Freeze: enable<CR><LF> 50753% Check Freeze output image status Freeze: disable<CR><LF> Front Panel Lock<CR><LF> OR...
  • Page 29: Troubleshooting

    DIGI-P51 Installation Guide Troubleshooting Presentation Switcher does not power on » Verify power outlet is active. » Verify the power supply connector is secured to the rear of the switcher. Distorted or no video output » Verify the video output resolution is compatible with the display.
  • Page 30: Technical Specifications

    DIGI-P51 Installation Guide Technical Specifications Input Connections HDMI Inputs Three (3) HDMI type A VGA Inputs Two (2) Female HD15 Analog Audio Inputs Five (5) 3-Pole/3.5mm Euroblock Microphone Input One (1) 3-Pole/3.5mm Euroblock Control (Front Panel) Push Button Control (Rear Panel) RS232 via 3-Pole/3.5mm Euroblock, IR via 3.5 mm TRS...
  • Page 31 DIGI-P51 Installation Guide Control Parameters RS232 Baud 9600 baud Chassis and Environmental Enclosure Painted Aluminum Dimensions 44 mm x 220 mm x 148 mm (1.73 in x 8.66 in x 5.83 in) – 1RU Shipping Weight 0.67 kg (1.48 lbs.) Operating Temperature 0°...
  • Page 32 Please contact us with your questions and comments. Intelix 8001 Terrace Ave, Ste 201 Middleton, WI 53562 Phone: 608-831-0880 Toll Free: 866-462-8649 Fax: 608-831-1833 www.intelix.com intelix@intelix.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
