INT-HD52 Quick Install Guide
For complete owners manual go to www.libav.com or use a QR reader to access
Important notice:
•
Do not attempt to disassemble or alter the housing. There are no user-serviceable parts
inside the unit. Doing so will void your warranty.
•
To minimize the possibility of equipment damage from electrostatic discharge (ESD), all
source and destination equipment must be powered off during installation.
•
Do not connect the device to a telecommunication outlet wired to unrelated equipment.
Doing so may damage the unit or any connected equipment. Ensure all connected twisted pair
cabling is straight-through (point-to-point).
•
Allow proper ventilation to reduce the risk of thermal failure.
This guide is for quick installation only.
the manual via QR code below.
Scan QR Code with your Smart-phone or Tablet

Advertisement

loading
Need help?

Need help?

Do you have a question about the INT-HD52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intelix INT-HD52

Summary of Contents for Intelix INT-HD52

  • Page 1 INT-HD52 Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Important notice: •...

  • Page 2: Front Panel

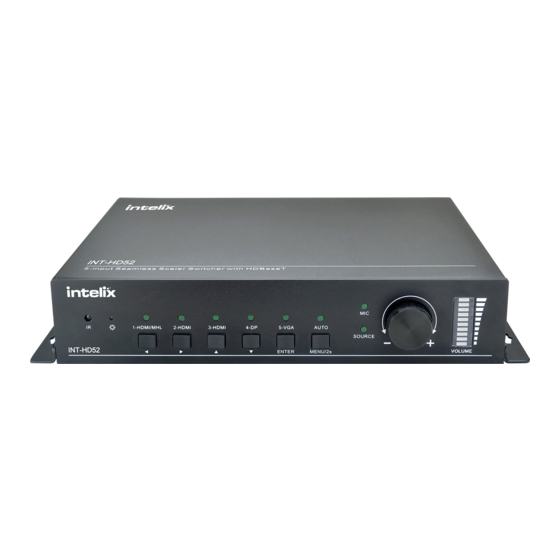

    The Intelix INT-HD52 is a 5 input multi format A/V presentation auto switcher that scales video signals to an HDMI and HDBaseT output simultaneously. HDBaseT output supports PoH and can connect to a compatible HDBaseT receiver up to a maximum of 70 meters / 230 feet (HDBaseT receiver sold separately). With 1 IR In and 1 IR Out and 1 RS232, the IR and RS232 control signals can be transmitted bi-directionally between the INT-HD52 and a compatible HDBaseT receiver.

  • Page 3: Rear Panel

    • FIRMWARE - Type-A USB port for updating firmware • RS232 - Serial port, connect a control device to control the INT-HD52 • TCP/IP - Ethernet port, connect a control device or computer to control INT-HD52 AUDIO OUTPUT • Stereo balanced L/R audio output DC 24V •...
  • Page 4 9. Connect control devices (control systems) to the TCP/IP port for IP control 10. Connect control devices (control systems) to the RS232 for serial control 11. Connect IR eye to the IR EYE port so the INT-HD52 can be controlled via IR remote in rack cabinets or underneath a conference table 12.

  • Page 5: Technical Specifications

    Included Accessories cushions (1) IR Remote; (1) VGA to component breakout cable; (1) RS232 to 3 pin phoenix breakout cable; (1) IR emitter (1) IR eye; (1) Quick Install Guide Intelix 11675 Ridgeline Drive Colorado Springs, CO 80918 800-530-8998 supportlibav@libav.com...
