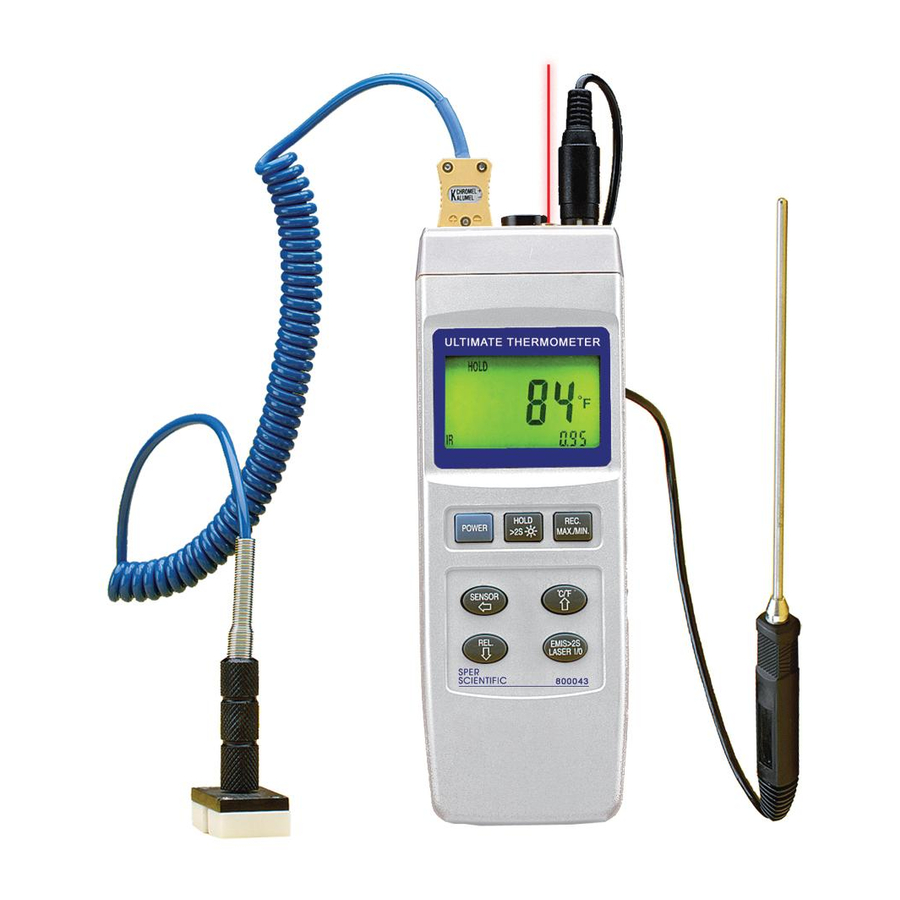

- Page 1 ULTIMATE THERMOMETER 800043 Instruction Manual IR thermometer • Pt 100 ohm • Type K/J/R/E/T • SPER SCIENTIFIC LTD.
-
Page 2: Table Of Contents
CONTENTS Panel Description ............ II. Introduction .............. III. Operating Instructions A. IR Measurement ..........B. Thermocouple Measurement ....... C. Pt 100 OHM Measurement ........D. Data Hold ............E. Data Record ............F. Relative Measurement ......... G. LCD Back Light ........... H. -
Page 3: Ii. Introduction
II. INTRODUCTION Combines Infrared, RTD and thermocouple capabili- ties in a single unit. For general purpose applications chose any type K, J, R, E, or T thermocouple probe. For a precise temperature read- ing use the PT100 RTD probe. The built-in IR thermometer features a laser guide and adjustable emissivity. - Page 4 DISTURBANCE - Objects with low emissivity or objects with a low temperature and high emissivity, emit little infrared energy. For this reason, measurement of these objects is affected by infrared energy radiated from nearby objects with high emissivity or high temperatures. Object When such objects are measured in sunlight for example, radiated...
-
Page 5: C. Pt 100 Ohm Measurement
B. THEMOCOUPLE MEASUREMENT (K, J, T, E, R) 1. With the meter on, press the SENSOR button (3) to select your sensor type. The display shows: IR, Pt3850, K, J,T, E, or R. 2. Insert the probe plug into the Thermocouple Input (11). 3. -
Page 6: G. Lcd Back Light
G. LCD BACK LIGHT - Press the BACK LIGHT >2S button (5) for at least 2 seconds. The LCD will light for approximately 10 seconds, then turn off. H. AUTO POWER OFF - If no buttons are pushed for approximately 10 minutes, the meter will automatically turn off. -
Page 7: Iv. Specifications
IV. SPECIFICATIONS Type Range Accuracy (meter only) PT 100 -200 ~ 850°C, -328 ~ 1562°F Type K -100 ~ 1300°C, -148 ~ 2372°F ± 0.2%+0.5°C or 1°F 0.1° Type J -100 ~ 1150°C, -148 ~ 2102°F Type T -100 ~ 400°C, -148 ~ 752°F Type E -100 ~ 900°C, -148 ~ 1652°F ±... -
Page 8: V. Optional Accessories
• 850080 Data Acquisition Software VI. WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of FIVE (5) YEARS from the date of purchase, and agrees to repair or replace any defective unit without charge.
