- Page 1 CT188 6" BUFFER User Manual Version 1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Safety Instructions..................3 Specific Safety Instructions ..................4 CT188 Features ...................... 5 Physical Features ....................6 Unpacking ....................... 7 Proper Grounding ....................7 Mounting on A Workbench..................8 Installing Buffing Wheels..................9 Test Run ......................... 9 Operation ........................ -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS FOR MACHINES Extreme caution should be used when operating all power tools. Know your power tool, be familiar with its operation, read through the user manual and practice safe usage procedures at all times. ALWAYS read and understand the NEVER leave a tool unattended while it user manual before operating the is in operation. -
Page 4: Specific Safety Instructions
CT188 – BUFFER SPECIFIC SAFETY INSTRUCTIONS Read and follow all the instructions Always inspect the work-piece before and safety precautions in the user buffing. Do not buff pieces with loose manual before setup or use. knots, large splinters, sharp edges,... -
Page 5: Ct188 Features

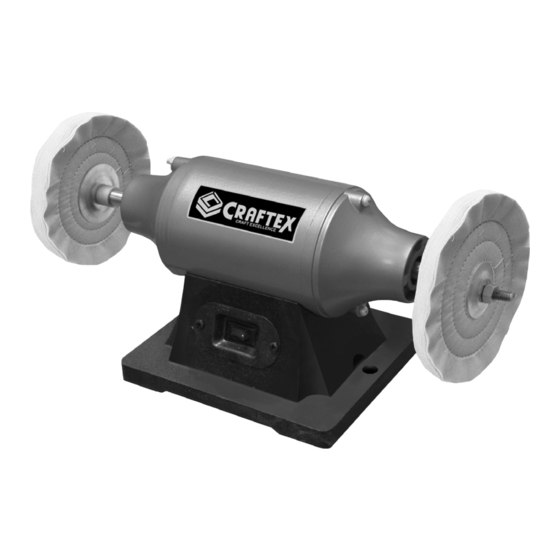

FEATURES MODEL CT188 - 6" BUFFER As part of the growing line of Craftex woodworking equipment, we are proud to offer the CT188 a 6" Buffer. By following the instructions and procedures laid out in this user manual, you will receive years of excellent service and satisfaction. -
Page 6: Physical Features
PHYSICAL FEATURES Left Buffing Wheel Right Inner Buffing Wheel Wheel Flange Outer Wheel Flange Spacer Arbor Nut ON/OFF Switch Shaft Base Mounting Hole... -
Page 7: Unpacking
It is recommended not to use extension UNPACKING cords with your CT188. Always try to position your machine close to the power The machine is properly packaged and source so that you do not need to use shipped in a carton for safe transportation. -
Page 8: Mounting On Aworkbench
MOUNTING ON A to the workbench using lag screws. See WORKBENCH figure-3. The CT188 features two pre-drilled holes on its base which allow mounting the buffer to the workbench. There are two ways to mount the buffer onto the workbench; through mount and direct mount. -
Page 9: Installing Buffing Wheels
WHEELS Once you have mounted your machine, it is then time for a test run to make sure that To install the buffing wheels on the CT188: the machine works properly and is ready for operation. Make sure the cord is disconnected from the power source. -
Page 10: Operation
OPERATION BUFFING TIPS The buffing operation will vary depending 1. Always wear safety equipments when on the type of buffing wheel used and the buffing. Wearing safety glasses for the type of material to be buffed. protection of your eyes, dust mask to protect your lungs from microscopic To operate the buffer: particles and leather apron. -
Page 11: Maintenance
MAINTENANCE CLEANING During the life of your machine, you will Vacuum excess wood chips, sawdust, or need to practice some regular maintenance metal shavings and wipe off the remaining to keep your buffer in peak performance dust with a dry cloth. Use a resin dissolving condition. -
Page 12: Parts Diagram
CT188 PARTS DIAGRAM... -
Page 13: Parts List
CT188 PARTS LIST ITEM DESCRIPTION HEX NUT I TYPE M12 LEFT WHEEL FLANGE SOFT BUFFING WHEEL SPACER HEX NUT M5 END BELL WAVE ELASTIC COLLAR D35 BEARING POWER CORD & PLUG CORD CLIP BOTTOM PLATE PHILIPS SCREW M5X8 CORD CLIPS... -
Page 14: Warranty
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
