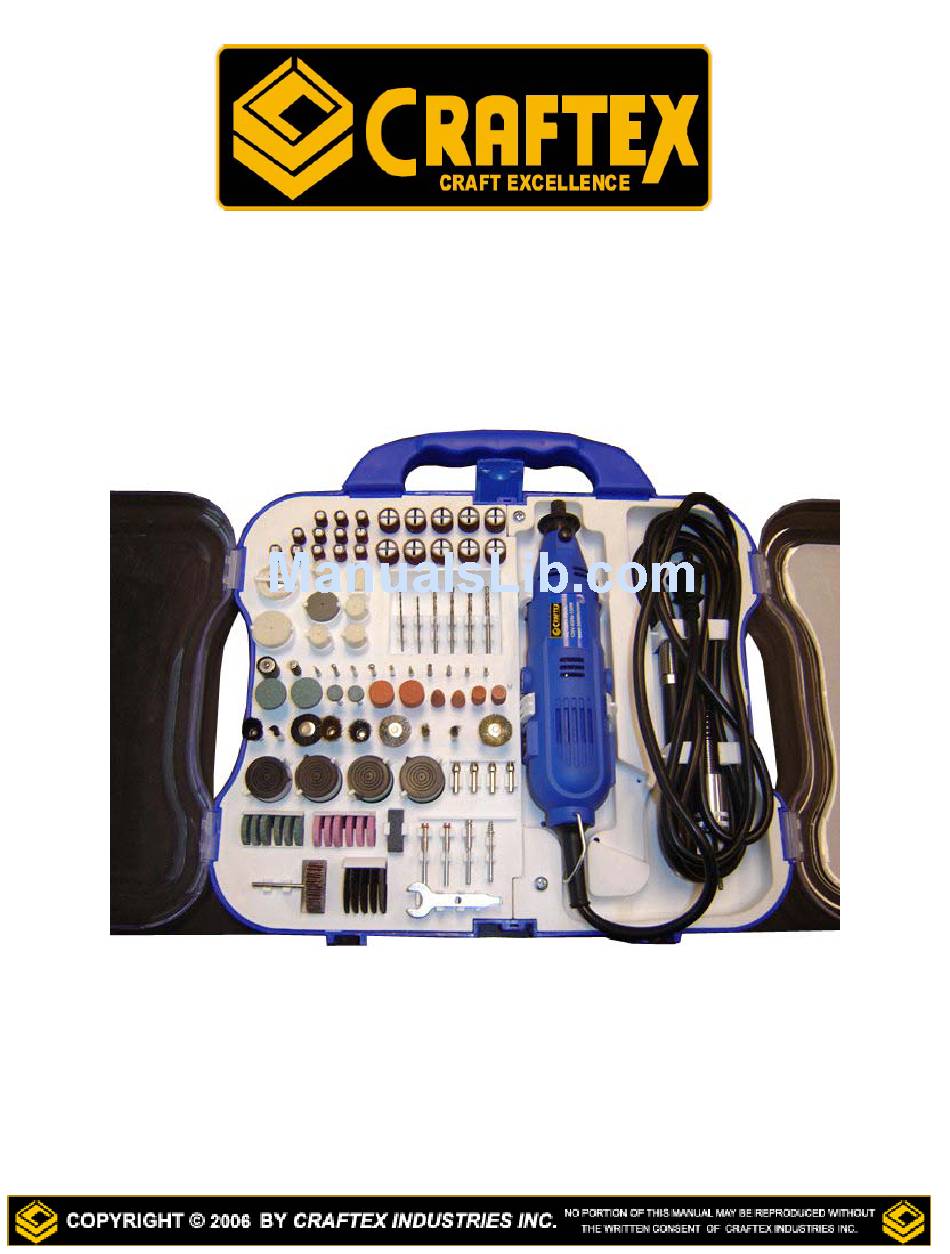

- Page 1 OWNER’S MANUAL 165 PCS ROTARY TOOL SET...
- Page 2 CT106 – 165 PCS ROTARY TOOL SET GENERAL SAFETY INSTRUCTIONS EXTREME CAUTION SHOULD BE USED IN OPERATING ALL POWER TOOLS. KNOW YOUR POWER TOOL, BE FAMILIAR WITH ITS OPERATION. READ THE OWNER’S MANUAL AND PRACTICE SAFE USAGE PROCEDURES AT ALL TIMES.

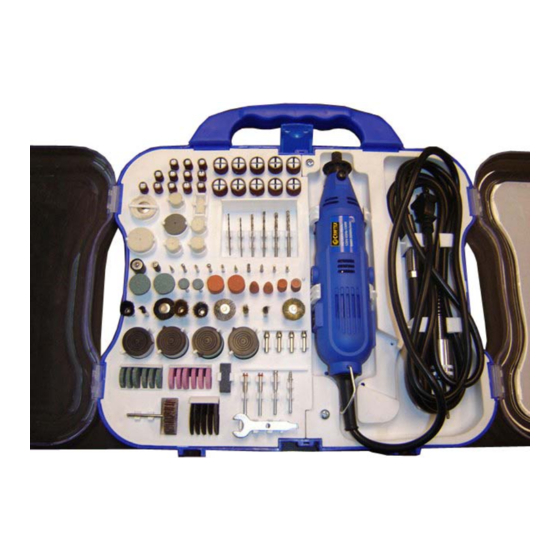

- Page 3 CT106 – 165 PCS ROTARY TOOL SET As part of the growing line of Craftex Tools & Equipment, we are proud to offer the CT106 Rotary Tool Kit. The Craftex name guarantees Craft Excellence. By following the instructions and procedures laid out in this owner’s manual, you will receive years of excellent service and satisfaction.
- Page 4 CT106 – 165 PCS ROTARY TOOL SET Functional Description The rotary tool is a multi-purpose tool able to cut, drill, polish, grind sand engrave and many other uses based on the accessory attached to the collet. It works on a high speed, low torque principle where the revolution can attain 30,000 rpm compared to a typical 2.800 rpm for an...
- Page 5 Avoid body contact with grounded surfaces such as pipes, radiators and refrigerators. There is an increased risk of electric shock if your body is grounded. Don’t expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. When operating a power tools outside, use an outdoor extension cord marked ”W-A”...
- Page 6 The flex shaft is used for getting into tight spaces and reaching otherwise tough angles and corners. Do not operate the flex shaft with sharp bends to the shaft. To use, unplug the power first! Loosen the collet nut. Slide the inner spiral out of the flex shaft.
- Page 7 Maintenance After each use, the motor housing should be wiped clean and the housing as well as any used tool bits should be blown with compressed air. Proper care will lead to an extended life of the tool Additional Safety Rules For Rotary Tools Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
- Page 8 CT106 – 165 PCS ROTARY TOOL SET SCEMATIC DIAGRAM...
-
Page 9: Parts List
CT106 – 165 PCS ROTARY TOOL SET PARTS LIST NAME NAME COLLET NUT BRUSH BASE BRASS COLLET BRUSH CAP BEARING 698zz SCREW M3*15 ROTOR RIGHT HOUSING STATOR WIRE BOARD LOCKING SLEEVE SWITCH PREVENT SPRING SCREW M3*12 SPINDLE LOCK BUTTON PLACE BOARD... - Page 10 CRAFTEX 1 YEAR LIMITED WARRANTY Craftex warrants every product to be free from defects in materials and agrees to correct such defects where applicable. This warranty covers one year for parts and 90 days for labour (unless specified otherwise), to the original purchaser from the date of purchase but does not apply to malfunctions arising directly or indirectly from misuse, abuse, improper installation or assembly, negligence, accidents, repairs or alterations or lack of maintenance.
