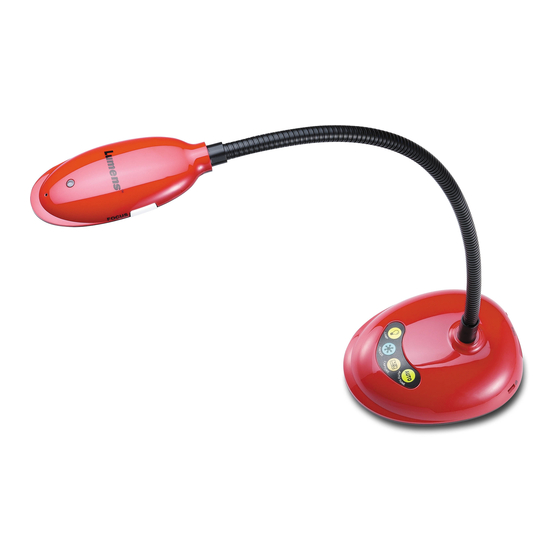

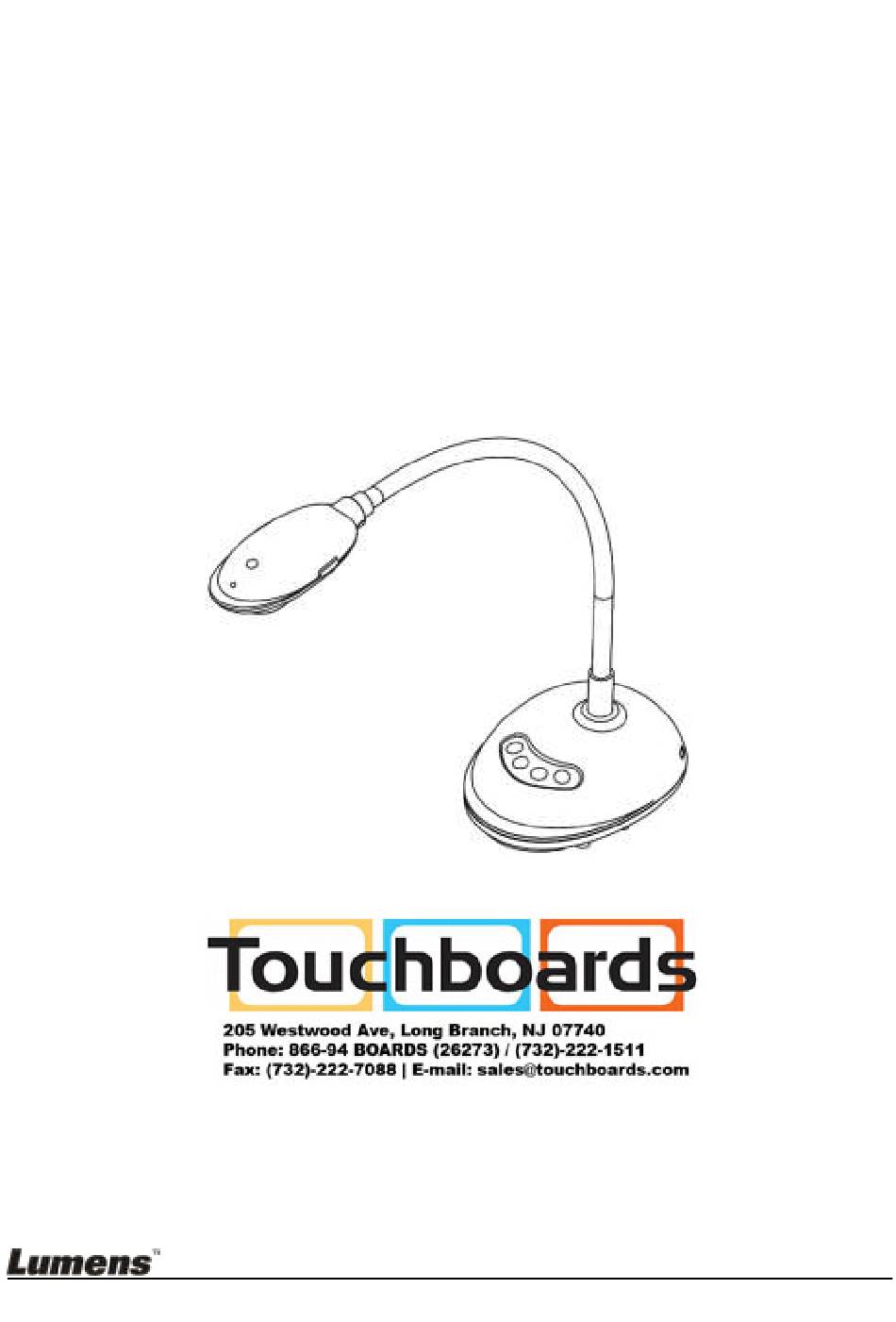

- Page 1 DC125 Document Camera User Manual - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.lumens.com.tw/goto.htm English...
-
Page 2: Table Of Contents
Table of Contents Copyright Information ..................4 Chapter 1 Safety Instructions ................ 5 Precautions ....................6 FCC Warning ....................6 EN55022 (CE Radiation) Warning ............... 6 Chapter 2 Package Contents ................. 7 Chapter 3 Product Overview ................. 8 Description of LED indicator ............... 8 Relative Operation Position .............. - Page 3 6.4.2 Annotation Tools ................22 6.4.3 Camera Settings ................24 6.4.4 Options ..................... 25 6.4.5 Time Lapse (Burst Settings) ............. 26 MAC User ..................27 6.5.1 Main menu ..................27 6.5.2 Annotation Tools ................28 6.5.3 Camera Settings ................30 6.5.4 Options .....................
- Page 4 7.17 Working with Other Applications ............39 Chapter 8 Descriptions of major functions - MAC User ......42 I would like to display a live image ........... 42 I would like to optimize the image ............ 42 I would like to use the auto focus ............. 42 I would like to adjust the brightness ..........
-
Page 5: Copyright Information
Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. -
Page 6: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the Document Camera: 1. Do not place Document Camera in tilted position. 2. Do not place the Document Camera on an unstable trolley, stand or table. 3. -
Page 7: Precautions
Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Note Risk of Electric Shock DO NOT OPEN Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. -
Page 8: Chapter 2 Package Contents
Chapter 2 Package Contents Instructions for DC125 Software Download Quick Start Guide and Installation (For download of other language versions, please visit Lumens website) 4-Steps Card USB Cable (Note to Teacher) English... -
Page 9: Chapter 3 Product Overview
Chapter 3 Product Overview 5. Gooseneck 1. LED indicator 4. AF button 2. Microphone 3. Lens 6. Control panel 3.1 Description of LED indicator 1. Enable the image, and LED indicator will light up 2. Display the image, and LED indicator will light up 3. -
Page 10: Relative Operation Position
3.2 Relative Operation Position 3.3 Correct use English... -
Page 11: Incorrect Use
3.4 Incorrect use English... -
Page 12: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System diagram USB Cable COMPUTER 4.2 Connecting to a computer See the picture above 4.3 Connecting to an Interactive Whiteboard (IWB) PROJECTOR USB Cable VGA Cable USB Cable COMPUTER English... -
Page 13: To Mount It At Desk
(H1) M4 screw (P = 0.7) 4.5 Installing application software After installing Lumens image software, you can use the following functions: Control the DC125. Capture and record images. Annotate the image, highlight important details and save it. - Page 14 4.5.2 Install with Windows XP/Vista Please download Ladibug™ software at Lumens website. Extract the file downloaded and then click [Ladibug] to install. The installation wizard will guide you through the process. Please follow the on-screen instructions and press [Next] for the next step.
- Page 15 Press [Yes] to create Ladibug™ shortcut on your desktop. Once the installation is completed, press [Finish] and restart the computer. English...
- Page 16 4.5.3 Install with MAC 1. Please download Ladibug™ software at Lumens website. 2. Extract the file downloaded and then click [Ladibug] to install. 3. Please finish the installation by following the on-screen instructions. 4. Click [Next]. English...
- Page 17 5. Click [Install]. 6. Enter the username and password, and then press [OK]. 7. Click [Continue Installation]. English...
- Page 18 8. Press [Restart] to finish the software installation. English...
-
Page 19: Chapter 5 Start Using
Chapter 5 Start Using <Note> Ensure that the USB cable is connected and Ladibug™ software is installed at first. Refer to Chapter 4 Installation and Connections in this user manual. FOCUS USB Cable icon to open Ladibug™ Software. 1. Double click on 2. -
Page 20: Chapter 6 Function Menu
Chapter 6 Function Menu 6.1 Function Descriptions of Control Panel Button <Remark> The below functions are listed alphabetically Name Function Descriptions Automatically adjust the image to have the best brightness and AUTO TUNE focusing performance. CAPTURE Capture the image to the computer. FOCUS AF Button. -
Page 21: Thumbnail (Saved Image Window)
6.3 Thumbnail (Saved image window) OFF/ON Thumbnail Thumbnail image of saved video or captured image (It will be displayed if it is a video) Save the video which has been edited Save as a new file Change the storage folder Delete a file Send captured image by e-mail ... -
Page 22: Windows User
6.4 WINDOWS User 6.4.1 Main menu Lamp On/Off Image Optimization Display live images Set up the recording format Open the main function menu, and press the right Brightness button to display the information about the software Adjust image size Open the mask mode Adjust the live image focus, Freeze the current image Photo/Text mode, etc. -
Page 23: Annotation Tools
6.4.2 Annotation Tools Icon Description Click open annotation Pointer tool tools. Laser tool Insert text Eraser (Clear marks of free-hand drawing tool) Draw a line Draw an ellipse Draw a rectangle Delete Free-hand drawing tool Back Next Clear all Select pen color Select the line width Select transparency... - Page 24 Right-click on the drawing object Clone: Make a duplicate copy of the drawing object Cut: Cut the drawing object Copy: Copy the drawing object Paste: Paste the drawing object Delete: Delete the drawing object Bring to Front: Bring the drawing object to the front Send to Back: Bring the drawing object to the back...
-
Page 25: Camera Settings
6.4.3 Camera Settings Control the live image via the Camera Settings interface. Click to open Camera Settings interface. 1. Auto Focus: Adjust the best focal length. 2. Hands free AF: Automatically adjust the best focal length. 3. Focus: Manually adjust focal length on an object. 4. -
Page 26: Options
6.4.4 Options Click to open Options Menu. 1. Factory Reset: Activate the factory reset. 2. Language: Set the language. 3. Video Compression Type: Set the recording format. <Note> Please select [Enable Video Compression] before setting. 4. Enable Audio Recorder: Enable the audio record device and set the audio source. -
Page 27: Time Lapse (Burst Settings)
6.4.5 Time Lapse (Burst Settings) Click to open Time Lapse menu. 1. Specify a file name. 2. Set the start time. 3. Set the capture interval and the capture time. English... -
Page 28: Mac User
6.5 MAC User 6.5.1 Main menu AUTO TUNE: LAMP: Automatically adjust the image to Turn on/off the lamp. have the best brightness and focusing performance. OPTIONS: PREVIEW: Select video compression method Display live images. and the audio source. Please refer to 6.5.4 Options for the setting screen. -
Page 29: Annotation Tools
6.5.2 Annotation Tools Click Icon Function Descriptions open annotation Pointer tool tools. Laser tool Insert text Eraser (Clear marks of free-hand drawing tool) Draw a line Draw an ellipse Draw a rectangle Delete Free-hand drawing tool Back Next Clear all Select pen color Select the line width Select transparency... - Page 30 ▼ Click “ ” icon on the top right of the drawing object Clone: Make a duplicate copy of the drawing object Cut: Cut the drawing object Copy: Copy the drawing object Paste: Paste the drawing object Delete: Delete the drawing object Bring to Front: Bring the drawing object to the front Send to Back: Bring the drawing object to...
-
Page 31: Camera Settings
6.5.3 Camera Settings Control the live image via the Camera Settings interface. Click to open Camera Settings interface. 1. Auto Focus: Adjust the best focal length. 2. Hands free AF: Automatically adjust the best focal length. 3. Focus: Manually adjust focal length on an object. 4. -
Page 32: Options
6.5.4 Options Click to open Options Menu. 1. Factory Reset: Activate the factory reset. 2. Video Compression Type: Set the recording format. . Enable Audio Recorder: Enable the audio record device and set the audio source. English... -
Page 33: Time Lapse (Burst Settings)
6.5.5 Time Lapse (Burst Settings) Click to open Time Lapse menu. 1. Specify a file name. 2. Set the start time. 3. Set the capture interval and the capture time. English... -
Page 34: Chapter 7 Descriptions Of Major Functions - Windows User
Chapter 7 Descriptions of major functions - Windows User I would like to display a live image 1. Press to display a live image. I would like to optimize the image 1. Press I would like to use the auto focus 1. -
Page 35: I Would Like To Capture Images
I would like to capture images 1. Click to capture images. [Note] The captured images will be displayed in the Thumbnail area. I would like to record videos 1. Press to open the recording tool. <Remark> Press to change settings including recording format and audio. -
Page 36: I Would Like To Freeze Images
[Note] The captured images will be displayed in the Thumbnail area. 7.10 I would like to freeze images 1. Press to freeze the current image on the screen. 7.11 I would like to annotate the live image 1. Press to show annotation tools. 2. -
Page 37: I Would Like To Add Text To The Live Image
<Remark> You can click to capture images if they are live images. You can click [SAVE] or [SAVE AS] to save the files if they are image files opened from the Thumbnail. <Remark> You can add annotation when recording but cannot save it. 7.12 I would like to add text to the live image 1. -
Page 38: I Would Like To Adjust The Drawing Object
6. Click the object and select the transparency. 7. Click the object and select the font and font size. <Remark> You can click to capture images if they are live images. You can click [SAVE] or [SAVE AS] to save files if they are image files. -
Page 39: I Would Like To Use The Emphasizing Mode
7.15 I would like to use the emphasizing mode 1. Click to open emphasizing mode. 2. You can use the mouse to directly modify the length and the width of the block. 3. Click to modify the transparency of the block. 4. -
Page 40: Working With Other Applications
7.17 Working with Other Applications 7.17.1 I would like to insert a photo in MS-Paint <Remark> Support Windows XP Operation System only. 1. Click [File/From Scanner or Camera] in MS-Paint as shown in the bottom left figure. 2. Click [Get Picture] will capture the photos of live images and insert the files in use shown as top right figure. - Page 41 3. Click [Get Picture]. It will capture the photo of live image. 7.17.3 I would like to change the setting of the DC125 and then capture a photo in MS-Word <Remark> For Windows Office 2003 or later versions, please use the function with OneNote.
- Page 42 3. A window showing a live image (see below) will be displayed. 4. Press [Setting]. When the Camera Settings window pops up, the live image can be adjusted. 5. Press [Capture] to capture images in MS-Word. 6. Press [Cancel] to exit. English...
-
Page 43: Chapter 8 Descriptions Of Major Functions - Mac User
Chapter 8 Descriptions of major functions - MAC User I would like to display a live image Click to display the live image. I would like to optimize the image Press I would like to use the auto focus 1. -
Page 44: I Would Like To Capture Images
I would like to capture images Click to capture images. [Note] The captured images will be displayed in the Thumbnail area. I would like to capture images continuously Click to open burst mode setting. Click [OK] after setting. <Note>... -
Page 45: I Would Like To Add Textual Annotation To Images
Mark or annotate the displayed image. <Remark> You can click to capture images if they are live images. You can click [SAVE] or [SAVE AS] to save the files if they are image files opened from the Thumbnail. <Remark> You can add annotation when recording but cannot save it. 8.11 I would like to add textual annotation to images ... -
Page 46: I Would Like To Record Videos
8.12 I would like to record videos Press to open the recording tool. <Note> Click to open the setting window of video format and audio source. Please refer to 6.5.4 Options for more information. Click to start recording. ... -
Page 47: I Would Like To Manage Saved Image Files
8.15 I would like to manage saved image files 8.15.1 Save as a new file First, double-click the picture or image file in the “Thumbnail” window on the left side of the screen. to display the “Save As” window. Click [Save as] ... - Page 48 8.15.2 Change the location of file access , the “Open” window will be displayed. Click [Directory] After selecting the location of the folder, click [Choose] to change the folder to save pictures next time. 8.15.3 Delete a file ...
-
Page 49: Chapter 9 Connecting To Microscope
Chapter 9 Connecting to Microscope 1 Mount the microscope adapter onto the microscope. <Note> Please choose an appropriate microscope adapter. Microscope adapter accessories are applicable to eyepieces of Ø 28 mm. 2 Connect the lens with the microscope adaptor. 3 If the image is not clear 3.1. -
Page 50: Chapter 10 Troubleshooting
Chapter 10 Troubleshooting This chapter describes problems you may encounter while using DC125. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still exists, please contact our distributors or service center.
