- Page 1 DC158 Visual Presenter Quick Start Guide [Important] To download quick start guide, multilingual manuals, software, and drivers, please visit Lumens web site at http://www.lumens.com.tw/goto.htm English...
-
Page 2: Package Content
1. Package Content DC158 Quick Start Guide User Manual (To download this manual in other languages, visit Lumens website.) VGA Cable Download Card Remote Control USB Cable C-Video Cable Power Cord Appearance may vary depending on country/region Presenter Protector Microscope Adapter... -
Page 3: System Diagram

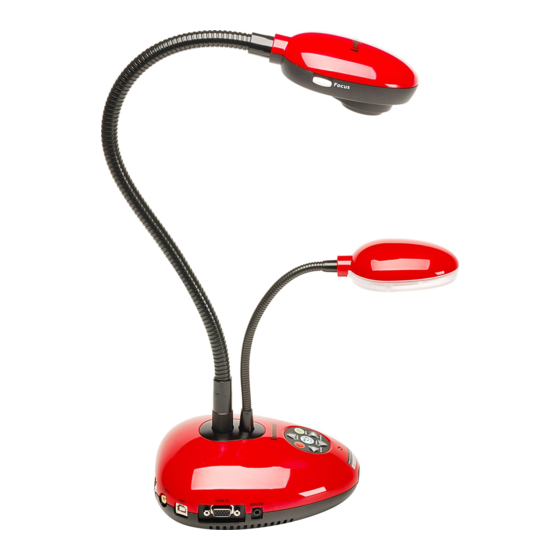

2. System Diagram Monitor Television Projector English... - Page 4 3. Product Overview 1. Gooseneck 2 Lamp 3. Control panel 4. LED indicator 5. Remote sensor 6. Lens 7. DIP switch (Bottom) English...
-
Page 5: Connecting Devices
4.2 Step 2: Connecting projector with other hardware devices 4.2.1 Connecting to a Projector or Monitor Connect the VGA cable to the VGA OUT port on the DC158 and to the VGA IN port on the projector or monitor. 4.2.2 Connecting to a TV 1. - Page 6 3. DIP switch settings will not availabe until the DC158 has been restarted. 4.2.3 Connecting to a Computer Connecting to a computer through USB Connect the USB cable to the USB port on the DC158 and the USB port on the computer. Next, download the queue program at ™...
- Page 7 Connecting to a computer through RS-232 Connect the RS-232 adapter (Optional) to the RS-232 port on the DC158 and the RS-232 port on the computer. 5. Start Using the DC158 5.1 Powering on the DC158 Control Panel Remote Control When using the remote control, aim at the remote sensor at the DC158 and press the power button.
