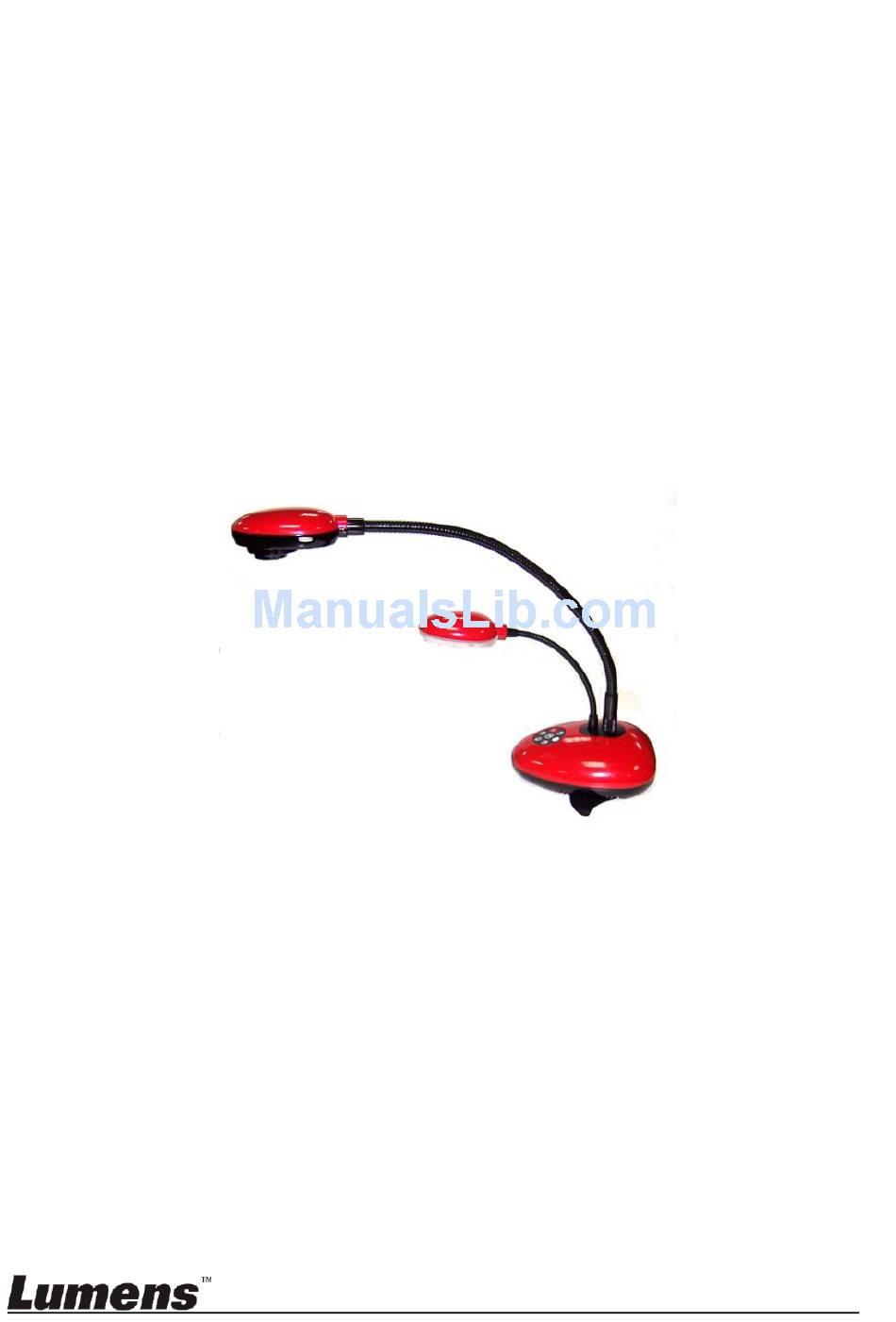

- Page 1 DC153 Digital Visualizer Quick Start Guide - English English - 0...

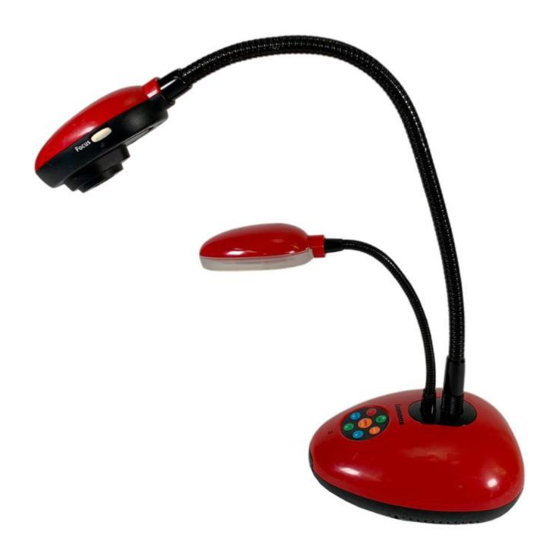

- Page 2 1. Package Content (13 Items) Quick Start Guide & DC153 & Remote Soft Bag (Big, Small) User Manual & CD Power Cord VGA Cable DVI Adapter C-Video Cable USB Cable RS232 Adapter 2. Product Overview 1. Auto Focus Gooseneck 2. Lens 4.
- Page 3 3. I/O Connection 3.1 Connecting VGA out to Monitor or Projector VAG Out Monitor Projector 3.2 Connecting DVI out to Monitor or Projector DVI Out Monitor Projector 3.3 Connecting C-Video to TV C-Video DIP Switch (PAL) DIP Switch (NTSC) 【Notice】 NTSC Setting：USA、Taiwan、...
- Page 4 No VGA output once C-Video output is turn on 3.5 Connecting USB to Computer Connect to USB port then install the supplied View II View II or See II program Notebook 【Notice】Please refer to View II View II or See II installation.
- Page 5 4. Start to use 4.1 Turn on the Digital Visualizer Remote Keypad 4.2 Auto-adjust the optimum image Remote English - 4...
- Page 6 5. Major Functions 5.1 Select Input Source： The default input source is set as "Digital Visualizer", press 『Source』to switch. 5.2 Zoom in / out ： 5.3 Auto Focus Goosehead English - 5...
- Page 7 5.4 Brightness Adjustment： 5.5 Capture & Play Image： Capture Live Image or Play the captured image 5.6 OSD Menu： * More detail functions of full Control Menu (OSD Menu), please read the user manual. English - 6...
- Page 8 * Please visit our web site http://www.lumens.com.tw for the most updated English - 7...
