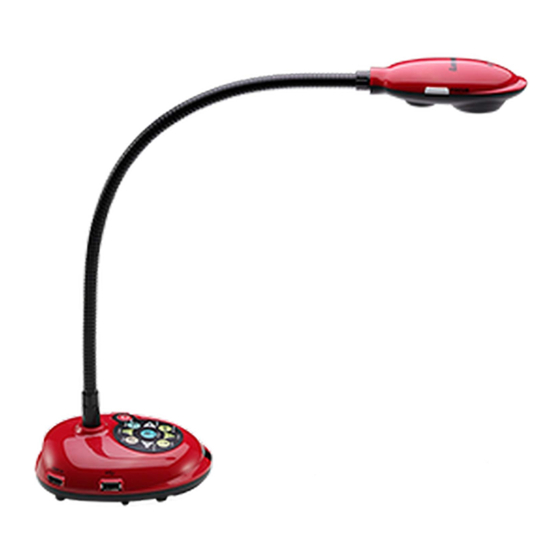

Summary of Contents for Lumens DC172
- Page 1 DC172 4K Document Camera User Manual - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens https://www.MyLumens.com/support...
-
Page 2: Table Of Contents
Table of Contents Copyright Information ..................2 Chapter 1 Safety Instructions ................2 Chapter 2 Package Contents ................4 Chapter 3 Product Overview ................5 Diagram of the relative position between a user and device ..... 6 Chapter 4 Installation and Connections ............7 System diagram ................. -
Page 3: Copyright Information
Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. - Page 4 Precautions This symbol indicates that this This symbol indicates that there equipment may contain are important operating and dangerous voltage which could maintenance instructions in this cause electric shock. Do not User Manual with this unit. remove the cover (or back). No user-serviceable parts inside.
-
Page 5: Chapter 2 Package Contents
Chapter 2 Package Contents DC172 Quick Start Guide HDMI cable (For download of other language versions, please visit Lumens website) USB cable Power Cord Power Adapter Appearance may vary depending on country/region Microscope Adapter Remote Control English... -
Page 6: Chapter 3 Product Overview
Chapter 3 Product Overview LED Indicator Auto Focus button Built-in microphone Gooseneck Control panel Remote sensor Lens LED lamp DIP Switch Setting (Bottom) English... -
Page 7: Diagram Of The Relative Position Between A User And Device
3.1 Diagram of the relative position between a user and device English... -
Page 8: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System diagram Power Supply Display/Projector Computer USB disk English... -
Page 9: Installing Application Software
4.2 Installing Application Software The application software installed on the computer enables you to: Control the DC172. Capture and record images. Annotate the image, highlight important details and save it. Support the full screen function. Ladibug™ 4K software user manual [Remark] Please refer to installation steps and software operation. -
Page 10: Chapter 5 Start Using
Chapter 5 Start Using 1. Place an object to be displayed under the camera. 2. Turn on Power 3. Adjust the gooseneck and lens to the appropriate positions. 4. Press [AUTO TUNE] button to optimize the image. You are ready to teach/present. [Remark] Each time the camera head is moved, press the [FOCUS] button to refocus the lens. -
Page 11: Chapter 6 Introduction Of Panel, Remote Control And Setting Menu
Chapter 6 Introduction of Panel, Remote Control and Setting Menu 6.1 Functions of control panel and remote control Icon Name Function Descriptions Operation Remote Turn on and off. * Press and hold for 5 ~ 10 control/Co Power seconds to turn off. ntrol panel Remote ,... - Page 12 Freeze the current image to remain Remote FREEZE temporarily on the screen. Press again to Control defreeze. Remote LAMP Lamp mode toggle switch. control/Co ntrol panel Remote MASK Activate Mask/Spotlight mode. Control Remote MENU Activate the setting menu/exit the menu. control/Co ntrol panel Remote...
-
Page 13: Setting Menu
6.2 Setting Menu 6.2.1 Main menu [Remark] Press [MENU] on the remote control or control panel to display the setting menu. Auto Tune Slide Show Automatically adjust the image Show the photos or videos to have the best brightness and stored in the USB disk (priority) focusing performance. - Page 14 Brightness Photo/Text Adjust the brightness of the Select Photo/Text/Gray Mode. image. Mask Annotation Activate the mask mode. Annotate or mark the image Zoom Mode Increase or decrease the image Select image mode. size. Spotlight Exit Activate the spotlight mode. Exit the setting menu 6.2.2 Setting menu Level...
- Page 15 Level Level Major Function Descriptions Minor Items Items Delete all images in the USB disk (priority) or internal Delete All memory. Format Format the USB disk (priority) or internal memory. Regardless of outside environment, the machine will Auto Exposure adjust the brightness to the optimal condition. Auto White Regardless of outside light or color, the machine will adjust the color to the optimal condition.
- Page 16 6.2.3 Mask mode setting menu Function Items Function Descriptions Live image Press [ENTER] to return to live image. Use the left and right arrow keys to adjust the Transparency transparency of the mask. Use the left and right arrow keys to select the step of Step the mask.
- Page 17 6.2.6 Annotation Tools After connecting the mouse via USB, right-click to activate the drawing function of the setting menu When the mouse stays at the right side of the screen, the mouse annotation menu can be activated <Remark> You can only choose either USB screen or mouse annotation ...
-
Page 18: Chapter 7 Descriptions Of Major Functions
1. Press [AUTO TUNE] for the best brightness and focusing performance. I would like to switch image sources Live image is the default image source. Press [SOURCE] on the remote control or control panel to have DC172 switch among the following images sources: 1. Live image (default). 2. HDMI IN. -
Page 19: I Would Like To Record Images
7.5 I would like to record images [Note] Connect USB disk to DC172 4K to start recording images. 7.5.1 Recording motion images [Remark] You may not be able to capture or record images when [Capture Image] mode is set to [Disable]. -
Page 20: I Would Like To Compare Images (Compare Live Images With Stored Image Files (Pip))
I would like to compare images (compare live images with stored image files (PIP)) This function will compare and contrast a live image with a stored image. Remote control: 即時影像 儲存影像 1. Press [Playback] to access the Playback image thumbnails, and select the files to be compared 2. -
Page 21: Chapter 8 Connecting To Microscope
2 The lens of DC172 connects with the microscope adapter 3 If the image is not clear 3.1. Please adjust the focus of microscope. 3.2. Please press the [FOCUS] button on either side of the DC172 lens to execute the auto focus. English... -
Page 22: Chapter 9 Dip Switch Setting
Chapter 9 DIP Switch Setting 1. Description of DIP Function Descriptions DIP 1 & DIP 2 Output Resolution DIP3 OFF (Normal mode): 30 fps, applicable to general scene. ON (High-speed mode): 60 fps, applicable to support rapidly changing scene. (Only applicable to 1080P and 720P, but not 4K). ：60Hz DIP4 ON：50Hz... -
Page 23: Chapter 10 Troubleshooting
Chapter 10 Troubleshooting This chapter describes problems you may encounter while using DC172. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center. - Page 24 The data in the USB The supported format of the disk is exFAT. It is disk cannot be read recommended to use DC172 to format the disk before it is used. The USB disk with the capacity of 4 G and...
-
Page 25: Supplier's Declaration Of Conformity 47 Cfr § 2.1077 Compliance Information
Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Manufacturer：Lumens Digital Optics Inc. Product Name：DC172 Model Number：4K Document Camera Responsible Party – U.S. Contact Information Supplier：Lumens Integration, Inc. 4116 Clipper Court, Fremont, CA 94538, United States e-mail ：support@mylumens.com FCC Compliance Statement This device complies with Part 15 of the FCC Rules.
