I I I . Y O U R T R A V E L S C O O T E R
TILLER CONSOLE FUSE
The fuse located under the battery
pack protects the tiller console elec-
tronics. See figure 8. In the event
any component of the tiller console
is not responding, check this fuse.
See VIII. "Basic Troubleshooting"
for fuse replacement instructions.
OFF-BOARD
CHARGER
The off-board battery charger,
when plugged into the charger
power lead receptacle (located on
the battery pack) and a standard
electrical outlet, charges the Travel
Scooter's batteries. See figure 9.
SHROUD PANELS
You can change the colour of your
Travel Scooter by removing the
coloured plastic shroud panel pieces
and replacing them with one of the
other supplied sets. The panels are
held in place by a hook and loop
reusable fastener.
To remove the shroud panel
pieces:
1. Use your finger to locate the
push hole behind each shroud
piece.
2. Push through the hole to separate the piece from the Travel Scooter. See figures 10 and 11.
To reinstall the shroud pieces, place each piece in its appropriate location and push with slight pressure
to secure the reusable fastener.
NOTE: When installing the front and rear fender panels, make sure the tab at the bottom of each panel
is inserted into the tab opening before securing the panel. See figure 10 and 11.
Elite Traveller Plus
BATTERY

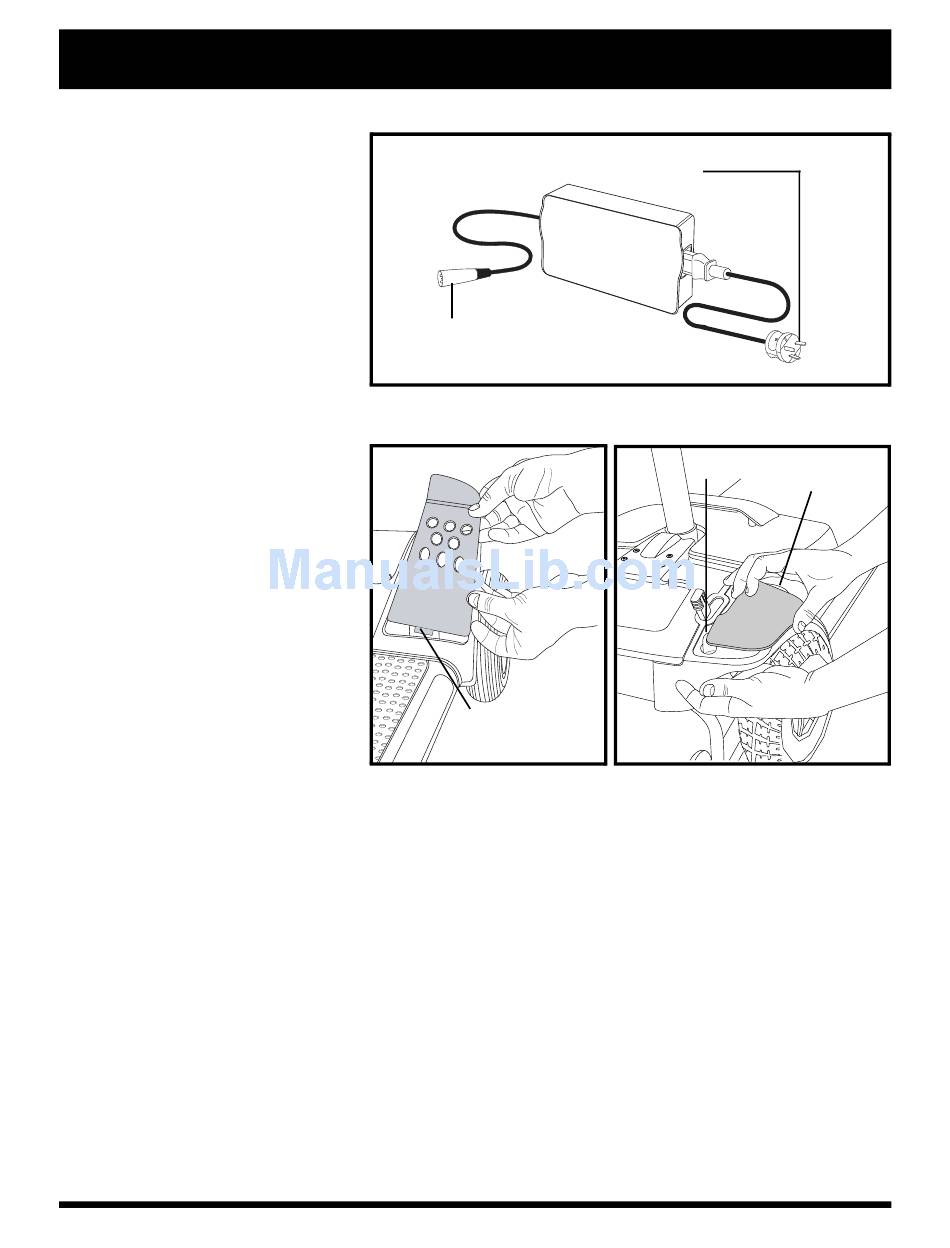

Figure 9. Off-board Battery Charger
Figure 10. Front Fender Panel Figure 11. Rear Fender Panel
www.pridemobility.com
PLUGS INTO STANDARD
ELECTRICAL OUTLET
PLUGS INTO BATTERY PACK
TAB
PUSH HOLE
TAB
21
