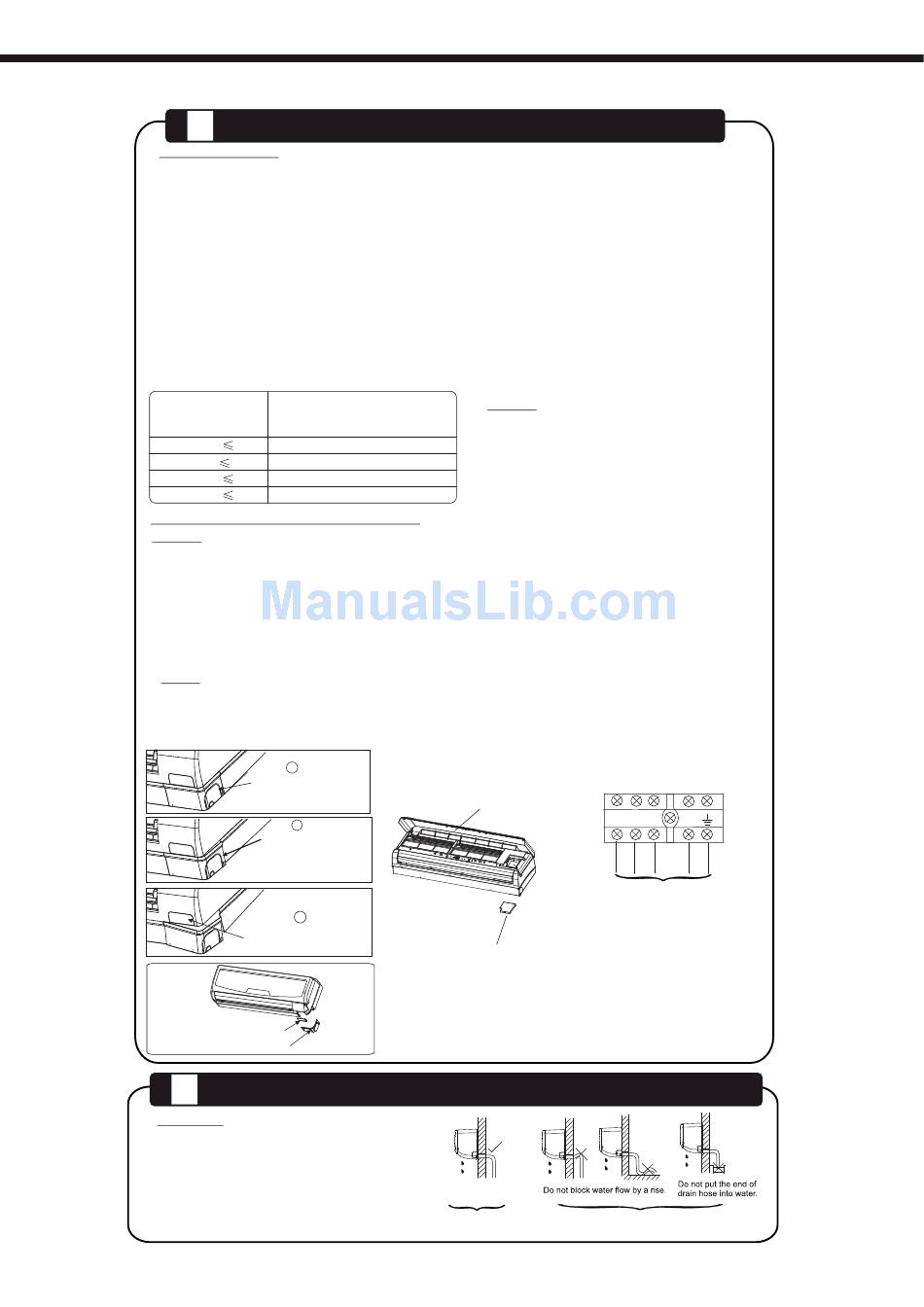

CONNECT THE CABLE TO THE INDOOR UNIT
Electrical work
Electric safety regulations for the initial Installation
1. If there is serious safety problem about the power supply, the technicians should refuse to install
the air conditioner and explain to the client until the problem is solved.
2. Power voltage should be in the range of 90%~110%of rated voltage.
3. The surge protector and main power switch with a 1.5 times capacity of Max. Current of the
unit should be installed in power circuit.
4. Ensure the air conditioner is grounded well.
5. According to the attached Electrical Connection Diagram located on the panel of the outdoor unit
to connect the wire.
6. All wiring must comply with local and national electrical codes and be installed by qualified and
skilled electricians.
7.
An all-pole disconnection device which has at least 3mm separation distance in all pole and a residual
current device(RCD) with the rating of not exceeding 30mA shall be incorporated in the fixed wiring
according to the national rule.
8. An individual branch circuit and single receptacle used only for this air conditioner must be
available. See the following table for suggested wire sizes and fuse specifications:
Minimum nor minal cross-sectional area of conductors:
Rated cur rent
Nominal cross-sectional
of appliance
(A)
>3 and
6
>6 and
10
>10 and
16
>16 and
25
Connect the cable to the indoor unit
NOTE:
Before performing any electrical work, turn off the main power to the system.
1. For model A, first remove the front cover on chassis by loosening the screw, then remove the front
cover of frame as shown below. For model B, just open the panel up, then remove the electrical control
box cover by loosening the screw.
3. The indoor power cord type is H05VV-F or H05V2V2-F, the outdoor power cord and interconnected
cord type is H07RN-F. Ensure the colour of wires of outdoor unit and the terminal Nos. are the same
,
to the indoor s respectively.
5. Wrap those cables not connected with terminals with insulation tapes, so that they will not touch
any electrical components. Secure the cable onto the control board with the cord clamp.
NOTE: If used as MONO unit, for the standby control needs, the cross section area of cable connected
to L(1), 1, 2(N) must be sufficient for the maximum system current. The maximum system current is
equal to the sum of indoor unit and outdoor unit rated current. If used as MULTI unit, L(1) on the terminal
block does not need to be connected.
Model A
1
Hold here by hand
and loosen the screw.
2
Press here to disengage
the hook from the unit,
pull it downwards to
remove the cover
3
Remove the front panel
of on the frame
Front cover of frame
Front cover on chassis
4
CONNECTIVE PIPE AND DRAINAGE INSTALLATION
Drainage
1. Run the drain hose sloping downward.
Do not install the drain hose as illustrated
in wrong figures.
2. When connecting extension drain hose,
insulate the connecting part of extension
drain hose with a shield pipe, do not let
the drain hose slack.
INDOOR UNIT INSTALLATION
NOTE:
area
The cable size and the current of thefuse
(mm2)
or switch are determined by the maximum
0.75
current indicated on the nameplate which
1
located on the side panel of the unit.
1.5
Please refer to the nameplate before
selecting the cable, fuse and switch.
2.5
Model B
Panel
Electrical conrol
box cover
Right
18
Terminal block ofi ndoor unit
L(1)
1
2(N)
S
To outdoor unit
Wrong
