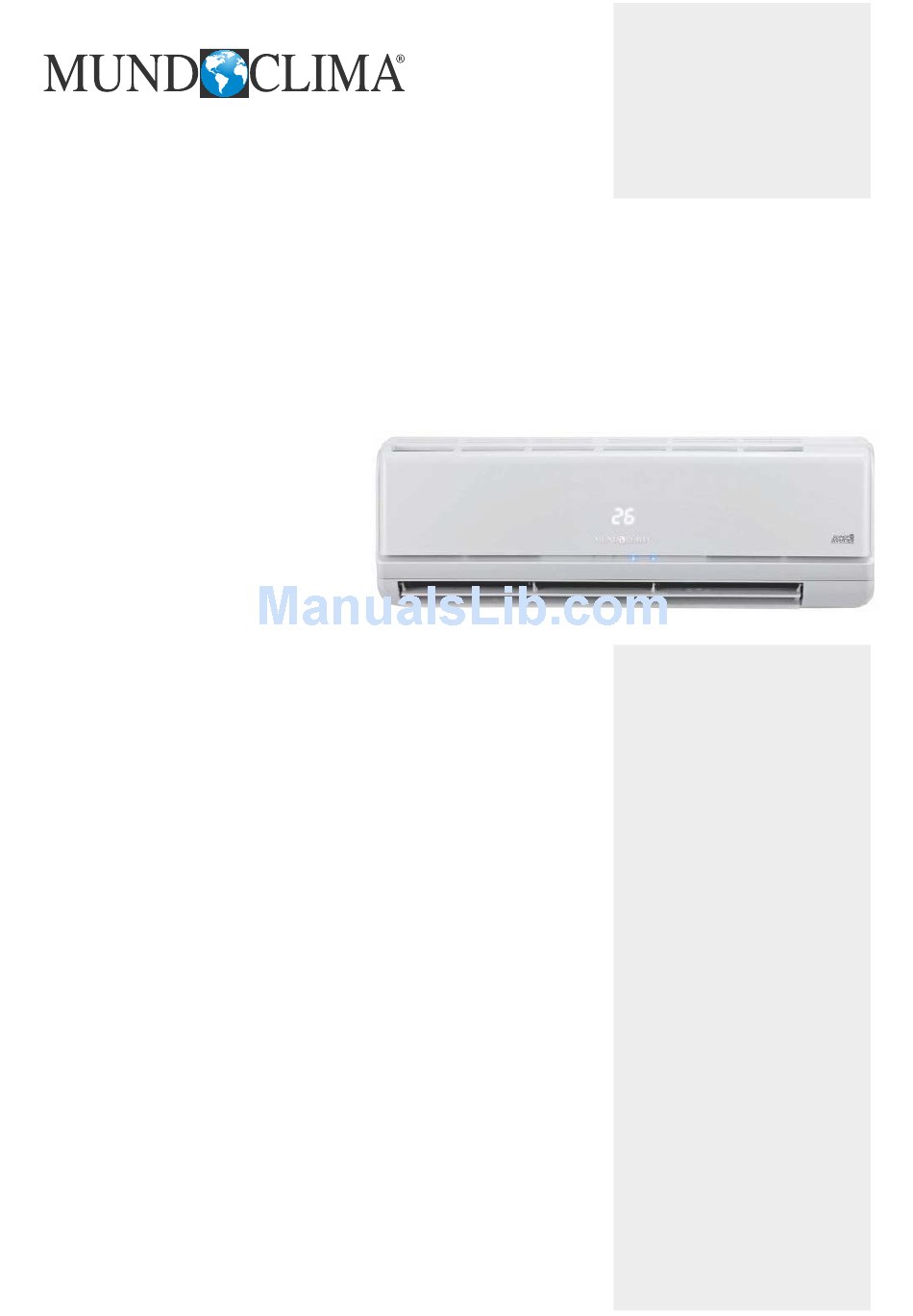

- Page 1 INVERTER SERIES H3 User and installation manual MUPR-H3 CL 20 801 a CL 20 804 English...
-
Page 2: Table Of Contents
INDEX: USER MANUAL: General information......................2 Safety precautions......................3 Operating instructions......................5 Detector and troubleshooting..................12 INSTALLATION MANUAL: Installation........................15 Indoor unit installation....................16 Outdoor unit installation....................21 REMOTE CONTROLLER: Remote setup........................24 Technical specifications of the remote controller ............25 Operation of the remote controller.................29 Deshumidifier of the remote controller................30... -
Page 3: User Manual
USER´S MANUAL Before using your air conditioner, please read this manual carefully and keep it for future reference.. INVERTER SPLIT-TYPE ROOM AIR CONDITIONER The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. -
Page 4: General Information
GENERAL INFORMATION CAUTION Contact an authorised service technician for repair or maintenance of this unit. Contact the authinstaller for installation of this unit. This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury. - Page 6 SAFETY PRECAUTIONS CAUTION Do not clean the air Ventilate the room well When the air filter is to be conditioner with water. when used together removed, do not touch the with a stove, etc. metal parts of the unit. Water may enter the unit and An oxygen shortage It may cause an injury.
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Parts names Indoor unit Indoor unit 1. Front panel 2. Air inlet 3. Air filter 4. Air outlet Horizontal air flow grille Vertical air flow louver 7. Display panel 8. Remote controller Outdoor unit 9. Connecting pipe, drain hose Outdoor unit 10. - Page 8 OPERATING INSTRUCTIONS NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Instruction>> packed with the unit for details. Operating temperature Mode Cooling operation Heating operation Drying operation Temperature Room temperature Outdoor temperature -15 C~50 C/5 F~122 F (For the models with low temperature cooling system) CAUTION:...
- Page 9 OPERATING INSTRUCTIONS Airflow direction control Adjust the air flow direction properly otherwise, it might cause discomfort or cause uneven room temperatures. Adjust the horizontal louver using the remote controller. Adjust the vertical louver manually. Range To set the vertical air flow(Up--Down) direction Perform this function while the unit is in operation.
- Page 10 OPERATING INSTRUCTIONS How the air conditioner works AUTO operation When you set the air conditioner in AUTO mode, it will SLEEP operation automatically select cooling, heating(cooling/heating 7 hours timer off models only), or fan only operation depending on what temperature you have selected and the room temperature.
- Page 11 OPERATING INSTRUCTIONS Care and maintenance Cleaning the Grille, Case and Remote Controller Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. NOTE: Supply power must be disconnectd before cleaning the indoor unit. CAUTIONS A cloth dampened with cold water may be used on the indoor unit if it is very dirty.
- Page 12 OPERATING INSTRUCTIONS 4. Remove the Air Freshening Filter from its support frame (on some models). (The optional filter include :Plasma Dust Collector/ Silver Ion filter /Bio filter /Vitamin C filter/3M air purifier filter, etc. The removing and installation methods are slightly different, see the pictures marked on the left.
- Page 13 OPERATING INSTRUCTIONS The following events may occur during normal operation. Protection of the air conditioner. Compressor protection The compressor can't restart for 3 minutes after it stops. Anti-cold air (Cooling and heating models only) The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached.
-
Page 14: Detector And Troubleshooting
DETECTOR AND TROUBLESHOOTING 7. Dripping water may generate on the surface of the indoor unit when cooling in a high relatively humidity (relative humidity higher than 80%). Adjust the horizontal louver to the maximum air outlet position and select HIGH fan speed. Heating mode (For cooling and heating models only) The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit during heating operation. - Page 15 DETECTOR AND TROUBLESHOOTING Troubleshooting Tips If one of the following faults occurs, stop the air conditioner immediately, disconnect the power and then connect it in again. If the problem still exists, disconnect the power and contact the nearest customer service center. OPERATION/RUN indicator or other indicators continue flashing.
-
Page 16: Installation Manual
INSTALLATION MANUAL ROOM AIR CONDITIONER (Split Wall-Mounted Type) -
Page 17: Installation
INSTALLATION INSTALLATION PRECAUTIONS Please read this installation manual carefully before operating the unit to ensure correct installation. If the power cord is damaged, replacement work shall be performed by authorised personnel only. Installation work must be performed in accordance with the national wiring standards by authorised personnel only. - Page 18 OUTDOOR UNIT INSTALLATION SELECT THE BEST LOCATION Indoor unit There should not be any heat source or stream near the unit. There should not be any obstacles blocking the air circulation. A place where air circulation in the room is good. A palce where drainage can be easily done.
- Page 19 OUTDOOR UNIT INSTALLATION INSTALLATION PLATE MOUNTING NOTE: The mounting wall is strong and solid enough to prevent it from the vibration. Fit the Installation Plate 1. Fit the installation plate horizontally on structural parts of the wall with spaces around the installation plate. 2.
-
Page 20: Indoor Unit Installation
INDOOR UNIT INSTALLATION CONNECT THE CABLE TO THE INDOOR UNIT Electrical work Electric safety regulations for the initial Installation 1. If there is serious safety problem about the power supply, the technicians should refuse to install the air conditioner and explain to the client until the problem is solved. 2. - Page 21 INDOOR UNIT INSTALLATION Connective pipe installation 1. For the left-hand and right-hand piping, remove the pipe cover from the side panel. 2. For the rear-right-hand and rear-left-hand piping, install the piping as shown. 3. Bundle the tubing, connecting cable, and drain hose with tape securely, evenly as shown in Figure on the right.
-
Page 22: Outdoor Unit Installation
OUTDOOR UNIT INSTALLATION OUTDOOR INSALLATION PRECAUTION Install the outdoor unit on a rigid base to prevent increasing noise level and vibration. Determine the air outlet direction where the discharged air is not blocked. In the case that the installation place is exposed to strong wind such as a seaside, make sure the fan operating properly by putting the unit lengthwise along the wall or using a dust or shield plates. - Page 23 OUTDOOR UNIT INSTALLATION CONNECT THE CABLE TO THE OUTDOOR UNIT 1. Remove the electrical control board cover from the outdoor unit by loosening the screw. 2. Connect the connective cables to the terminals as identified with their respective matched numbers on the terminal block of indoor and outdoor units.
-
Page 24: Remote Controller
OUTDOOR UNIT INSTALLATION 2. When using the Vacuum Pump 1. Completely tighten the flare nuts, A, B, C, D, connect the manifold valve charge hose to a charge port of the Manifold valve packed valve on the gas pipe side. Compound meter Pressure gauge 2. -
Page 25: Remote Controller
REMOTE CONTROLLER Please read this Owner's Manual carefully before operation. Save this manual in a safe place for future reference. -
Page 26: Remote Setup
REMOTE SETUP 3. Set the starting & stopping time 3.1 Push the TIMER ON button, the remote controller will show TIMER ON, the last set time for START operation and the signal "h" will be shown on the DIGITAL display area. You are now ready to readjust the TIMER ON to start the operation. - Page 27 TECHNICAL SPECIFICATIONS OF REMOTE CONTROLLER Remote Controller Specification Model R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E, RG51A/(C)E, RG51M3/(C)E, RG51M3/BG(C)E, RG51M8/(C)E,RG51M9/(C)E. Rated Voltage 3.0V(Alkaline dry batteries LR03 2) Lowest Voltage of CPU 2.0V Emitting Signal 8m (when using 3.0 voltage, Transmission Distance it Gets 11m) Environment -5 C 60 C Performance Features...
- Page 28 TECHNICAL SPECIFICATIONS OF REMOTE CONTROLLER TEMP Button Push this button to decrease the indoor temperature setting. TEMP Button Push this button to increase the indoor temperature setting . MODE Selection Button: Each time the button is pressed, the operation mode is shifted in the direction of the arrow: AUTO COOL HEAT...
- Page 29 TECHNICAL SPECIFICATIONS OF REMOTE CONTROLLER TIMER OFF Button: Press this button to initiate the auto-off time sequence. Each press will increase the auto-timed setting in 30 minutes increments. When the setting time displays 10, each press will increase the auto-timed setting 60 minutes increments. To cancel the auto-timed program, simply adjust the auto-off time to 0.0.
- Page 30 TECHNICAL SPECIFICATIONS OF REMOTE CONTROLLER ON/OFF Indicator: This symbol appears when the unit is turned on by the remote controller, and disappear when the unit is turned off. OPERATION MODE Indicator: When press the MODE button, it shows the current operating mode -- AUTO COOL HEAT (Cooling only model without) mode.
-
Page 31: Operation Of The Remote Controller
OPERATION OF THE REMOTE CONTROLLER AUTOMATIC OPERATION 1. Use the MODE button to select AUTO. 2. Push the TEMP button to set the desired room temperature . The most comfortable temperature settings are between 21 C to 28 C. 3. Push the ON/OFF button to start the air conditioner. The OPE- RATION lamp on the display panel of the indoor unit lights. - Page 32 DEHUMIDIFIER OF THE REMOTE CONTROLLER DRY Operation 1. Push the MODE button to select DRY. 2. Push the TEMP button to set the desired temperature from 17 C to 30 C. 3. Push the ON/OFF button, the OPERATION lamp lights and the air conditioner starts to operate in DRY mode at LOW fan speed.
- Page 33 ASK FOR MORE INFORMATION: Phone: 93 446 27 80 - Fax: 93 456 90 32 eMail: mundoclima@salvadorescoda.com TECHNICAL ASSISTANCE: Phone: 93 652 53 57 - Fax: 93 635 45 08...
