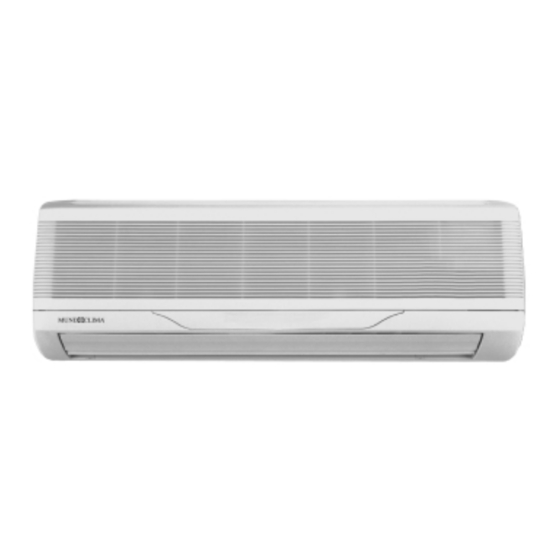

- Page 1 MUND CLIMA ® Series 2000 Wall-mounted Split COOL ONLY: MUP-07 CN MUP-09 CN MUP-12 CN MUP-16 CN HEAT PUMP: MUP-07 HN MUP-09 HN MUP-12 HN MUP-16 HN User´s manual...
-
Page 2: The Instructions Before Use
The instructions before use WARNING The power plug must be in- Don’t pull out the power Never splice the power cord serted tightly. plug during operating. or use an extended cord. Otherwise, it can cause an It can cause an electric shock It can cause overheating or electric shock, overheating or or fire. - Page 3 There must be electricity leak- Be sure to pull out the power When cleaning, it is neces- age protection switch of enough plug when not using the Air sary to stop driving and turn power capacity and air switch in Conditioner for a longtime.
-
Page 4: Name And Function Of Each Part
NAME AND FUNCTION OF EACH PART Indoor unit Outdoor unit – 3 –... -
Page 5: Name And Function-Remote Control
Remote control operation procedure Name and Function-Remote control Note: • Be sure that there are no obstructions. • The remote control signal can be received at a distance of up to about 10m. • Don’t drop or throw the remote control. •... -
Page 6: Name And Function-Remote Control. (Remove The Cover)
Name and Function-Remote control. (Remove the cover) Note: This type of remote controller is a kind of new current controller. some buttons of the controller which are not available to this Air conditioner will not be described below. Liquid crystal displayer It shows all set contents. -
Page 7: Cool Mode Operation Procedure
COOL mode operation procedure • According to difference between room temp. and set temp., microcomputer can control cooling on or not. • If room temp. is higher than set temp., compressor runs at COOL mode. • If room temp. is lower than set temp., compressor stops and only indoor fan motor runs. -
Page 8: Heat Mode Operation Procedure
HEAT mode operation procedure • If room temp. is lower than set temp., compressor runs at HEAT mode; • If room temp. is higher than set temp., compressor and outdoor fan mortor stop, only indoor fan mortor runs. • SET TEMP. should be in range of 16°C to 30°C. ¡æ... -
Page 9: Dry Mode Operation Procedure
DRY mode operation procedure • If room temp. is lower than set temp., compressor ,outdoor and indoor fan mortor stop. If room temp. is between ±2°C of set temp., air conditioner is drying. If room temp. is higher than set temp., it’s at COOL mode. •... -
Page 10: Auto Mode Operation Procedure
AUTO mode operation procedure • At AUTO mode operation, standard SET TEMP. is 25°C for COOL mode and 20°C ¡æ for HEAT mode. 1.Plug in,Press 1/0 button, then air conditioner is turned on. 2.According to room temp., micro- computer can automatically set operation ¡¢... -
Page 11: Timer Mode Operation Procedure
TIMER mode operation procedure At stopping,press TIME ON button, set ON TIME in range of 0 to 24 hour to start the unit automatically. At operating,press TIMER OFF button.set OFF TIME in range of 0 to 24 hour to stop the unit automatically. -
Page 12: Sleep Mode Operation Procedure
SLEEP mode operation procedure • When the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would increase 1°C in 1 hour and 2°C in 2 hour. Indoor fan motor runs at low speed. • When the unit is heating , if SLEEP operation is set, SET TEMP. would decrease 1°C, in 1 hour and 2°C in 2 hours. -
Page 13: How To Install Batteries
How to install batteries 1. Remove the cover from the back of the remote control. 2. Insert the two batteries ( Two AAA dry - cell batteries ) and press button “ACL”. 3. Re - attach the cover. NOTE: • Don’t confuse the new and worn or different batteries. -
Page 14: User Notices
USER NOTICES Select the most appropriate temperature. It can The air flow direction can be adjusted appro- preclude the electricity wasted. priately. The louvers can be adjusted downward at heating operation, and upward at cooling operation. Don’t leave windows and doors open while Don’t blow the wind to animals and plants directly. -
Page 15: Care And Maintenance
Care and Maintenance CAUTION Turn power off and pull out the power plug before cleaning air conditioner. Don’t sprinkle water on the indoor unit and the outdoor unit for cleaning. Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleaner. Cleaning surface panel 1. -
Page 16: Preparation Before Use
3.Reinsert the filters Reinsert the filters with side marked “FRONT” facing forward. Installation of Air cleaner ¡ñ ¡ñ ¡ñ ¡ñ ¡ñ 1. Remove the Air Filters (Refer to the first step of “cleaning the Air Filters”) Air cleaner 2. Install the Air cleaner. Take off the packed bags of Air cleaners, and then put them into the filter frames. -
Page 17: Troubleshooting
Troubleshooting Check the following before requesting on service center if the malfunction occurs. Phenomenon Trouble Shooting Indoor unit does not Once the air conditioner is stopped, it will not ope- operate immediately rate in approximately 3 minutes to protect itself. when the air condi- tioner is restarted. - Page 18 Immediately stop all operations and plug out, contact with service center of MUNDOCLIMA in following situations. Unusual noise can be heard during operation. Power fuse or switch often breaks. Carelessly splash water or something into air conditioner. Electrical lines and power plug are very hot. Wind blowing from the outlet smells terrible during operation.
-
Page 19: Technical Specifications
Technical specifications Model MUP-07 CN MUP-07 HN MUP-09 CN MUP-09 HN MUP-12 CN MUP-12 HN Functions Cool Cool Heat Cool Cool Heat Cool Cool Heat Accessory Air cleaner Cooling capacity (W) 2000 2000 2500 2500 3500 3500 Heating capacity (W) –... -
Page 20: Accessories And Installation Diagram
Accessories and Installation diagram Accessories (Check that all accessory parts are present before installation) Part name Diagram specification Memo Rear panel Wireless remote controller Battery 7# 1.5V Power connection cord Control cord 5 x 1 . 0 Heat pump type only Control cord 3x0.75 Heat pump type only... -
Page 21: Important Notes
Installation dimension diagram IMPORTANT NOTES The installation must be done by trained and qualified service personnel with reliability according to this manual. Contact with service center of MUNDOCLIMA before installation to avoid the mal-function due to unprofessional installation. When picking up and moving the units, you must be guided by trained and qualified personnel. -
Page 22: Installation Location
Installation location Indoor unit 1. The inlet and outlet should not be covered so that the outflow air can reach all parts of the room. 2. Install in a location where is permitting easy connection with the outdoor unit. 3. A location from which the condensation water can be drained out conveniently. 4. -
Page 23: Install The Indoor Unit
Install the indoor unit Install the rear panel 1.Always mount the rear panel horizontally. 2.Fix the rear panel on the selected location with screws supplied with the unit. 3.Be sure that the rear panel has been fixed firmly enough to withstand the weight of an adult of 60kg, furthermore, the weight should be evenly shared by each screw. - Page 24 NOTE: All the electrical work must be done by qualified personnel according to national wiring regulation and this manual. The power supply is type Y connection. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. The rated voltage and the exclusive circuit must be used.
-
Page 25: Install The Outdoor Unit
Install the outdoor unit Install the connection pipe 1. Align the center of the piping lare with the relevant valve. 2. Screw in the flare nut by hand and then tighten the nut with spanner and torque wrench refer to Fig.6. NOTE: Exceeding tightening torque will damage the flare surface. - Page 26 Air purging and leakage test 1.Remove the flare nuts from the cut-off valves of the outdoor unit. 2.Align the center of the piping flare with the relevant valve, and screw in the flare nut about 3 – 4 turns by hand.
-
Page 27: Test Operation And Check After Installation
Test operation and check after installation Test operation 1. Before test operation (1) Do not switch on power before installation is finished completely. (2) Electric wiring must be connected correctly and securely. (3) Cut-off valves of the connection pipes should be opened. (4) All the impurities such as scraps and thrums must be clear from the unit. -
Page 28: Electrical Wiring Diagram
Note: This diagram is just for reference only, the accurate diagram is labeled on the units you bought. -
Page 29: Table Of Contents
CONTENT The instructions before use Name and function of each part Name and function - Remote control Name and function - Remote control (Remove the cover) COOL mode operation procedure HEAT mode operation procedure DRY mode operation procedure AUTO mode operation procedure TIMER mode operation procedure SLEEP mode operation procedure How to install batteries...
