MUND CLIMA MUPR-H3 User And Installation Manual page 19

1

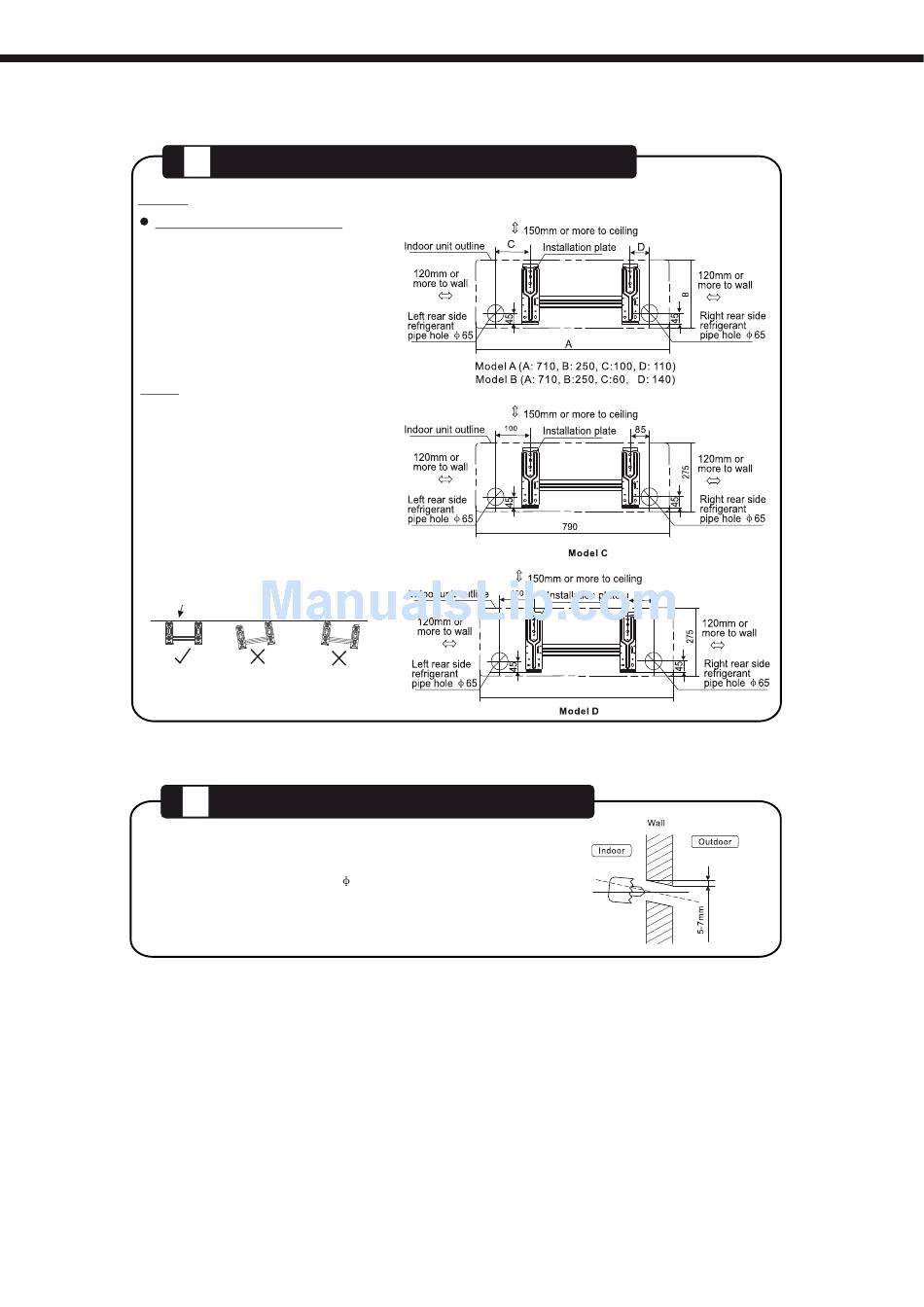

INSTALLATION PLATE MOUNTING
NOTE:
The mounting wall is strong and solid enough to prevent it from the vibration.
Fit the Installation Plate
1. Fit the installation plate horizontally
on structural parts of the wall with
spaces around the installation plate.
2. If the wall is made of brick, concrete
or the like, drill five or eight 5mm
diameter holes in the wall.Insert Clip
anchor for appropriate mounting screws.
3. Fit the installation plate on the wall
with five or eight type " A "
NOTE:
Fit the Installation Plate and drill
holes in the wall according to the
wall structure and corresponding
mounting points on the installation
plate. The installation plate provided
with the machine differ from appliance
to appliance.
(Dimensions are in mm unless " "
otherwise stated)
Correct orientation
of Installation Plate
2
DRILL A HOLE IN THE WALL
1. Determine hole positions according to left and right
side of the installation plate. The hole center is obtained
by measuring the distance as shown in the diagram above.
2. Dirll the piping plate hole with
3. Drill the piping hole at either the right or the left and the
hole should be slightly slanted to the outdoor side.
4. Always take steps to protect the pipe when drilling metal
grid,metal plate or the like.
OUTDOOR UNIT INSTALLATION
screws.
65mm hole-core drill.
17
205
930
