Page 1: Service Manual
INVERTER SERIE H5 Service manual MUPR-H5 CL20735 to CL20737 English... -
Page 2: Table Of Contents
CONTENTS Product Specification……………………..1 Refrigeration Diagram……………………..3 Wiring Diagram…………………………….6 Troubleshooting Guide……………………10 Operation Details…………………………..29... -
Page 3: Product Specification

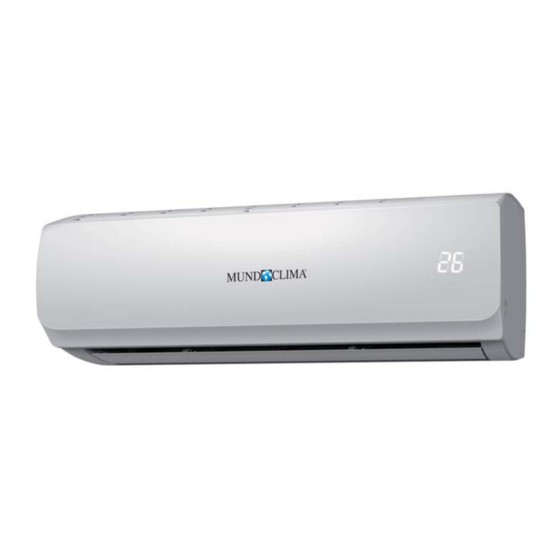

Chapter 1 Product Specification 1.1 Photo of Product Indoor unit Outdoor unit... -
Page 4: Outline Dimensions
1.2 Outline Dimensions Indoor Unit MODEL 9000BTU 12000BTU 18000BTU Outdoor Unit MODEL 9000BTU 12000BTU 18000BTU... -
Page 5: Refrigeration Diagram
Chapter 2 Refrigeration Diagrams 2.1 Cooling Only Cooling Mode Cooling Cycle Steam-gas of low pressure Indoor heat exchanger Compressor (Evaporation) (Compression) Liquid of low pressure Gas of high pressure (also a little gas) & temperature Super cooled liquid of high pressure Capillary Outdoor heat exchanger (Throttling) -
Page 6: Cooling Mode
2.2 Cooling & Heating Cooling Mode Cooling Cycle Steam-gas of low pressure Indoor heat exchanger Compressor (Evaporation) (Compression) 4-way valve Liquid of low pressure (Heat pump only) (also a little gas) Gas of high pressure & Super cooled liquid temperature of high pressure Capillary Outdoor heat exchanger... -
Page 7: Heating Mode
Heating Mode Heating Cycle Gas of high Pressure & temperature Indoor heat exchanger Compressor (Condensation) (Compression) 4-way valve (Heat pump only) Super cooled iquid of low pressure Steam-gas of low pressure Super cooled liquid of high pressure Capillary Outdoor heat exchanger (Throttling) (Evaporation) -
Page 8: Wiring Diagram
Chapter 3 Wiring Diagram Electric chart for 09/12K Indoor unit... - Page 9 Outdoor unit...
-
Page 10: Indoor Unit
Electric chart for 18K Indoor unit... - Page 11 Outdoor unit...
-
Page 12: Troubleshooting Guide
Chapter 5 Troubleshooting Guide 5.1 Error Code Error Code Problem Room temperature sensor fault Outdoor coil temperature sensor fault Indoor coil temperature sensor fault indoor fan motor or DC motor feedback fault indoor & outdoor communication fault Outdoor DC Fan motor fault IPM modular fault PFC modular fault Compressor operation fault... - Page 13 Troubleshooting Guide for 09 1. The Foremost Inspecting Items ⑴The input voltage must be within +10% tolerance of the rated Voltage. If it is not the case, the air-conditioner will probably not work normally. ⑵Check the connecting cord between indoor unit and outdoor unit to see if it is properly connected.
- Page 14 Problems Causes Since the air-conditioner is powered on, it The motor is heard operating but the will come to working condition as long as you air-conditioner dose not work when press the ON/OFF button of the remote the indoor unit is powered on control and the Signal is well received.
- Page 15 2. No Power Display ⑴Items a) Check if the input voltage is correct? b) Check if the AC power supply connecting is correct? c) Check if the output voltage of the manostat L7805 (IC2) is correct? ⑵Trouble shooting procedure...
- Page 16 3. The Indoor Fan Motor Does Not Work ⑴Items a) Check if the indoor fan motor is connected correctly to the connector (CN8)? b) Check if the AC input voltage is correct? c) Check if the IC of indoor fan motor is connected correctly to the connector (CN2)? d) Check if the capacity of indoor fan motor is connected correctly to the connector (CN8)?
- Page 17 4. The Outdoor Unit Does Not Work ⑴Items a) Check if the input voltage is correct? b) Check if the wire connection of the outdoor connecting terminal is correct? ⑵Trouble shooting procedure...
- Page 18 5. The Step Motor Does Not Work ⑴Items a) Check if the input voltage is correct? b) Check if the step motor controlling the up-down movement firmly connected to Cn2? ⑵Trouble shooting procedure...
- Page 19 6. Heating Mode Can Work, But No Hot Air Blow ⑴Check if the set temperature is lower than the indoor temperature? ⑵Check if the indoor PCB is connected to the terminal correctly?
- Page 20 7. Remote Control Can Not Work Trouble shooting rocedure...
- Page 21 8. The Failure Analysis of the Main Parts...
- Page 22 5.3 Troubleshooting Guide for 18-24K 1. The Foremost Inspecting Items ⑴The input voltage must be within +10% tolerance of the rated Voltage. If it is not the case, the air-conditioner will probably not work normally. ⑵Check the connecting cord between indoor unit and outdoor unit to see if it is properly connected.
- Page 23 Problems Causes Since the air-conditioner is powered on, it will The motor is heard operating but the come to working condition as long as you press air-conditioner dose not work when the ON/OFF button of the remote control and the indoor unit is powered on the signal is well received.
- Page 24 2. No Power Display ⑴Items ①Check if the input voltage is correct? ②Check if the AC power supply connecting is correct? ③Check if the output voltage of the manostat L7805(IC2)is correct? ⑵Trouble shooting procedure...
- Page 25 3. The Indoor Fan Motor Does Not Work ⑴Items ①Check if the indoor fan motor is connected correctly to the connector(CN8)? ②Check if the AC input voltage is correct? ③ Check if the IC of indoor fan motor is connected correctly to the connector(CN2)? ④Check if the capacity of indoor fan motor is connected correctly to the connector(CN8)?
- Page 26 4. The Outdoor Unit Does Not Work ⑴Items ①Check if the input voltage is correct? ②Check if the wire connection of the outdoor connecting terminal is correct? ⑵Trouble shooting procedure...
- Page 27 5. The Step Motor Does Not Work ⑴Items ①Check if the input voltage is correct? ②Check if the step motor controlling the up-down movement firmly connected to Cn2? ⑵Trouble shooting procedure...
- Page 28 6. Heating Mode Can Work, But No Hot Air Blow ⑴Check if the set temperature is lower than the indoor temperature? ⑵Check if the indoor PCB is connected to the terminal correctly?
- Page 29 7. Remote Control Can Not Work Trouble shooting procedure...
- Page 30 8. The Failure Analysis of the Main Parts...
-
Page 31: Operation Details
App1 Operation Details Summarization This specification is used for E、 Q、 SA series whose capacity is 9000-24000 btu and lower one, this standard book include all of the functions of 9000-24000btu and lower styles , but to the single unit , it not always all of the functions, the specific functions need to correspond corresponding modes to decide, this specification’s contents include same parts as below: 1、the basic condition of electrical control using... - Page 32 7、the four-way valve working electricity less than 1A/220V; 8、the swing motor is DC12V, four-phase eight clap step motor ; 9、the compressor is single power, the normal working electricity less than 1.5A; partition of electrical control’s function controller’s function constitute by some parts below: 1、...
- Page 33 Main function instruction 1、proper noun and expression TA: indoor environment temperature TE: indoor evaporator temperature TS: setting temperature 2、mandatory switch when the air conditioner under the opening condition, press this button is closing phenomenon; when the air conditioner under the closing condition ,press this is opening phenomenon, and after opening...
- Page 34 setting the temperature by remote controller, the control scope of temperature is 16℃～32℃, press the “up”、 “down” button can adjust the temperature. Press the “wind speed choose” button can choose the automatic wind、high speed wind、middle speed wind、low speed wind. Under this mode ,the four-way valve closed. 5、drying mode under this mode ,the four-way valve always closed, the control scope of temperature is 16℃～32℃.
- Page 35 outdoor fan operation、valve circuit have power、indoor fan open, and when satisfy the condition in the same time, the electric heating open. 9、intelligent defrost function When this mode operation , the conditioner begin to defrost if satisfy the condition, the sleeping light flicker. 10、sleep control function when automatic、...
- Page 36 operation. Cooling operation sleeping: Setting temperature rise1℃ again rise1℃ original setting temperature 7h （sleep finish， close） Heating operation sleeping： Setting temperature original setting temperature drop2℃ drop2℃ again 7h（sleep finish，close） 11、 timing control function The longest timing time is 24h, unit is 1min, single timing way, change the mode not cancel the timing function, after setting the timing mode, pointing light lighten.
- Page 37 ③ Setting the “on” timer time Just setting under condition of the air conditioner closed, the timing scope is 1min~12h, divide 12h a.m. and 12h p.m., when arriver the setting time, the conditioner automatic open. Open or close the conditioner after setting timing, the intrinsic timing and sleeping automatic cancel.
- Page 38 Note: the nixie tube just display homologous fault code, if not have the nixie tube and just have the timing light, so the timing light point homologous fault code. When the indoor fan motor add the voltage, if not detection pulse signal which feedback by the indoor fan motor, close the output voltage of power supply to the indoor fan motor on the remote controller , after standby 30s, offer the voltage to the indoor fan motor again, if also not...
- Page 39 ASK FOR MORE INFORMATION: Phone: 93 446 27 80 - Fax: 93 456 90 32 eMail: mundoclima@salvadorescoda.com TECHNICAL ASSISTANCE: Phone: 93 652 53 57 - Fax: 93 635 45 08...
