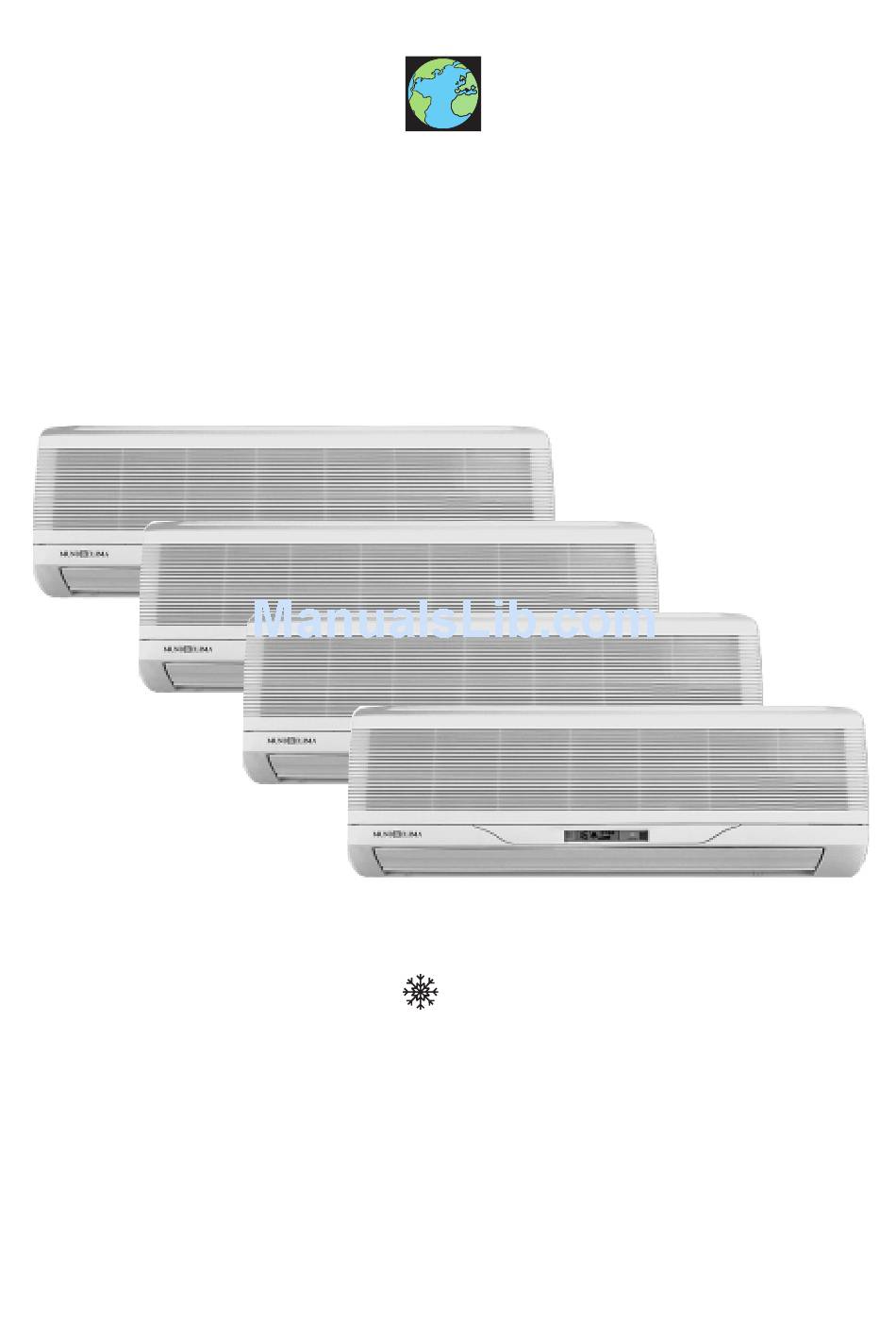

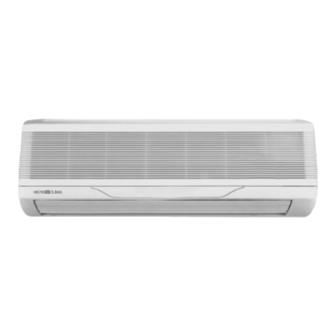

  • Page 1 MUND CLIMA ® Series 2000 Multisplit 4x1 COOL ONLY: MUP-062X4C User's manual...

  • Page 2: The Instructions Before Use

    The instructions before use WARNING The power plug must be Never splice the power cord Don’t insert your hands or inserted tightly. or use an extended cord. stick into the air intake or outlet Otherwise,it can cause an It can cause overheating or fire. vents.
  • Page 3 When cleaning,it is nece- Don’t place a space heater Keep combustible spray ssary to stop driving and turn near the air conditioner. away from the units. off the power suply. A i r f l o w f r o m t h e a i r It is likely to ignite.

  • Page 4: Name And Function Of Each Part

    Name and function of each part Indoor unit Air in AUTO Air out TEST STOP SIGNAL TEMP. RECEPTOP Operation indicator (GREEN)light up when the unit is on, and flashing when the unit is defrosting. Outdoor unit Air out...

  • Page 5: Name And Function-Remote Control

    Remote control operation procedure Name and Function-Remote control Note: Be sure that there are no obstructions. The remote control signal can be received at a distance of up to about 10m. Don’t drop or throw the remote control. Don’t place the remote control in a location exposed to direct sunlight. This type is just useful to cool mode only.

  • Page 6: Name And Function-Remote Control (Remove The Cover)

    Name and Function-Remote control (Remove the cover) Note: This type of remote controller is a kind of new current controller.Some buttons of the controller which are not available to this Air conditioner will not be described below. Liquid crystal displayer. It shows all set contents.

  • Page 7: Cool Mode Operation Procedure

    COOL mode operation procedure According to difference between room temp. and set temp., microcomputer can control = = = = = cooling on or not. If room temp. is higher than set temp., compressor runs at COOL mode. If room temp. is lower than set temp., compressor stops and only indoor fan motor runs. SET TEMP.

  • Page 8: Dry Mode Operation Procedure

    DRY mode operation procedure If room temp. is lower than set temp., compressor ,outdoor and indoor fan mortor stop. If = = = = = room temp. is between= = = = = 2 of set temp., Air conditioner is drying.If room temp. is higher than set temp.

  • Page 9: Auto Mode Operation Procedure

    AUTO mode operation procedure At AUTO mode operation, standard SET TEMP. is 25 for COOL mode . = = = = = SWING AUTO FAN OPER AUTO SWING SLEEP HUMID LIGHT TIMER ON TIMER OFF ANION SAVE MODE 1 / 0 1.Plug in,Press 1/0 button, then air conditioner is turned on.

  • Page 10: Timer Mode Operation Procedure

    TIMER mode operation procedure SWING AUTO FAN SWING TIMER ON OFF SLEEP At stopping,press TIMER ON button, set ON TIME in range HUMID LIGHT of 0 to 24 hour to start the unit automatically. TIMER ON TIMER OFF ANION SAVE MODE 1 / 0 At operating,press TIMER...

  • Page 11: Sleep Mode Operation Procedure

    SLEEP mode operation procedure When the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would increase in 1 hour and 2 in 2 hour. Indoor fan motor runs at low speed. When the unit is heating , if SLEEP operation is set,SET TEMP. would decrease 1 I I I I I in 1 hour and 1 2 hours.

  • Page 12: How To Insert Batteries

    How to insert batteries 1. Remove the cover from the back of the remote control. 2. Insert the two batteries ( Two AAA dry - cell batteries ) and press button “ACL”. 3. Re - attach the cover. NOTE: Don’t confuse the new and worn or different batteries.

  • Page 13: User Notices

    USER NOTICES Note:The climate type is T1 (18 Select the most appropriate temperature. The air flow direction can be adjusted appropria- It can preclude the electricity wasted. tely.The louvers can be adjusted downward at heat- ing operation, and upward at cooling operation. COOL Don’t leave windows and doors open while Don’t blow the wind to animals and plants directly.

  • Page 14: Care And Maintenance

    Care and Maintenance CAUTION Turn power off and pull out the power plug before cleaning air conditioner. Don’t sprinkle water on the indoor unit and the outdoor unit for cleaning. Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleanser. Cleaning surface panel 1.
  • Page 15 3.Reinsert the filters Reinsert the filters with side marked “FRONT” facing forward. Replacement of Air cleaner Recommended once every Six months,and the alternate filters can be found in the service center. 1.Remove the Air Filters (Refer to the first step of “cleaning the Air Filters”) 2.Replace the Air cleaner Air cleaner Take off the packed bag of Air purifying Filters,and...

  • Page 16: Troubleshooting

    Troubleshooting Check the following before requesting on service center if the malfunction occurs. Phenomenon Trouble Shooting Indoor unit does not Once the air conditioner is stopped, it will not operate in Waitting operate immediately approximately 3 minutes to protect itself. when the air condi- tioner is restarted.
  • Page 17 Immediately stop all operations and plug out,contact with service center of MUNDOCLIMA in following situations. Unusual noise can be heard during operation. Power fuse or switch often breaks. Carelessly splash water or something into air conditioner. Electrical lines and power plug are very hot. Wind blowing from the outlet smells terrible during operation.

  • Page 18: Circuit Diagram

    Circuit Diagram...

  • Page 19: Accessories And Installation Diagram

    Accessories and Installation diagram Accessories (Check that all accessory parts are present before installation) Part name Diagram specification Memo Rear panel Wireless remote controller Battery 7# 1.5V YZW300/500 Power connection cord Control cord 4G 1.0 Tapping screw ST4.2 Fix the rear panel Packaged with Plastics drain hose L = 2m...
  • Page 20 Installation dimension diagram Space to the ceiling Space to the wall Space to the wall Piping -hole sleeve Wrapping tape Air outlet side Space to the floor IMPORTANT NOTES The installation must be done by trained and qualified service personnel with reliability according to this manual. Contact with service center of MUNDOLIMA before installation to avoid the mal-function due to unprofessional installation.

  • Page 21: Installation Location

    Installation location Indoor unit 1. The inlet and outlet should not be covered so that the outflow air can reach all parts of the room. 2. Install in a location where is permitting easy connection with the outdoor unit. 3. A location from which the condensation water can be drained out conveniently. 4.

  • Page 22: Install The Indoor Unit

    Install the indoor unit Install the rear panel 1.Always mount the rear panel horizontally. 2.Fix the rear panel on the selected location with screws supplied. 3.Be sure that the rear panel has been fixed firmly enough to withstand the weight of an adult of 60kg, furthermore, the weight should be evenly shared by each screw.
  • Page 23 Wiring cover plate N(1) Power connection cord (Fig.3) NOTE: All the electrical work must be done by qualified personnel according to the local rules and this manual. The rated voltage and the exclusive circuit must be used. Leakage circuit - breaker must be installed. Please use specified fuse.

  • Page 24: Install The Outdoor Unit

    Install the outdoor unit Installing the unit BE Sure to fix unit’s legs with bolts when installing it. Be sure to install the unit firmly to ensure that it does not fall by an earthquake or a gust. Refer to the figure in the right concrete foundation. NOTE The length of anchor bolts should be within 25mm from each anchor leg.

  • Page 25: Indoor/Outdoor Wire Connection And Outdoor Power Supply Cord Connection

    Indoor/outdoor wire connection and outdoor power supply cord connection Connect wire from the indoor unit correctly to the terminal block. For aftercare maintenance.give extra length to connecting wire. Indoor unit Outdoor unit Rated voltage 220 230V 220 230V Breaker capacity Power supply cord 4G1.0 Note: Be sure that the plastic square rings are tightly installed in the holes of the rear panel to protect...

  • Page 26: Indoor/Outdoor Units Connection Finishing And Test Run

    Indoor/outdoor units connection finishing and test run Pipe length and height difference Limits UNIT NO. pipe length per 20 m max. 20 m max. 20 m max. 20 m max. indoor unit Total 30 m max. Total 30 m max. Height difference 10 m max.

  • Page 27: Flaring Work

    Flaring work Main cause of gas leakage is defect in flaring work. Perform flaring work correctly in the following procedure. 1.Pipe cutting Copper pipe Cut the copper pipe correctly with pipe cutter. Good Tilted Uneven Burred 2.Burrs removal Completely remove all burrs from the cut cross section of the pipe.

  • Page 28: Pipe Connection

    Pipe connection Indoor unit connection Connect both liquid pipe and gas pipe to indoor unit. Apply a thin coat of refrigeration oil to the seat surface of pipe. For connection, align the center of both pipe and union, then tighten the first 3 to 4 turns in flare nut by hand. For tightening the union part of the indoor unit side, use the table below as a standard and tighten the flare section.

  • Page 29: Air Purge And Leak Test

    Air purge and leak test For details about how to use manifold valves, see the Pressar gage instruction manual for manifold valves. Comperad powere gage Mite The handle Hi below connect operate during the following work if it is fully closed. Evacuate every indoor unit for rooms A B C and D.

  • Page 30: For Movement And Maintenance

    For movement and maintenance 1 How to install the panel Before installing the panel, set the horizontal vane to the position as shown below. Insert the bottom of the panel under the horizontal vane. Set the top of the panel. Push the panel as the arrow mark to fix to the air conditioner.

  • Page 31: Gas Charger

    Gas charger Perform gas charge to unit A or B and unit C or D Connect gas cylinder to the service port of stop valve. Perform air purge of the pipe (or hose) coming from refrigerant gas cylinder. Replenish specified amount of the refrigerant, while operating the air conditioner for cooling. CAUTION: Never charge liquid refrigerant, such as by inverting the gas cylinder while charging, otherwise troubles may be generated.

  • Page 32: Table Of Contents

    CONTENT The instructions before use Name and function of each part Name and function-Remote control Name and function-Remote control (Remove the cover) COOL mode operation procedure DRY mode operation procedure AUTO mode operation procedure TIMER mode operation procedure SLEEP mode operation procedure HOW to insert batteries User notices Care and Maintenance...
