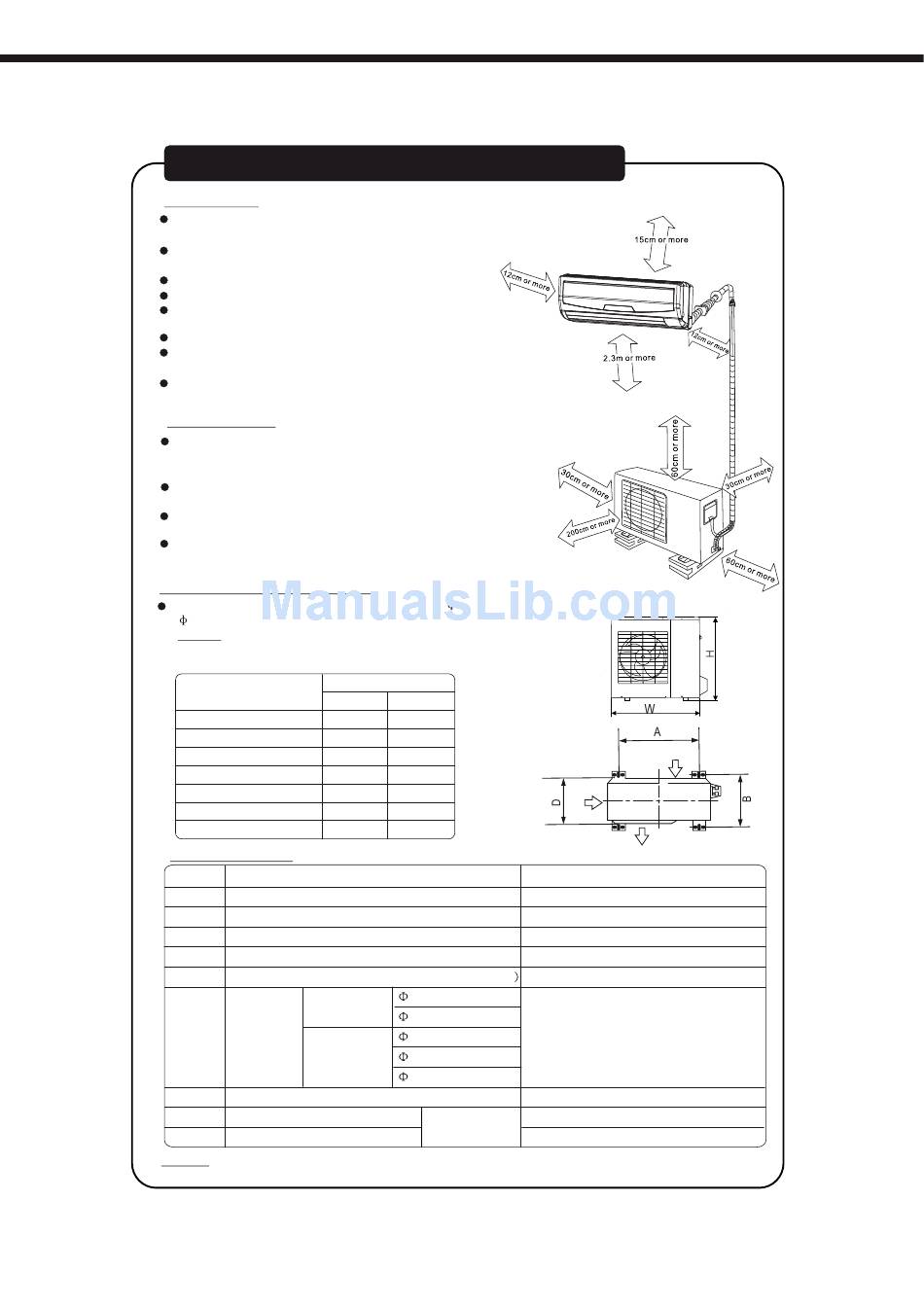

SELECT THE BEST LOCATION
Indoor unit
There should not be any heat source or stream
near the unit.
There should not be any obstacles blocking the
air circulation.
A place where air circulation in the room is good.
A palce where drainage can be easily done.
A palce where noise prevention is taken into
consideration.
Do not install the unit near the door way.
Ensure the spaces indicated by arrows from the
wall,ceiling,fence or other obstacles.
There should not be any direct sunlight. If unavoidable,
sunlight prevention should be taken into consideration.
Outdoor unit
If an awning is built over the unit to prevent
direct sunsight or rain,be careful that heat
radiation from the condenser is not obstructed.
There should not be any animal or plant which
could be affected by hot air discharged.
Keep the spaces indicated by arrow from wall
ceiling, fence or other obstacles.
Do not place any obstacles which may cause
a short circuit of the discharged air.
Settlement of outdoor unit
Anchor the outdoor unit with a bolt and nut
8 tightly and horizontally on a concrete or rigid mount.
NOTE: The outdoor unit you purchase may be like one
of the following. Install the outdoor unit according to the
dimension as indicated in the table below:
Mounting dimensions
Outdoor unit dimension
mm(WxHx D)
A(mm)
700x540x240
685x430x260
780x540x250
760x590x285
845x700x320
775x545x310
670x540x265
ACCESSORIES
Number Name of Accessories
1 Installation Plate
Clip Anchor
2
Self-tapping Screw A ST3.9x25
3
Seal(For cooling & heating models only)
4
5 Drain Joint(For cooling & heating models only
6
Liquid side
Connecting
pipe
Assembly
Gas side
7 Remote controller
Self-tapping Screw B ST2.9x10
8
9 Remote controller holder
NOTE
: Except the above parts provided,the other parts needed during installation you must
purchase.
OUTDOOR UNIT INSTALLATION
10 or
B(mm)
458 250
460 276
549 276
530 290
560 335
600 320
481 276
6.35
9.52
9.52
12.7
16
optional
parts
16
Air inlet
Air inlet
Air outlet
Qty
1
5-8(depending on models)
5-8(depending on models)
1
1
Parts you must purchase. The pipe
size differ from appliance to appliance.
Consult the technician for the proper
size.
1
2
1
