- Page 1 INVERTER SERIE H5A Service manual MUPR-H5A CL20025 to CL20028 English www.mundoclima.com...
- Page 2 CONTENTS Product Specification……………………..1 Refrigeration Diagram……...…………….. Wiring Diagram……………………………. Troubleshooting Guide…………………..

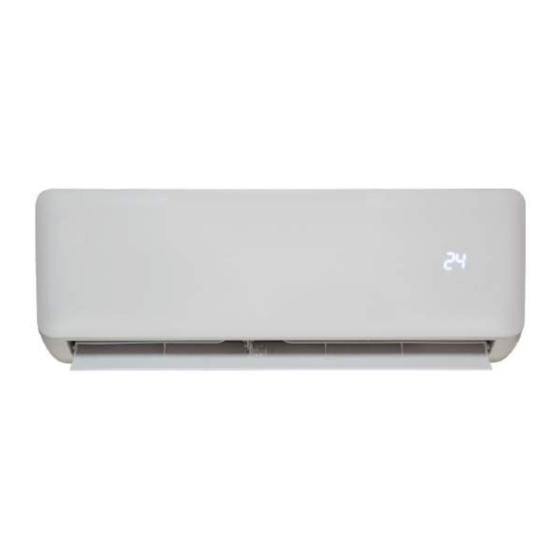

- Page 3 Chapter 1 Product Specification 1.1 Photo of Product Indoor Unit Outdoor Unit...
- Page 4 1.2 Outline Dimensions Indoor Unit MODEL 9000BTU 12000BTU 18000BTU 24000BTU W mm 1082 D mm H mm Outdoor Unit (2015-16) Outdoor Unit (2015-16) MODEL 9000BTU 12000BTU 18000BTU 24000BTU W mm D mm H mm Outdoor Unit (2017) MODEL 9000BTU 12000BTU 18000BTU 24000BTU W mm...
- Page 5 Chapter 2 Refrigeration Diagrams Cooling Mode Cooling Cycle Steam-gas of low pressure Indoor heat exchanger Compressor (Evaporation) (Compression) 4-way valve Liquid of low pressure (Heat pump only) (also a little gas) Gas of high pressure & Super cooled liquid temperature of high pressure Capillary Outdoor heat exchanger...
- Page 6 Heating Mode Heating Cycle Gas of high Pressure & temperature Indoor heat exchanger Compressor (Condensation) (Compression) 4-way valve (Heat pump only) Super cooled iquid of low pressure Steam-gas of low pressure Super cooled liquid of high pressure Capillary Outdoor heat exchanger (Throttling) (Evaporation)
- Page 7 Chapter 3 Wiring Diagram Indoor unit MUPR-09/12/18/24-H5A Room temperature (15k) Pipe temperature (20k)
- Page 8 Outdoor unit MUPR-09/12/18-H5A (2015-16) Orientation Valve FAN-DC CN-N AC-L Brown AC-N Blue Black SWITCH EXHAUST PIPE ROOM 1(L) 2(N) 4(S) Compressor Out Room temperature (15k) To Indoor Unit Out Pipe temperature (20k) 11326007000450 Exhaust (discharge) temperature (50k)
- Page 9 Outdoor unit MUPR-18-H5A (2017)
- Page 10 Outdoor unit MUPR-24-H5A DC Fan motor Out Room temperature (15k) Out Pipe temperature (20k) Exhaust (discharge) temperature (50k)
- Page 11 MUPR-24-H5A(V2)
- Page 12 Chapter 4 Troubleshooting Guide 4.1 Error Code Error code COOLING indicator HEATING indicator TIMER indicator Description 1 blink Indoor environment temprature sensor fault 2 blinks Outdoor pipe temprature sensor fault 3 blinks Indoor pipe temprature sensor fault E4/Fb 4 blinks Indoor fan motor circuit fault E5/5E 5 blinks...
- Page 13 Troubleshooting Guide 1. The Foremost Inspecting Items ⑴The input voltage must be within +10% tolerance of the rated Voltage. If it is not the case, the air-conditioner will probably not work normally. ⑵Check the connecting cord between indoor unit and outdoor unit to see if it is properly connected.
- Page 14 Problems Causes Since the air-conditioner is powered on, it The motor is heard operating but the will come to working condition as long as you air-conditioner dose not work when press the ON/OFF button of the remote the indoor unit is powered on control and the Signal is well received.
- Page 15 2. No Power Display ⑴Items a) Check if the input voltage is correct? b) Check if the AC power supply connecting is correct? c) Check if the output voltage of the manostat L7805 (IC2) is correct? ⑵Trouble shooting procedure...
- Page 16 3. The Indoor Fan Motor Does Not Work ⑴Items a) Check if the indoor fan motor is connected correctly to the connector (CN8)? b) Check if the AC input voltage is correct? c) Check if the IC of indoor fan motor is connected correctly to the connector (CN2)? d) Check if the capacity of indoor fan motor is connected correctly to the connector (CN8)?
- Page 17 4. The Outdoor Unit Does Not Work ⑴Items a) Check if the input voltage is correct? b) Check if the wire connection of the outdoor connecting terminal is correct? ⑵Trouble shooting procedure...
- Page 18 5. The Step Motor Does Not Work ⑴Items a) Check if the input voltage is correct? b) Check if the step motor controlling the up-down movement firmly connected to Cn2? ⑵Trouble shooting procedure...
- Page 19 6. Heating Mode Can Work, But No Hot Air Blow ⑴Check if the set temperature is lower than the indoor temperature? ⑵Check if the indoor PCB is connected to the terminal correctly?
- Page 20 7. Remote Control Can Not Work Trouble shooting rocedure...
- Page 21 ASK FOR MORE INFORMATION Phone: (+34) 93 446 27 80 eMail: info@mundoclima.com TECHNICAL ASSISTANCE Phone: (+34) 93 652 53 57 www.mundoclima.com...
