- Page 1 Manual (1.1 EN)
-
Page 2: Table Of Contents
Please refer to the information in the operating manual. WARNING! Dangerous voltage! Contents Safety precautions...............3 Information regarding use of loudspeakers..........3 E6 ..................4 Connections......................5 Operation with D6 or D12................5 Operation with E-PAC..................6 Dispersion characteristics.................7 Altering the HF horn dispersion..............7 Technical specifications..................8 Manufacturer's declarations..........9... -
Page 3: Safety Precautions

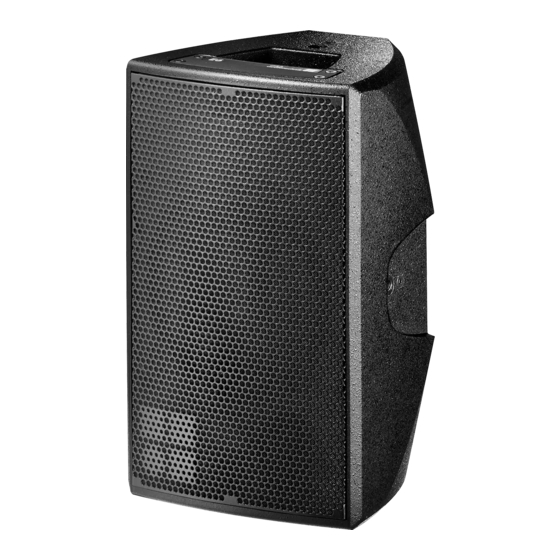

Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. E6 Manual, (1.1 EN) Safety precautions - 1... - Page 4 90° providing a 55° x 100° pattern without the use of tools. The E6 is a two-way design with a built-in passive crossover network. Its frequency response extends from 85 Hz to 20 kHz.
-
Page 5: Connections
Connections The E6 cabinet is fitted with a pair of EP5 connectors. All five pins of both connectors are wired in parallel. The E6 uses the pin assignments 1/2. Pins 3/4 and 5 are designated to active subwoofers, where pin 5 is used for SenseDrive (only available when using a D12 amplifier and 5- wire cabling). -
Page 6: Operation With E-Pac
Selecting E6 mode enables the E-PAC to drive up to three E6 loudspeakers. LO IMP mode configures the E-PAC to drive a maximum of five E6 loudspeakers with a 6 dB reduction in input level to the loudspeakers. For acoustic adjustment the functions CUT and HFA can be selected. The characteristics of the CUT and HFA settings are explained in the previous section "Operation with D6 or D12 - Controller settings". -
Page 7: Dispersion Characteristics
Dispersion characteristics The graphs below show dispersion angle over frequency of a single E6 cabinet plotted using lines of equal sound pressure (isobars) at –6 dB and –12 dB. Fig. 7: Isobar diagram E6 horizontal, Fig. 8: Isobar diagram E6 vertical,... -
Page 8: Technical Specifications
Frequency response (–5 dB CUT mode)...........120 Hz ... 20 kHz Max. sound pressure (1 m, free field) E6 with D12 .........123 dB Max. sound pressure (1 m, free field) E6 with D6 or E-PAC ......120 dB (SPLmax peak, pink noise test signal with crest factor of 4) Input level (100 dB-SPL/1 m)................–11 dBu... -
Page 9: Manufacturer's Declarations
Manufacturer's declarations EU conformity of loudspeakers (CE symbol) This declaration applies to E6 loudspeaker, Z0350 manufactured by d&b audiotechnik GmbH. All production versions of this type are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications. - Page 10 d&b audiotechnik GmbH, Eugen-Adolff-Str. 134, D-71522 Backnang, Germany, Phone +49-7191-9669-0, Fax +49-7191-95 00 00...
