- Page 1 Y-SUB Manual 1.1 en...
- Page 2 General information Y-SUB Manual Version: 1.1 en, 09/2015, D2714.EN .01 Copyright © 2015 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new owner.
-
Page 3: Table Of Contents
Y-SUB loudspeaker............5 2.1. Product description..............5 2.2. Connections................6 2.3. Operation................6 2.3.1. Controller settings..............7 2.4. Technical specifications............7 Manufacturer's declarations........8 3.1. EU conformity of loudspeakers (CE symbol)......8 3.1.1. WEEE Declaration (Disposal)..........8 d&b Y-SUB Manual 1.1 en... -
Page 4: Safety Precautions
Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b Y-SUB Manual 1.1 en... -
Page 5: Y-Sub Loudspeaker

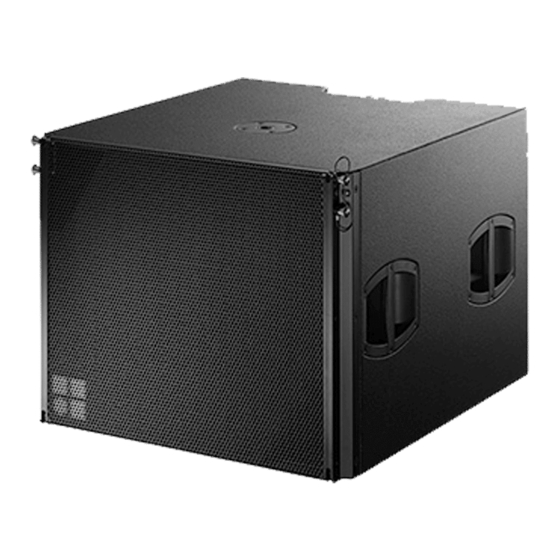

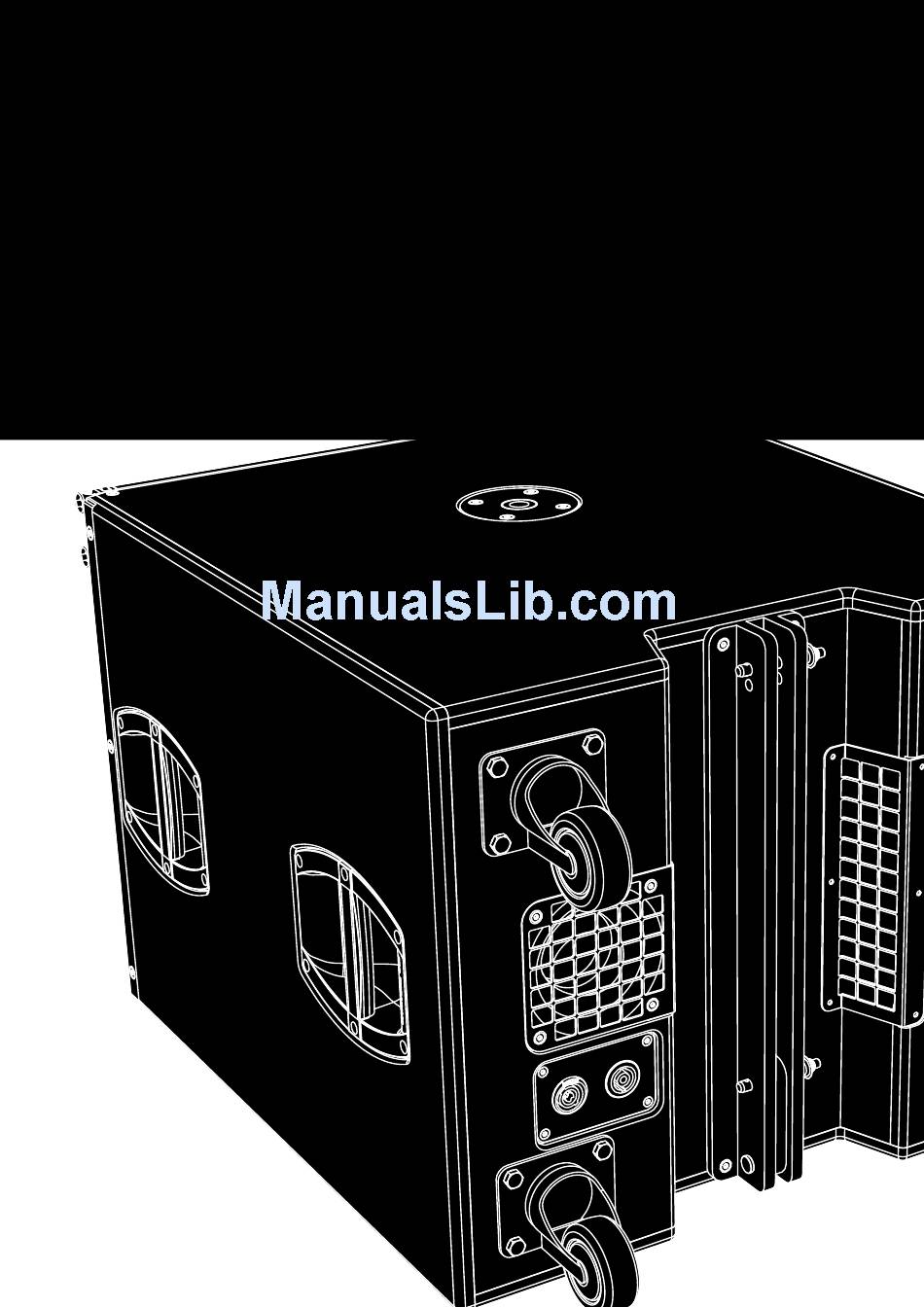

The Y-SUB is a compact high performance cardioid subwoofer designed to supplement the d&b Y-Series cabinets. The Y-SUB houses two long excursion neodymium drivers in an integrated cardioid setup: an 18" driver in a bass-reflex design facing to the front and a 12" driver in a two chamber bandpass design radiating to the rear. -
Page 6: Connections
2.2. Connections The cabinet is fitted with a pair of NLT4 F/M connectors. All four pins of both connectors are wired in parallel. The Y-SUB uses the pin assignments 2+/2–. Pins 1+/1– are designated to the Y8 or Y12 loudspeakers. Using the male connector as the input, the female connector allows for direct connection to a second cabinet. -
Page 7: Controller Settings
1 x 18" driver 1 x 12" driver Connections 2 x NLT4 F/M Y-SUB frequency response, standard and 100 Hz mode optional 2 x NL4 M or EP5 Pin assignment NLT4 F/M and NL4 M: 2+ / 2– EP5: 3: + / 4: –... -
Page 8: Manufacturer's Declarations
Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b Y-SUB Manual 1.1 en... - Page 10 www.dbaudio.com...
