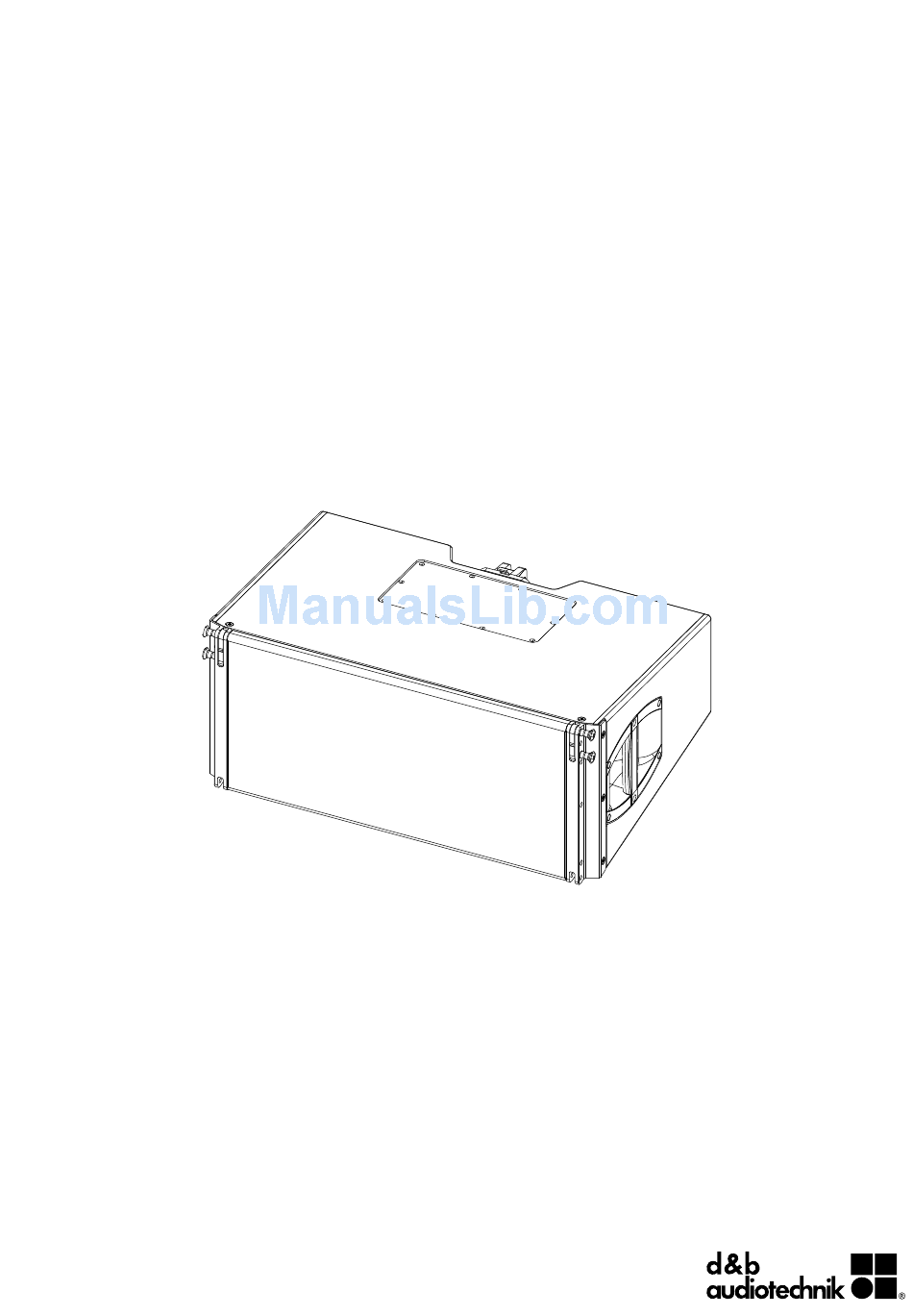

- Page 1 V8/V12 Manual (1.6 EN)
-
Page 2: General Information
General information V8/V12 Manual Version: 1.6 EN, 01/2014, D2700.EN .01 Copyright © 2014 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new customer. -
Page 3: Table Of Contents
2.1. Product description............5 2.2. Connections..............6 2.3. Operation..............6 2.3.1. Controller settings............ 6 2.4. Dispersion characteristics..........8 2.5. Technical specifications..........8 Manufacturer's Declarations........10 3.1. EU conformity of loudspeakers (CE symbol)... 10 3.2. WEEE Declaration (Disposal)........10 d&b V8/V12 Manual (1.6 EN) -
Page 4: Safety Precautions
Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b V8/V12 Manual (1.6 EN) -
Page 5: V8/V12 Loudspeaker
2. V8/V12 loudspeaker 2.1. Product description The V8 is a line array loudspeaker for medium to large-scale sound reinforcement. When the V Flying frame is used, up to 24 cabinets can be flown in vertical columns producing an 80° constant directivity dispersion pattern in the horizontal plane. -
Page 6: Connections
For acoustic adjustment the functions CUT, CPL and HFC can be selected. CUT circuit Set to CUT, the low frequency level of the cabinets is reduced. The V8/V12 array is now configured for use with the d&b V-SUB or J-SUB subwoofers. d&b V8/V12 Manual (1.6 EN) - Page 7 +5 dB) and can be set when the system is used in full range mode without subwoofers. Note: Make sure that all cabinets within the line array are Fig. 4: Frequency response correction of CPL circuit operated with the same CPL setting. d&b V8/V12 Manual (1.6 EN)
-
Page 8: Dispersion Characteristics
Max. sound pressure (1 m, free field) with D80 142 dB with D12 139 dB (SPLmax peak, pink noise test signal with crest factor of 4) Fig. 7: V8 frequency response, standard and CUT modes d&b V8/V12 Manual (1.6 EN) - Page 9 2 x NL4 or NLT4 F/M optional 2 x EP5 Pin assignment NL4 and NLT4 F/M: 1+/1– EP5: 1: + / 2: – Weight 34 kg (75 lb) Fig. 9: V8/V12 cabinet dimensions in mm [inch] d&b V8/V12 Manual (1.6 EN)
-
Page 10: Manufacturer's Declarations
Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b V8/V12 Manual (1.6 EN) - Page 11 www.dbaudio.com...
