- Page 1 Manual (3.2 EN) (incl. accessories)
-
Page 2: Table Of Contents
Symbols on the equipment Please refer to the information in the operating manual. WARNING! Dangerous voltage! Contents Safety precautions...............3 Information regarding use of loudspeakers..........3 E0 ..................4 Connections......................4 Operation with D6 or D12................5 Operation with E-PAC..................5 Dispersion characteristics.................6 Technical specifications..................6 E0 Accessories...............8 Safety instructions....................8 Parts list E0 accessories..................8 Assembly......................9... -
Page 3: Safety Precautions
Safety precautions Information regarding use of loudspeakers Never stand in the immediate vicinity of loudspeakers driven at a high WARNING! level. Professional loudspeaker systems are capable of causing a sound pressure level detrimental to human health. Seemingly non- critical sound levels (from approx. 95 dB SPL) can cause hearing damage if people are exposed to it over a long period. -
Page 4: Connections

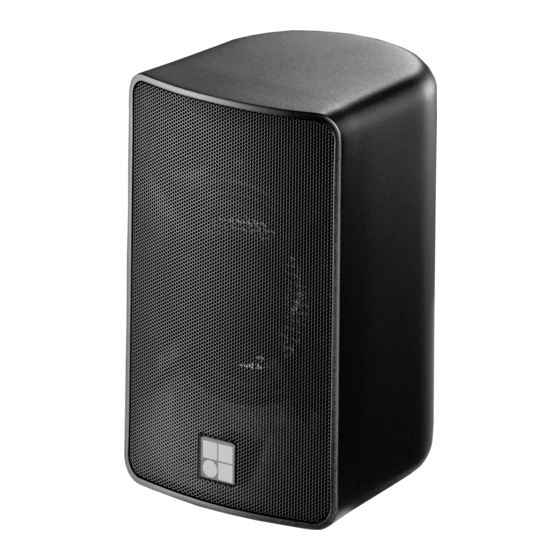

The E0 is a compact, coaxial 2-way loudspeaker fitted with a 5” LF driver and 1” dome tweeter. The E0 is housed in a cleverly shaped strong polyamide cabinet containing magnetic shielding of the LF driver. A rigid metal grill protects the front of the loudspeaker cabinet. -
Page 5: Operation With D6 Or D12
Operation with D6 or D12 Select the controller setup E0. Within the D12 amplifier this is available in "Dual Channel" and "Mix TOP/SUB" mode. Up to a total of four E0 loudspeakers can be driven by each D6 or D12 amplifier channel. -
Page 6: Dispersion Characteristics
Dispersion characteristics Due to the coaxial driver design, the horizontal and vertical dispersion characteristics of the E0 are identical. The diagram below shows dispersion angle vs frequency plotted using lines of equal sound pressure (isobars) at –6 dB and –12 dB. Fig. - Page 7 45 [1.77"] 170 [6.69"] 233 [9.17"] Fig. 8: E0 cabinet dimensions in mm [inch] and angle ranges E0 Manual (3.2 EN) Page 7 of 10...
-
Page 8: E0 Accessories
E0 Accessories Recessed into the rear is a self-locking ball joint with an integrated mounting arm that incorporates an M10 female thread. The E0 rigging accessories allow different mounting of the E0 loudspeaker as described below: - The E0 comes with the B2123 Fixing plate to allow mounting to walls and ceilings or other surfaces. -
Page 9: Assembly
Assembly The E0's ball joint with integrated mounting arm incorporates an M10 female thread which enables the attachment of the accessory items as listed above. The specific accessories are attached to the mounting arm [1] using the spring washer [2] and should be fixed using a wrench (SW: #17). The E6533 M10 adapter allows the attachment of the E6532 Super Clamp to the E0 mounting arm (please refer to the specific mounting instructions provided with the Manfrotto Super Clamp). -
Page 10: Manufacturer's Declarations
Manufacturer's declarations EU conformity of loudspeakers (CE symbol) This declaration applies to: d&b E0 loudspeaker, Z0400 manufactured by d&b audiotechnik GmbH. All production versions of this type are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
