Vicon Series 247-00-03 User Manual
  1. Manuals
  2. Brands
  3. Vicon Manuals
  4. Security Camera
  5. Series 247-00-03
  6. User manual

Vicon Series 247-00-03 User Manual

V-cell high-security corner-mount cameras
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
XX247-00-03

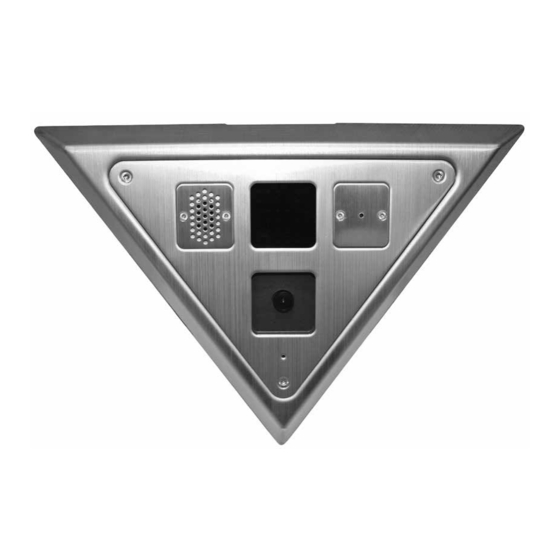

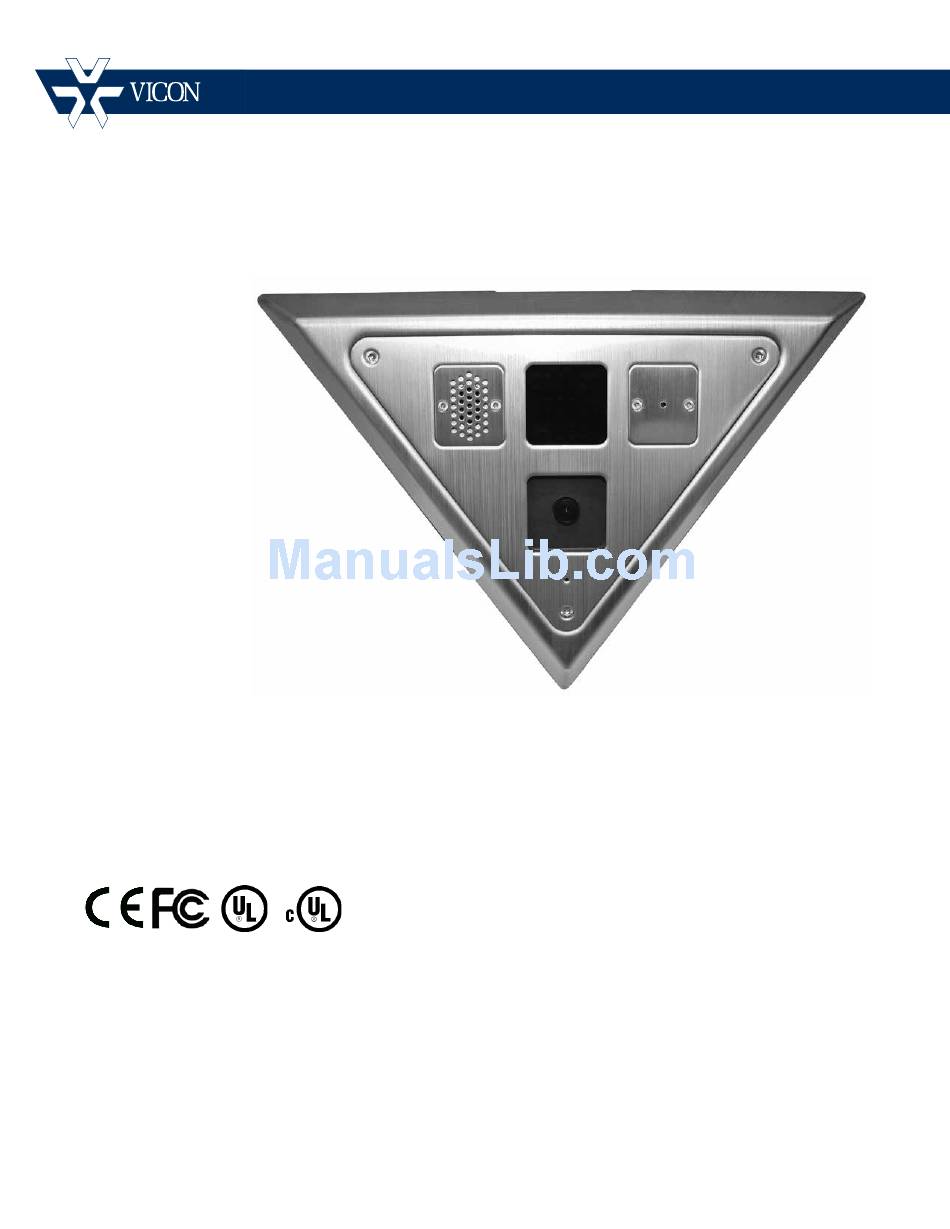

V-CELL High-Security
Corner-Mount Cameras
Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8247-00-03
Issued: 1012
Product specifications subject to change without notice.
Copyright © 2012 Vicon Industries Inc. All rights reserved.
