Vicon 240-60 Series Instruction Manual

Instruction Manual XX240-60

Introduction

The information in this manual covers the installation of the H264-ENCDR-RK8 Rack Mount for the H264-ENCDR
Digital Video Server and KRX-3 Digital Video Decoder. This unit should be installed by a qualified technician using
approved materials in accordance with national, state and local codes. Read these instructions through completely
before attempting installation.
If the H264-ENCDR or KRX-3 is to be mounted into a standard 19-inch racking system, the H264-ENCDR-RK8
Rack Mount can be used. The H264-ENCDR-RK8 allows up to eight (8) units to be installed vertically into the rack.

Installation

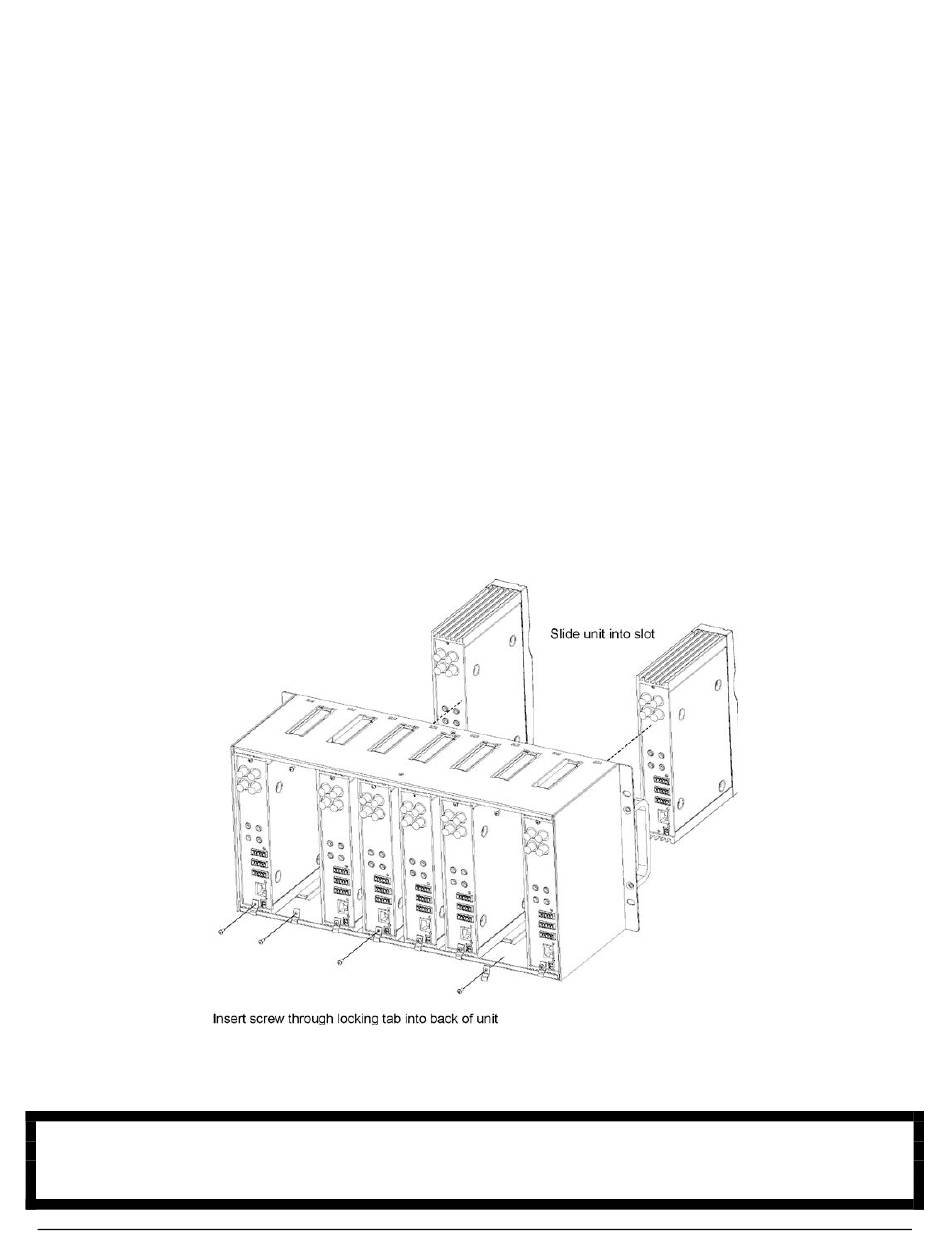

Use the following procedure to install the H264-ENCDR-RK8. Refer to Figure 1.
1. Slide the H264-ENCDR/KRX-3 vertically along the rails in the card cage into the desired slot.
a. If it is required that the unit be permanently attached to the card cage, remove one of the two screws on
the rear panel (top or bottom) of the unit. Reinsert the previously removed screw through the provided
locking tab, being sure to catch the lip of the card cage, and attach to the unit. Refer to Figure 1.
b. If it is required to allow the unit be periodically removed from the cage, do not secure it to the card cage
with the clamp. It will fit snugly in the cage without being attached to it.
2. Slide the filled H264-ENCDR-RK8 into the racking system and secure it with appropriate hardware for the
particular racking system. Refer to instruction manual XX240/XX184 for the H264-ENCDR/KRX-3 to make
cable connections and for complete installation instruction for the unit.
