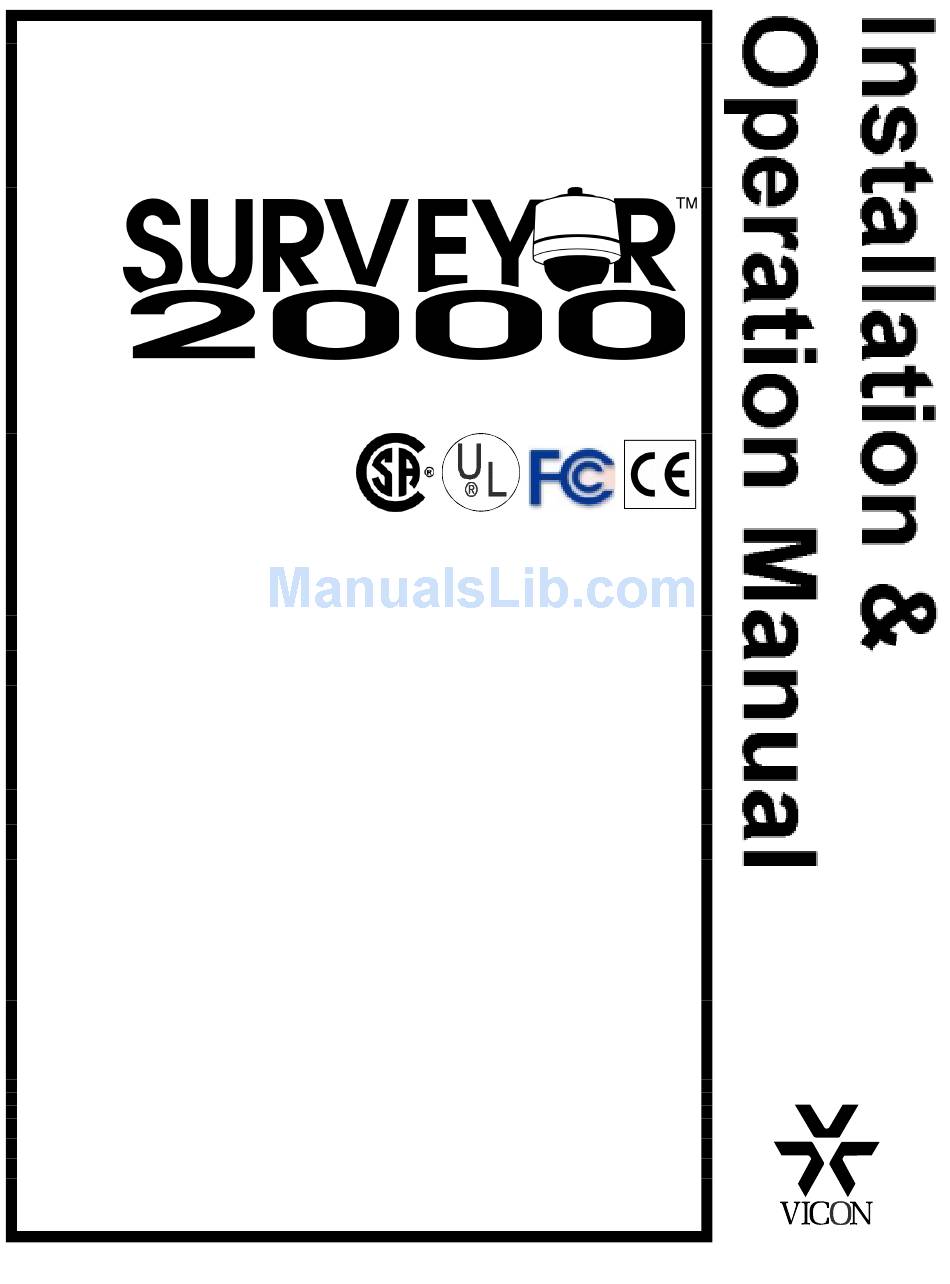

Vicon surveyor 2000 XX004 Installation And Operation Manual

Pressurized housing camera dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XX004
Pressurized Housing Camera Dome
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements
or that the operation will be entirely error free or perform precisely as described in the documentation. This system
has not been designed to be used in life-critical situations and must not be used for this purpose.
Copyright © 2000 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Teflon is a registered trademark of DuPont.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TELE: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon Part No. 8009-8004-02-00 Section 1 Rev 500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the surveyor 2000 XX004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon surveyor 2000 XX004

Summary of Contents for Vicon surveyor 2000 XX004

  • Page 1 Pressurized Housing Camera Dome Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 5: Fcc Notice

    FCC Notice NOTE: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.

  • Page 7: Table Of Contents

    Contents INTRODUCTION ........................1 How to Use this Manual ..........................1 Accessory Kit ..............................1 Unpacking and Inspection ..........................1 Pressurized Housing Components ......................2 Housing..............................2 Camera Drive............................2 Trim Ring/Lower Dome Assembly ......................2 INSTALLATION ........................3 Wall Mount Method............................3 Installing the Wall Mount...........................

  • Page 8: Important Safeguards

    Use only with a mounting accessory recommended by Vicon, or sold with the video product. Any mounting of the video product should follow Vicon’s instructions, and a mounting accessory recommended by Vicon should be used.
  • Page 9 This prevents damage to the video product due replacement parts specified by Vicon or that have the to lightning and power-line surges. same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other 15.

  • Page 11: Introduction

    Pressurized Housing. Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to provide suitable delivery. Inspect the cartons upon delivery and, if damage is present, make detailed notes on the carrier’s bill. Then, obtain the carrier agent’s signature and file a damage claim as soon as possible. Open the cartons and inspect the equipment for damage.

  • Page 12: Pressurized Housing Components

    Pressurized Housing Components The Pressurized Housing is comprised of a Housing, a Surveyor2000 Camera Drive and a Trim Ring/Lower Dome Assembly as shown in Figure 1. This assembly is the heart of every prepackaged Pressurized Housing version of the Surveyor2000 Camera Dome. With the addition of a mount, the Pressurized Housing version can be equipped for indoor or outdoor wall mount or pipe mounting.

  • Page 13: Installation

    Use the applicable sub-section to install the correct connector type included. Wall Mount Method Use this method to install, wire and configure a unit with a Vicon Wall Mount. Refer to Figure 2. Installing the Wall Mount 1. Select a suitable mounting location and verify there is sufficient cable to reach the end of the Wall Mount.

  • Page 14: Installing The Camera Dome

    Installing the Camera Dome 6. Place the Pressurized Housing’s carton insert with the hole on a solid surface face up. Refer to Figure 3. 7. Remove the Housing and press the Fill Valve’s pin to release any residual gas pressure. 8.
  • Page 15 15. Lift the Housing Assembly out of the carton, flip it over and shake it to remove any debris. Place it back in the carton. 16. Verfiy that the O-ring in the groove of the Housing Assembly’s seal surface is properly seated, free of debris and glistening with vacuum grease.

  • Page 16: Pressurizing The Housing Assembly

    Pressurizing the Housing Assembly 18. Lift the entire Housing Assembly off the carton, flip it upside down and place it back in the carton. 19. With the top of the Housing Assembly facing up, verify that the two (2) valves, one (1) switch and one (1) connector are installed, as shown in Figure 5.

  • Page 17: Installing The 23-Pin Connector Assembly

    Installing the 23-pin Connector Assembly (If the prefabricated 23-pin cable assembly was provided) 22. Remove the 23-pin Connector Assembly from the Accessory Kit. It should resemble the assembly of Figure 6. a. Identify the cables required for attaching to the 23-pin Connector Assembly.

  • Page 18: Wiring And Assembling The 23-Pin Connector

    Wiring and Assembling the 23-pin Connector (If the discrete 23-pin connector with crimp pins was provided) 22. Assemble the 23-pin Connector as shown in Figure 7. a. Identify the cables required for attaching to the 23-pin Connector. There should be a minimum of three (3), power (22 to 28 VAC), control (RS-422/485) and...

  • Page 19: Final Assembly

    g. Insert each labeled Crimp Connector into its respective labeled 23-pin Connector position (A, B, C, D….etc.). Verify that each is firmly seated. If it is desired to use the Low Pressure Switch dry contact outputs to trigger an internal alarm in the Camera Dome, use the following steps: Cut two (2) strips of 18 AWG wire about 1.5 in.

  • Page 20: Pipe Mount Method

    Pipe Mount Method Use this method to install, wire and configure a pipe mounted unit. Refer to Figure 8. Installing the Pipe Mount 1. Select a suitable mounting location and verify there is sufficient cable to reach the end of the Pipe Mount Mounting Flange.

  • Page 21: Installing The Camera Dome

    Installing the Camera Dome 6. Place the Pressurized Housing’s carton insert with the hole on a solid surface face up. Refer to Figure 9. 7. Remove the Housing and press the Fill Valve’s pin to release any residual gas pressure. 8.
  • Page 22 15. Attach the Housing’s Safety Cord to the Camera Drive’s Clip. Tilt the Camera Drive down and orient the three (3) outside slots in the mid-section PC board with the three (3) standoffs in the Housing and lower it until the three (3) captive screws touch the Housing’s standoffs. The slots will only line up one way. Tighten the screws.

  • Page 23: Pressurizing The Housing Assembly

    Pressurizing the Housing Assembly 19. Lift the entire Housing Assembly off the carton, flip it upside down and place it back in the carton. 20. With the top of the Housing Assembly facing up, verify that the two (2) valves, one (1) switch and one (1) connector are installed as shown in Figure 11.

  • Page 24: Installing The 23-Pin Connector Assembly

    Installing the 23-pin Connector Assembly (If the prefabricated 23-pin cable assembly was provided) 22. Remove the 23-pin Connector Assembly from the Accessory Kit. It should resemble the assembly of Figure 12. a. Identify the cables required for attaching to the 23-pin Connector Assembly.

  • Page 25: Wiring And Assembling The 23-Pin Connector

    Wiring and Assembling the 23-pin Connector (If the discrete 23-pin connector with crimp pins was provided) 22. Assemble the 23-pin Connector as shown in Figure 13. a. Identify the cables required for attaching to the 23-pin Connector. There should be a minimum of three (3), power (22 –...

  • Page 26: Final Assembly

    g. Insert each labeled Crimp Connector into its respective labeled 23-pin Connector position (A, B, C, D….etc.). Verify that each is firmly seated. If it is desired to use the Low Pressure Switch dry contact outputs to trigger an internal alarm in the Camera Dome use the following steps: Cut two (2) strips of 18 AWG wire about 1.5 in (38 mm) in length and prepare each as previously described in the cable preparation steps.

  • Page 27: Maintenance

    Maintenance The Pressurized Housing requires no scheduled maintenance; however, the Lower Dome requires occasional cleaning. Care and Cleaning of Clear Acrylic Domes 1. Always handle the Lower Dome by the flange and avoid touching the inside surface. 2. If dust or dirt accumulates in the Lower Dome's interior, remove it with clean dry pressurized air. 3.
  • Page 28 NOTES 18 • • • • Maintenance XX004 Rev 500 Surveyor2000 Pressurized Housing Camera Dome...

  • Page 29: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
  • Page 30 NOTES 20 • • • • Shipping Instructions XX004 Rev 500 Surveyor2000 Pressurized Housing Camera Dome...

  • Page 31: Reference

    CAUTION: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. In all cases, coaxial cable impedance should be 75 ohms.

  • Page 32: Twisted-Pair Cable

    Twisted-Pair Cable CAUTION: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. Materials Use a pure copper stranded conductor with or without a tin plating to obtain a low DC resistance. Do not use cable with either a steel or an aluminum stranded conductor because these do not transfer signals effectively for long distances.

  • Page 33: Technical Information

    EN-50082-1 generic immunity. MECHANICAL Application: Indoor or outdoor. Mounting: Vicon Wall Mount or 1-1/2 in. (38 mm) Vicon Pipe Mount. Seal Type: 1 O-ring, fabricated from Neoprene, 0.139 in. (3.5 mm) cord diameter and an EPDM (rubber) gasket. Mount Size/Thread: 4 threaded hole pattern (3.75 in./95 mm square) on top used for...
  • Page 34 Dimensions: See Table 4 and Figure 14. DOME HOUSING (D1) DOME (D2) HOUSING (H1) TOTAL HT. (H2) TYPE in./mm in./mm in./mm in./mm Pendant 9.80/249 13.00/330 8.25/210 14.00/355 Table 4 Figure 14 Pressurized Housing Dimensions Weight: 10.0 lb (3.9 kg). 14.5 lb (6.5 kg) with Surveyor2000 included. Construction: Plastic, aluminum and steel.
  • Page 35 ENVIRONMENTAL Ambient Temperature and Humidity Range: -30° F (-34° C) to 110° F (43° C) maximum. Up to 100% relative humidity, condensing. Maintained Temperature and Humidity Range: 14° F (-10° C) to 140° F (60° C) maximum. Up to 90% relative, non-condensing. Technical Information •...
  • Page 36 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Infofax: 800-287-1207 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom 44/(0) 1489/566300 Fax: 44/(0) 1489/566322 Brussels Office Planet II - Unit E...
