Kirisun PT2208 Instruction Manual
  1. Manuals
  2. Brands
  3. Kirisun Manuals
  4. Transceiver
  5. PT2208
  6. Instruction manual

Kirisun PT2208 Instruction Manual

Hide thumbs Also See for PT2208:
Table of Contents

Advertisement

Quick Links

See also: Manual

INSTRUCTION MANUAL

PT2208/3208

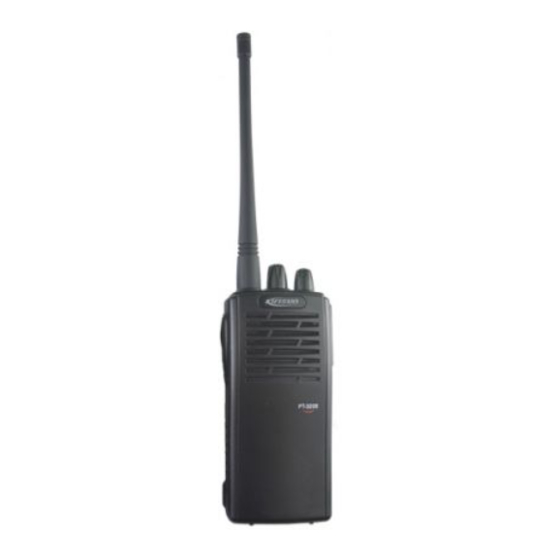

FM HANDHELD TRANSCEIVER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT2208 and is the answer not in the manual?

Questions and answers

Related Manuals for Kirisun PT2208

Summary of Contents for Kirisun PT2208

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL PT2208/3208 FM HANDHELD TRANSCEIVER...
  • Page 2 NOTE INSTRUCTION MANUAL PT2208/3208 FM HANDHELD TRANSCEIVER We are grateful you have chosen for your land mobile application. We believe this easy to use radio will provide dependable communication to keep personal operating at peak efficiency. radio incorporates the latest and advanced technology, so you will be pleased with this product quality and features.
  • Page 3 CAUTION: Before using your portable 2-way radio , read this important RF energy awareness and control information and operational instructions to ensure for compliance with the FCC's RF exposure guidelines. This radio is intended for use in occupational / controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits.

  • Page 4: Table Of Contents

    CONTENTS UNPACKING AND CHECKING EQUIPMENT UNPACKING AND CHECKING EQUIPMENT..........1 Carefully unpack the radio. We recommend that you SUPPLIED ACCESSORIES.................1 identify the items listed in the following table before dis- PREPARATION....................2 carding the packing material. If any damage has occurred CHARGING THE BATTERY PACK............2 during shipment, file a claim with the carrier immediately .

  • Page 5: Preparation

    PREPARATION Please do not charge the battery again if it is charged fully, otherwise, the life of the battery will be shortened or it will be CHARGING THE BATTERY PACK damaged. Connect the AC adaptor with charger properly, and then plug the adaptor into INSTALLING /REMOVING THE BATTERY PACK right electrical outlet, after that , the indicative light turns green.

  • Page 6: Installing The Antenna

    INSTALLING THE ANTENNA Insert the speaker/microphone plug into the speaker/microphone S c r e w t h e a n t e n n a i n t o t h e jacks. Attach the locking bracket with connector on the top of the radio by the supplied 3x6mm screw.

  • Page 7: Getting Acquainted

    5. MONITOR BUTTON GETTING ACQUAINTED Press the button for closing the SQUELCH, and release INDICATOR LIGHT or open. LED Lights red while transmitting; lights green while 6. MIC-SP JACKS receiving a signal; flashes red when the battery voltage is low If desired, connect a speaker/microphone here.

  • Page 8: Scan Function

    while receiving signals. The pausing time can be preset from Transmitting: 0.5 to 5 seconds. To make a call, press PTT, and speak in 2) Carrier wave control : normal voice, please hold the microphone 1.5 The radio will pause the scan after receiving signals and inches away from your mouth.

  • Page 9: Remarks

    any single person from using a channel to transmit for REMARKS: an extended period of the time. If you continuously transmit The above mentioned currently working channel means longer than the time limit preset by the distributor, the channel in which the radio holds on under the following four conditions.

  • Page 10: Battery Saving

    BATTERY SAVING MONITOR MOMENTARY The Battery Saving function decreases the power con- While pressing this key, green lamp lights and the squelch sumption when no signal being received and no operation un-mutes If a carrier is present, regardless of the specified being performed (no keys are being pressed , and no Signalling (including Option Signalling).

  • Page 11: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE STANDARD SPECIFICATION PT 2208 PT 3208 PT 3208 PROBLEM SOLUTION (1) 136 -150 (2) 450 - 470 ( 4 ) 440 - 470 FREQUENCY The battery pack may be (MHz) (2) 146 -174 (3) 420 - 450 (11) 470 - 512 exhausted.
  • Page 12 Selected channel or current working channel Prior channel Prior channel or current working channel 4.Monitor Key Monitor Momentary CE Versions of the PT2208/3208 which Monitor Toggle Squelch Off display the "CE" symbol on the serial 5.Time-Out-Timer number seal, comply with the essential...

  • Page 13: Declaration Of Conformity

    NOTE DECLARATION OF CONFORMITY 0681 We, Kirisun Electronics(Shenzhen) Co., Ltd. 6/F, Bldg. H-2, East Industrial Zone Of Overseas Chinese Town, Shenzhen 518053, China Declare on our sole responsibility that this equipment complies with the essential requirements of the Radio and Telecommunication Terminal Equipment Directive,1999/5/EC,and that any applicable Essential Test Suits measurement have been performed.

This manual is also suitable for:

Pt3208

Table of Contents
