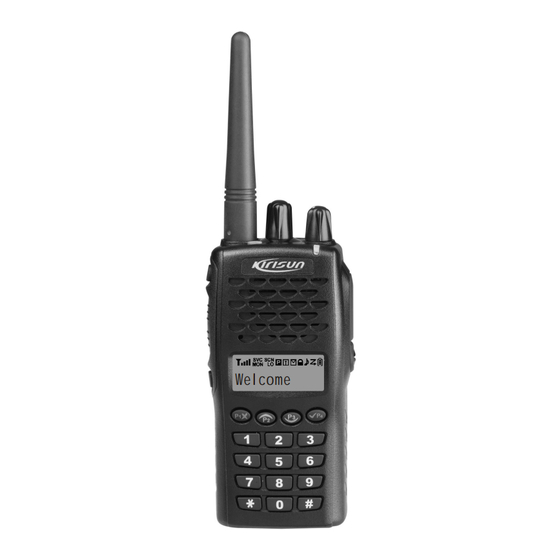

Summary of Contents for Kirisun PT6500

  • Page 1: Table Of Contents

    PT6500 User’s Manual PT6500 User’s Manual CONTENTS Unpacking and checking ■ ◆ Supplied accessories ■ Preparation Charging the battery ◆ Installing/Removing the battery pack ◆ Installing the antenna ◆ ■ Getting acquainted ■ Basic Operation ■ Programmable Button functions ■ VOX ■...
  • Page 2 PT6500 User’s Manual FCC Warning: PT6500-02 is a a occupational equipment. And it operate with a duty factor not exceeding 50%. The EUT cannot worn on the body. The us version of this transmitter operates solely on us frequencies. The user is not able to select on non-us frequencies.

  • Page 3: Unpacking And Checking

    PT6500 User’s Manual █ Unpacking and checking Unpack the transceiver carefully. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, please contact the dealer immediately.
  • Page 4 PT6500 User’s Manual Place the battery or transceiver into the charger slot, and make sure the transceiver has been turned off. Make sure the battery is well connected with charger, then the indicator turns red or flashes, then the charger gets in the state of charging automatically.

  • Page 5: Installing/Removing The Battery Pack

    PT6500 User’s Manual mode, recharge the battery before use. Do not power on by force, otherwise, its life will be shortened or it will be damaged. * There is a protection circuit in KB-36C battery, so the power will be cut off at too low battery.

  • Page 6: Installing The Antenna

    PT6500 User’s Manual Notes: * Do not cause short-circuit or throw the battery to the fire. * Do not disassemble the battery by your self. ◆Installing the antenna Screw the antenna into the connector at the top of the transceiver by holding the Button of the antenna and turn it clockwise until secure.
  • Page 7 PT6500 User’s Manual The functions of the components are as follows: A. LED Indicator Lights red while transmitting; Lights green while receiving a signal. B. Power/Volume Switch Turn clockwise till a click is heard to switch on the radio. Turn counterclockwise till a click is heard to switch off the radio.

  • Page 8: Basic Operation

    PT6500 User’s Manual Icon Description Signal intensity Compandor Disturbance Frequency Busy channel lockout Scanning Key lockout Signal reminder is programmed Battery volume, flashes when the battery power goes too low Basic Operation 1. Switch On Switch on the radio by turning the Power/Volume switch clockwise till a click is heard, then the radio will be in the state of stand by and you will hear a beep if the dealer has set it.
  • Page 9 PT6500 User’s Manual Select a Channel Rotate the channel selector to select channels. You will hear voice from the speaker while receiving proper signals. As shown in the above right figure: Zone 1 is the zone of current channel (8 zones from 0 to 7).
  • Page 10 PT6500 User’s Manual Receive a Call Release the PTT button to receive a call. Your dealer can set CTCSS, DCS, 2 Tone signaling on you radio channels by PC software. If you select a channel that has been preset with the tone signaling, you will not hear any other calls except those from your own system.
  • Page 11 PT6500 User’s Manual The operations are as follows: Set scanning: 1. As shown: in CH 1 , press , then utilities is shown; 2. Press , then scan is shown; 3. Press , then enter selecting scan; 4. Select Scan On or Scan Off with , then press to confirm it.
  • Page 12 PT6500 User’s Manual Set power level (high/middle/low): 1. As shown: in CH 1 , press , utilities is shown. 2. Press to enter select mode, 3. Press , then Power Level is shown, 4. Press to select, e.g., Power Low, 5.
  • Page 13 PT6500 User’s Manual 2. Press to enter select mode, 3. Press , and Scrambler is shown, 4. Press to select, e.g., Scrambler Off, 5. Select On or Off by , press to confirm. Set key tone： 1．As shown: in CH 1 , press , utilities is shown.
  • Page 14 PT6500 User’s Manual 1．As shown: in 1 , press to enter select mode, 2. Press , and Zone Edit is shown, 3. Press to select the zone mode, 4. Select Zone No with , press to confirm. Set call list：...
  • Page 15 PT6500 User’s Manual x FRQ 4. Press is shown, enter the set of Tx FRQ, 401 660000 5．Set the Tx FRQ value with the keypad, 6. Press to delete, and press to confirm. Set Rx CTCSS/DCS： 1．As shown: in CH...

  • Page 16: Programmable Button Functions

    PT6500 User’s Manual stands for the radix point, press ＃ to convert among CTCSS、DCS and reverse DCS. Set contact list： 1．As shown: in CH 1 , press to enter select mode, 2. Press , and contact list is shown, 3. Press to select, 4.
  • Page 17 PT6500 User’s Manual Contact list Power selector Show or hide the channel alias Busy Channel Lockout (BCL) Key lock Squelch level selector Companding Scrambler Battery power Zone Monitoring Cancel Squelch Emergency Alert Back light Rptr/Talkarnd Express select channel 1 Express select channel 2...
  • Page 18 PT6500 User’s Manual 2. Press once to quit. Notes: there are 8 zones from 0 (default zone) to 7; and there can be 128 channels to the most in each zone. There are totally 16 scan lists; you can select any scan list. Every scan list can scan any channels in different channels (16 channels to the most).
  • Page 19 PT6500 User’s Manual Zone 0 M will be shown, CHANNEL 1 Zone 0 H 3. Press it a third time， CHANNEL 1 will be shown. ●Busy Channel Lockout (BCL) Busy Channel Lockout can prevent you from interfering other radios that using the same channel.
  • Page 20 PT6500 User’s Manual Select squelch level with , e.g.: Level Level Level 3. Press to confirm. ●Companding Enter the Companding mode when press the key programmed as “Companding”, It can be set as: short key: Companding, long key：off. ▲ 1. Press the programmable key once to open the Companding mode,...
  • Page 21 PT6500 User’s Manual 1. Press the programmable key once: the battery power will be shown, 2. Press again: close the display. ● Monitoring Press the programmed as “monitor trigger” to shut up the CTCSS、 DCS、 2Tone and DTMF signal, and you can listen to the signals can not be heard in normal operation, press the key again to return to normal operation.
  • Page 22 PT6500 User’s Manual ●Rptr/Talkarnd When press the key programmed as “Rptr/Talkarnd”, the next transmission will be at the same frequency as at which it is received. ▲It can be set as: short key: Rptr/Talkarnd, long key：off. 1. Press the key once,...

  • Page 23: Vox

    PT6500 User’s Manual 3. Press to confirm. ●Manual programming The dealer can open the manual programming rights of: Channel frequency set, CTCSS，DCS. Basic operations of programmable keys: You can set the programmable keys with the “key set” in PC software, as follows: ▲It can be set as: short key: display channel...

  • Page 24: Time-Out Timer（Tot

    PT6500 User’s Manual VOX gain level to proper sensitivity. ■ Auxiliary Functions) Time-out Timer (TOT) ◆ TOT timer: Time-out timer can prevent any caller from occupying one certain channel for an extended period of the time. The radio is set with a continuously transmitting limit. If the radio is continuously transmitting longer than...

  • Page 25: User's Resolution

    PT6500 User’s Manual from other irrelevant parties who are using the same channel. When you receive a signal that has a tone different from the one set on your radio, you will not hear the signal. Likewise, signals that you transmit will only be received by parties whose CTCSS/DCS tones are the same as yours.

  • Page 26: 2Tone Signaling

    PT6500 User’s Manual ◆2TONE signaling The dealer can set this function by programming. There are 4 systems of which the parameters can be set, e.g.: the duration of the first and the second tone, the duration of the long tone and audio spacing, etc. Select the audio frequency（3106.0～...

  • Page 27: Major Specifications

    PT6500 User’s Manual B．The CTCSS/DCS signaling of both users are not the same, set it with PC. C．Beyond the efficient communication range. No signal A．Make sure the antenna is well connected. B．Low sensibility, trimming “computer test mode”。 C．HF amplifier may be broken, replace it.

  • Page 28: Status Setting

    PT6500 User’s Manual 1st MF：51.65MHz 2nd MF：450kHz Working Voltage 7.5V cathode Grounding Working -25 ~ +55 ℃ ℃ Temperature Antenna 50Ω Battery (Standard) Model：KB-36C，li-ion battery DC 7.4V , 1750mAh Model time of use：8 hours （5：5：90 period） Dimensions 56X120X35mm Weight 413（with battery and antenna）...
  • Page 29 PT6500 User’s Manual On □ Off □ 2．4 Battery saving： Off □ 1：1 □ 1：2 □ 1：4 □ uxiliary functions button setting: Top button Side button1 None □ □ None □ □ Voice reporting selector Voice reporting selector □ □...
  • Page 30 PT6500 User’s Manual Squelch open/Cancel □ Lock key □ Companding □ Scrambler □ Battery volume □ Page 30 of 30...
