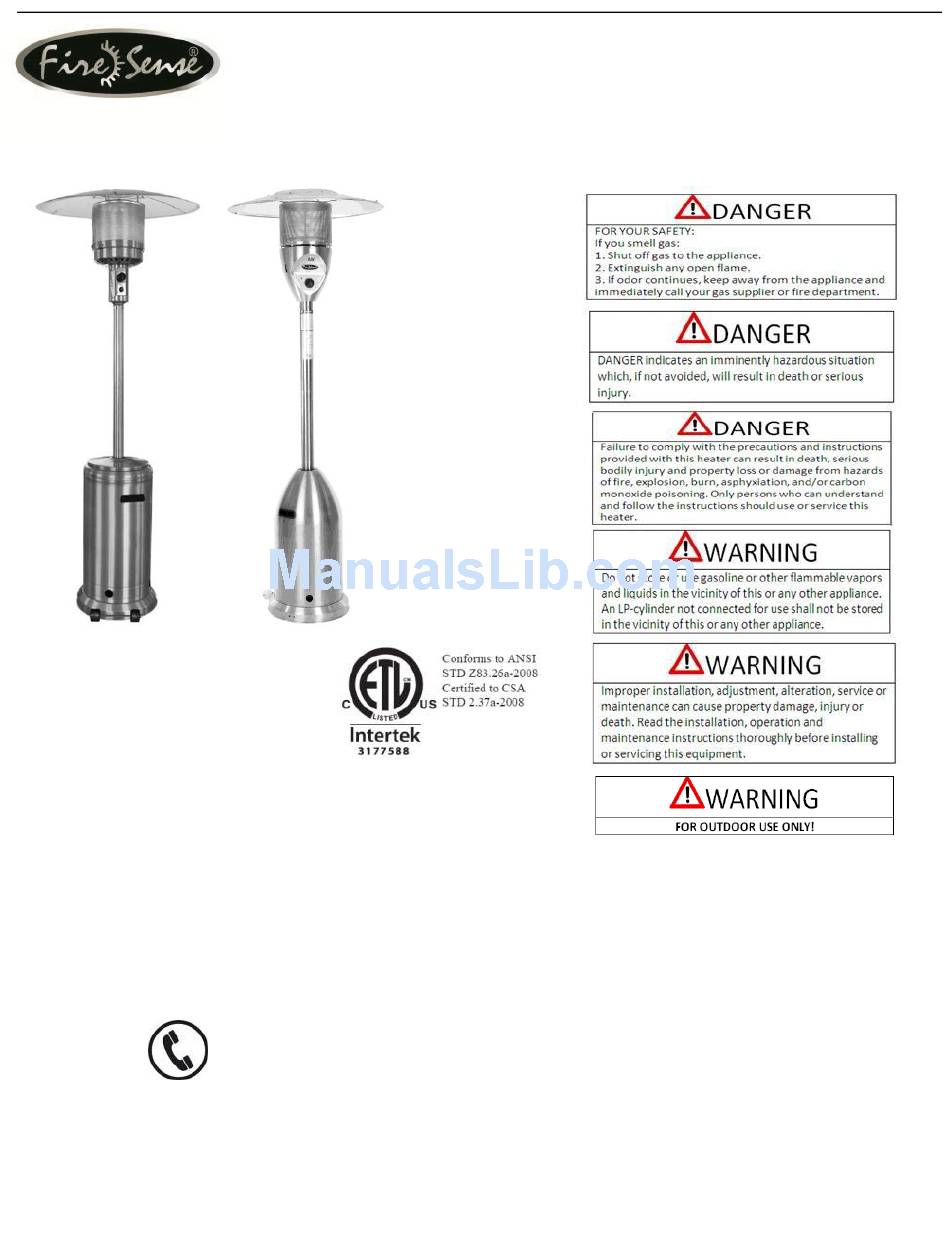

XL Series Patio Heater
Instruction Manual
ATTACH YOUR RECEIPT HERE
Serial Number ______________
Questions, problems, missing parts? Before returning to your
retailer, call our customer service hotline at 1-866-985-7877,
9 a.m. – 6 p.m., EST, Monday – Friday or email at
cservice@welltraveled.net.
Model# PH01-S, PH01-SS
Supplier
Item # 61587,61588,61589,61590,61591,61592,61593
61594,61595,61600,61601
Purchase Date _____________
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH01-S XL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fire Sense PH01-S XL Series

Summary of Contents for Fire Sense PH01-S XL Series

  • Page 1 XL Series Patio Heater Instruction Manual Model# PH01-S, PH01-SS Supplier Item # 61587,61588,61589,61590,61591,61592,61593 61594,61595,61600,61601 ATTACH YOUR RECEIPT HERE Serial Number ______________ Purchase Date _____________ Questions, problems, missing parts? Before returning to your retailer, call our customer service hotline at 1-866-985-7877, 9 a.m.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents………………………………….....Page 2 Before You Begin............Page 2 Safety Information............Page 3-4 Package Contents………………………………….....Page 5 Hardware Contents............Page 6 Assembly.................Page 7-16 Operating Instructions……………........Page 16-19 Care and Maintenance……………………......Page 19-20 Troubleshooting……………………………………......Page 21 Replacement Parts List.............Page 22 Warranty Information……………........…Page 23 BEFORE YOU BEGIN Please read and understand this entire manual before attempting to assemble, operate or install this appliance.

  • Page 3: Safety Information

    SAFETY INFORMATION...
  • Page 4 SAFETY INFORMATION...

  • Page 5: Package Contents

    PACKAGE CONTENTS ASSEMBLY PART DESCRIPTION Reflector 3 outer pcs and 1 center cap Head Assembly Gas Hose 1 pc (attached to head assembly) Post Assembly 2 pcs Regulator Tank Housing Post Support Support Legs 3 pcs Base Sand/Waterbox 1 (pre-assembled to base) LPG Cylinder Holder 1 pc (hardware is pre-assembled Wheel Assembly...

  • Page 6: Hardware Contents

    HARDWARE CONTENTS Blister Pack Hardware Contents: (Packaged inside the top section of the Heater Carton) Zip Lock Bag Hardware Contents: (Packaged inside the Heater Carton) 4-PC Reflector Hardware Bag: (Packaged with the 4-Pc reflector panels)

  • Page 7: Assembly

    Otherwise please refer to the troubleshooting guide on page 21 of this manual for further assistance.  Sand (25 Lbs) for filling the Sand/Waterbox: Your Fire Sense XL Series patio heater comes standard with an empty PVC Sand/Waterbox container which is pre-assembled to the heater base. Once filled with sand, this weighted container will add approximately 25 lbs.
  • Page 8 ASSEMBLY Step 1 Sand/Waterbox assembly: Your XL Series patio heater comes standard with an empty PVC Sand/Waterbox container which is preassembled to the heater base. Once filled with sand and topped off with water/windshield washer fluid, this weighted container will add approximately 30 Lbs. to the base of the heater providing extra stability and safety. Hardware Used: None Disassemble the Sand/Waterbox container from the base: a) Please disassemble the 3) (tall) Leg support posts which are preassembled to the heater base by removing the...
  • Page 9 ASSEMBLY 2) Insert 2) M6x12 Bolts (J) through the holes in each bracket and through the holes in the base. 3) Attach an M6 flat washer (K) and an M6 nut (L) to the end of each bolt on the underside of the base and tighten with a wrench. TIP: You may find it easier to attach the cylinder brackets by first removing the preassembled M8x25 cylinder bolts (I) from the brackets.
  • Page 10 ASSEMBLY Step 4: Reassemble the fully-filled Sand/Waterbox container to the heater base: Hardware used: None (Note: All hardware used to complete Step 4 was originally preassembled to the components) Position the heater base (which is now fully assembled with the wheels and cylinder brackets attached) over the fully filled Sand/Waterbox and reinstall the 4 bolts and nuts which were removed during step #1.
  • Page 11 ASSEMBLY Step 6: Install post support bracket to the top of the 3 leg supports Hardware Used: A: Qt 6) M6x30 Bolt B: Qt 6) M6 Flat Washer C: Qt 6) M6 Nut M: Qt 6) M6 Lock Washer a) Place the Post Support Bracket (7) on top of the 3 assembled Support Legs and align the holes in the Post Support with the holes in the Support Legs.
  • Page 12 ASSEMBLY Step 8: Attach the top section of 2-pc post to the bottom section Hardware Used: None Attach the top section of the 2-pc post assembly to the bottom section by screwing the top section clockwise onto the bottom section of the post assembly until the connection is tight.
  • Page 13 ASSEMBLY Step 11: Install burner head assembly to the top of the post Tip: A safe and sturdy ladder will come in handy for the remaining installation steps Hardware Used: E: Qt 3) M8x90 Barrel Bolts a) Raise the table assembly (if installed in step 10) to approx. 6” below the top of the post.
  • Page 14 ASSEMBLY Step 12: Assemble the 4-pc Reflector Dome Top Tip: To watch a helpful 2 minute instructional video demonstrating how to easily assemble the 4-pc reflector top, please to go to www.youtube.com and search for:“How To Assemble A Firesense Patio Heater Reflector Hood”.
  • Page 15 ASSEMBLY Step 13: Install the Assembled Reflector Dome to the top of the Burner Head Assembly Hardware Used: F: Qt 3) M8 Wing Nut G: Qt 6) M8 Flat Washer a) While supporting the heater, slide 1) M8 Flat Washer (G) over each of the 3 Barrel Bolts (E) on the top of the Head Assembly, then slide the assembled Reflector over the 3 Barrel Bolts.

  • Page 16: Assembly

    ASSEMBLY Step 15: Secure the bottom of the LP Tank/Cylinder to the Base of the Heater Hardware Used: None Place the LP Tank/Cylinder onto the base of the heater and secure the Base to the Tank by evenly tightening the 3) M8x25 Bolts (I) which were originally preassembled to the 3 LPG Cylinder Brackets (H) which were thereafter assembled to the inside floor of the base during Step #2.

  • Page 17: Operating Instructions

    OPERATING INSTRUCTIONS Leak Test 1. Make 2-3 oz. of leak test solution (one part liquid dishwashing detergent and three parts water). 2. Apply several drops of solution where hose attaches to regulator. 3. Apply several drops of solution where regulator connects to cylinder. 4.
  • Page 18 OPERATING INSTRUCTIONS Lighting: NOTE: NOTE: For initial start-up or after any cylinder change, hold the Control Knob in for 2 minutes to purge air from all gas lines before proceeding. When lighting the burner make sure that the Control Knob is held in while pressing the igniter button.

  • Page 19: Care And Maintenance

    OPERATING INSTRUCTIONS Operation Checklist: For a safe and pleasurable heating experience, perform this check before each use: Before Operating: 1. I am familiar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact and operable. 3.
  • Page 20 CARE AND MAINTENANCE  Heater makes popping noise.  Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.

  • Page 21: Troubleshooting

    TROUBLESHOOTING If you have any questions regarding this product, please call our customer service hotline at 1-866-985-7877, 9a.m. – 6 p.m. (EST), Monday – Friday, or email us at cservice@welltraveled.net. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Gas valve may be off Turn gas valve ON Fuel tank may be empty Refill LPG tank...

  • Page 22: Replacement Parts List

    REPLACEMENT PARTS LIST ASSEMBLY For questions regarding this product or to purchase replacement parts, please call our customer service hotline at 1-866-985-7877, 9a.m. – 6 p.m. (EST), Monday – Friday, or email us at cservice@welltraveled.net. PART DESCRIPTION Reflector 3 outer pcs and 1 center cap Head Assembly Gas Hose 1 pc (attached to head assembly)

  • Page 23: Warranty Information

    Customer Service Hours: Mon. – Fri. 9:00 a.m. – 6:00 p.m. (EST) Fire Sense®, Mojave Sun ®, and Well Traveled Living® are registered trademarks of Well Traveled Imports, Inc®. All assembly instruction presentations are the property of Well Traveled Imports, Inc.® and are protected by U.S. copyrights...
