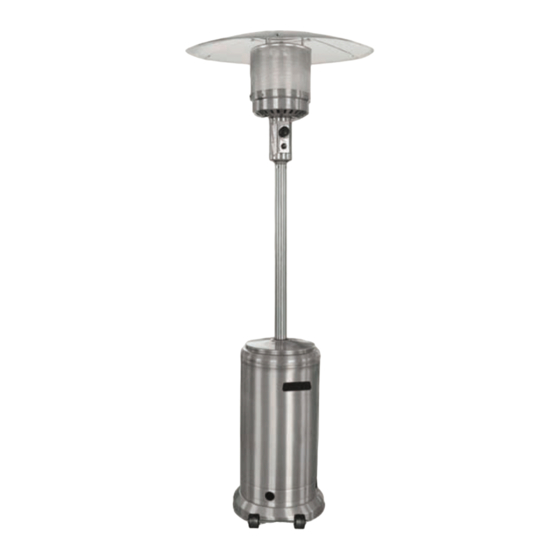

Patio Heater
Instruction Manual & Parts List
INSTALLER: Please leave this manual for the consumer.
CONSUMER: Please retain this manual for future reference.
Manufacturer: Changzhou Wellife Furnace Co., Ltd.
Model: PH01-S PH01-SS
Item numbers: 61185
WARNING: For outdoor use only.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, immediately
call gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors or liquids
in the vicinity of this or any other
appliance.
PLEASE retain this manual for
reference
Intertek
- 1 -
.
CERTIFICATE TO
ANSI 83.26a-2008
CONFORM TO CSA
2.37a-2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH01-S and is the answer not in the manual?

Questions and answers

Related Manuals for Fire Sense PH01-S

Summary of Contents for Fire Sense PH01-S

  • Page 1 CERTIFICATE TO ANSI 83.26a-2008 CONFORM TO CSA 2.37a-2008 Intertek Instruction Manual & Parts List INSTALLER: Please leave this manual for the consumer. CONSUMER: Please retain this manual for future reference. Manufacturer: Changzhou Wellife Furnace Co., Ltd. - 1 -...

  • Page 2: Tools And Parts Needed For Assembly

    Tools and parts needed for assembly DANGER CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. Tools needed: Improper installation, adjustment, WARNING:...
  • Page 3 PRECAUTIONS NOTE: PLEASE READ THE FOLLOWING SAFETY RULES WARNING: This heater must only be used outdoors. Using this product in an enclosed area may cause injury, death or property damage. Only use in a well-ventilated space. Do not use in a building, garage, or any other enclosed area.
  • Page 4 PRECAUTIONS CHECK THE HEATER IMMEDIATELY IF ANY OF THE FOLLOWING EXIST: 1. The smell of gas in conjunction with extreme yellow colored tips of the burner flames. 2. The heater does not reach temperature. 3. The burner makes a popping noise during use (a slight popping noise is normal when the burner is extinguished after using).
  • Page 5 ASSEMBLY 1. 3 pcs castle nuts 2. Reflector 3. 6 pcs 8mm washers for pins support 4. 3 pcs 90mm (L) pins for reflector support 5. Head assembly 6. 4 pcs M6x10mm bolts 7. 2 pcs Post assembly 8. Tank housing 9.
  • Page 6 ASSEMBLY ATTACHING WHEEL ASSEMBLY Step 1 1-1. Locate Wheel Assembly (17) and 2 nuts/bolts Fig. 1 contained in plastic bag with Wheel Assembly (Fig. 1). Step 2 2-1. Turn Base (15) so that holes for attachment of Fig. 2 Wheel Assembly are facing you (Fig. 2). 2-2.
  • Page 7 ASSEMBLY WARNING: This appliance requires installation by a competent person. Proper assembly is the responsibility of the installer. Step 1 1-1. Attach 3pcs LPG cylinder fixed parts on the base with 6pcs M6x12mm bolts and M6 washers and 6mm nuts. 1-2.
  • Page 8 ASSEMBLY Step 3 3-1. Connect the second piece of the post assembly to the first piece of the post assembly and screw on clockwise. Step 4 4-1. Place the tank cover on the base. Step 5 5-1. Secure the 3 pcs 90mm pins(reflector support bolts) on the cap of emitter screen.
  • Page 9 ASSEMBLY Reflector (#2) is comprised of 3 – outer pieces and 1 – center piece. Locate all 4 pieces of Reflector (#2) which are wrapped in bubble wrap. Unwrap and remove all pieces and peel off the protective blue plastic on each piece. Locate 9 bolts and 9 cap nuts in the plastic bag.
  • Page 10 ASSEMBLY Step 6 6-1. Put 8mm washer on each reflector support bolt. 6-2. Fasten the reflector with 3 pcs washers and 3 pcs M8 mm castle nuts. Step 7 7-1. Lift the tank cover and rest it on the post flange. 7-2.

  • Page 11: Check For Leak

    ASSEMBLY 7-4. Lower tank over gas cylinder and down to cover base. Check for Leak Your patio heater has been checked at all factory connections for leaks, but you should always check when you attach the LPG cylinder. To check for leaks, following these instructions: --Assemble all gas connections;...
  • Page 12 ASSEMBLY 8) If bubbles still appear, close the propane tank valve and contact your gas supplier. If a leak is detected , DO NOT attempt to use the heater. MAKE SURE to check all THREE connections between the cylinder and gas line.

  • Page 13: Before Turning Gas Supply On

    ASSEMBLY C. Spoon several drops (or use squirt bottle) of the solution onto gas hose connection and pilot connection. D. Inspect the connections and look for bubbles. E. If no bubbles appear, the connection is safe. F. If bubbles appear, there is a leak. Close the propane tank valve and loosen and re-tighten this connection.

  • Page 14: Lighting Instructions

    OPERATION LIGHTING INSTRUCTIONS TO TURN ON THE HEATER: 1. Turn the control knob “OFF”. 2. Open gas valve fully. 3. Press and turn the control knob to “HI” position (counterclockwise 90° ). Press down the control knob and hold 3-5 seconds. While holding down the control knob, press the igniter button several times until the pilot flame ignites.
  • Page 15 OPERATION CAUTON: Avoid inhaling fumes emitted from the heater’s first use. Smoke and odor from the burning of oils used in manufacturing will appear. Both smoke and odor will dissipate after approximately 30 minutes. The heater should not produce thick black smoke. Note: The burner may be noisy when initially turned on.
  • Page 16 LOCATION OF HEATER WHILE IN USE CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT UNDER THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE SERIOUSLY DAMAGED. This heater is to be used for the heating of outdoor patios, decks, spas, pool, and open working areas.

  • Page 17: Cleaning And Maintenance

    MAINTENANCE WARNING CLEANING AND MAINTENANCE FOR YOUR SAFETY DO NOT touch or move To enjoy years of outstanding performance from your heater for at least 45 heater, make sure you perform the following maintenance minutes after use. on a regular basis: Allow all burner elements to cool before touching.

  • Page 18: Troubleshooting

    Carbon build-up Dirt or film on reflector Clean reflector flame and flame screen screen Manufacturer: Changzhou Wellife Furnace Co. Ltd. Xinqiao Village, Zouqu Town, Wujin District, Changzhou City Jiangsu Province, China Tel: 86-519-83310111 Fax: 86-519-83311577 www.globalwellife.com - 18 -...
  • Page 19 Distributed By: Web: www.wtliving.com Well Traveled Living 716 S 8 th Street Email:cservice@welltraveled.net Amelia Island, FL 32034 Toll Free: 866-WTL-SUPP 1 YEAR LIMITED WARRANTY – Customers in the Continental US All components are warranted for a period of 1 year after date of purchase by the original owner against defects in materials and workmanship under normal use.
