Outdoor Patio Heater
INFRARED BURNER
Model # LIP-10A-TGG
Item # 60950
ATTACH YOUR RECEIPT HERE
Serial Number ___________
Manufacturer: Changzhou Wellife Furnace Co., Ltd
Questions, problems, missing parts? Before returning to your
retailer, call our customer service hotline at 1-866-985-7877,
9 a.m. – 6 p.m., EST, Monday – Friday or email at
cservice@welltraveled.net.
Purchase Date ______
.
1
Advertisement
Table of Contents
Related Manuals for Fire Sense 60950
Summary of Contents for Fire Sense 60950

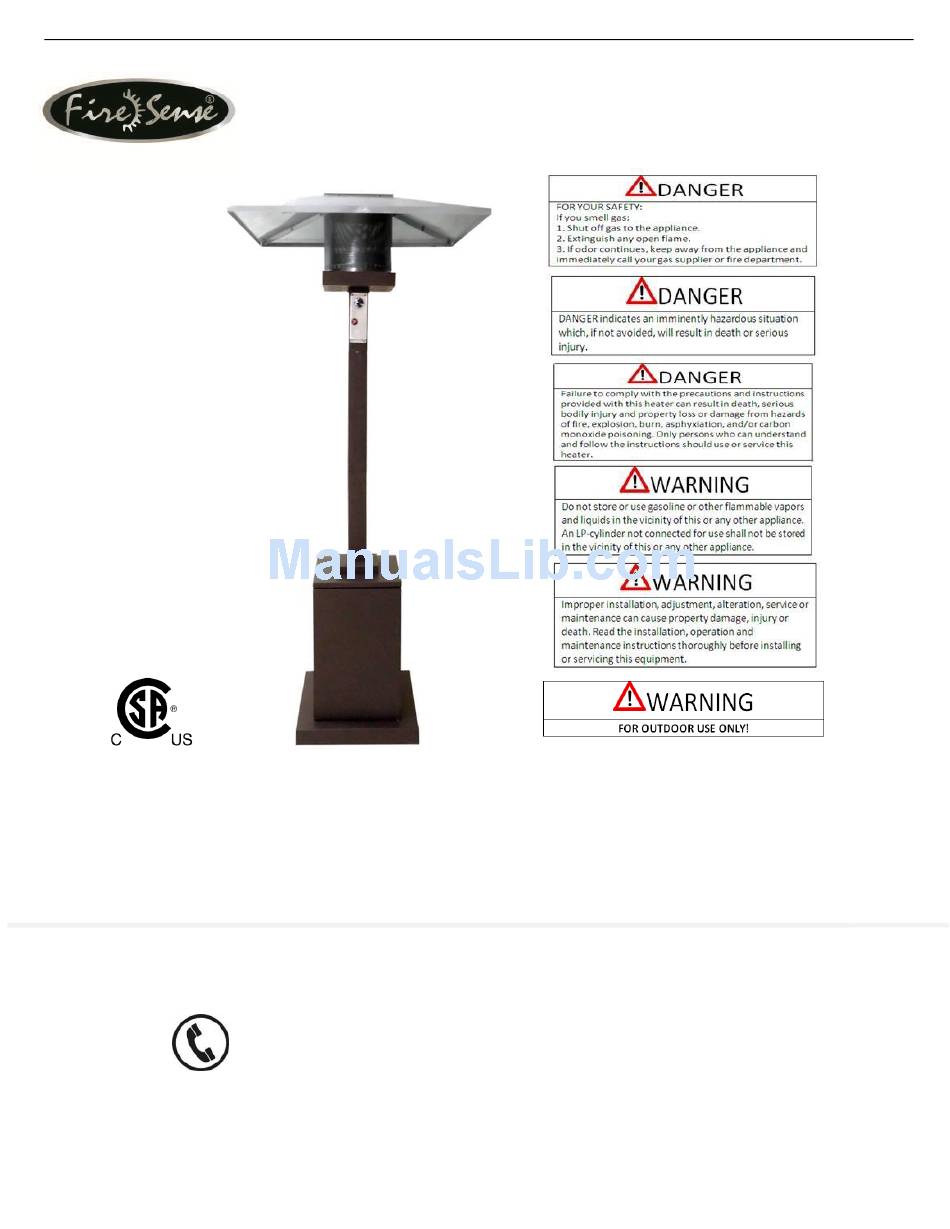

- Page 1 Outdoor Patio Heater INFRARED BURNER Model # LIP-10A-TGG Item # 60950 ATTACH YOUR RECEIPT HERE Serial Number ___________ Purchase Date ______ Manufacturer: Changzhou Wellife Furnace Co., Ltd Questions, problems, missing parts? Before returning to your retailer, call our customer service hotline at 1-866-985-7877, 9 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents………………………………….....Page 2 Before You Begin............Page 2 Safety Information............Page 3-4 Package Contents………………………………….....Page 5 Hardware Contents............Page 6 Assembly.................Page 6-10 Operating Instructions……………........Page 11-14 Care and Maintenance……………………......Page 14 Troubleshooting……………………………………......Page 15 Replacement Parts List.............Page 16 Warranty Information……………........…Page 17 BEFORE YOU BEGIN Please read and understand this entire manual before attempting to assemble, operate or install this appliance. -
Page 3: Safety Information
SAFETY INFORMATION... - Page 4 SAFETY INFORMATION...
-
Page 5: Package Contents
PACKAGE CONTENTS ASSEMBLY PART DESCRIPTION Reflector Panel and 5 pcs (packed in 2 Center Cap inner ctns) Head and Upper Post Assembly 1 (attached to Gas Hose Head Assembly) Regulator Lower Post 1 (packed under Post Support Plate Tank Housing Assembly) Tank Housing Assembly... -
Page 6: Hardware Contents
HARDWARE CONTENTS ASSEMBLY ASSEMBLY PREPARATION Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package contents list and hardware contents as listed on pages 5 and 6 of this manual. If any part is missing or damaged, do not attempt to assemble this product. -
Page 7: Assembly
ASSEMBLY 1. Locate Tank Housing Assembly (G) and Tank Housing Support Bar (H). Attach Tank Housing Support Bar (H) to the top front edge of the Tank Housing Assembly (G) with 2 M4x10 (GG) Countersunk Head Screws (screws come pre-assembled in the Tank Housing Support Bar.) Hardware Used: 2 x GG, Countersunk Head Screw M4x10 2. - Page 8 ASSEMBLY Attach the Post Support Plate (F)/Lower Post (E) to the Tank Housing Assembly (G/H). (NOTE: Make sure Firesense logo is facing ® forward directly over the Tank Housing Support Bar.) Align the holes in the Post Support Plate (F) With the holes in the top of the Tank Housing Assembly (G/H) and insert a total of 12 M4x10 (CC) bolts into the holes and loosely tighten.
- Page 9 ASSEMBLY 5. Carefully route the Gas Hose (C) that comes attached to Head and Upper Post Assembly (B) completely through the Lower Post/Post Support Plate Assembly (E/F). (Hint: Control knob on Head Assembly should be located over the Tank Housing Door.) 6.
- Page 10 ASSEMBLY 8. While supporting heater, tilt the Head and Upper Post Assembly (B) and screw in the 3 M8x66 Stud Bolts (BB) into the holes on top of the Head Assembly. Slide the assembled Reflector over the 3 bolts that now extend from the Head Assembly.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS A minimum supply pressure of .5 psi is required for the purpose of input adjustment of propane gas. Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. A cylinder must be stored outdoors in a well-ventilated area out of the reach of children. A disconnected cylinder must have dust caps tightly installed and must not be stored in a building, garage, or any other enclosed area. - Page 12 OPERATING INSTRUCTIONS 3. If leak is detected at regulator/cylinder valve connection, disconnect, reconnect, and perform another leak test. If you continue to see bubbles after several attempts, cylinder valve is defective. Call our customer service hotline at 1-866-985-7877, 9 a.m. – 6 p.m., EST, Monday – Friday IF NO BUBBLES APPEAR AT ANY CONNECTION, THE CONNECTIONS ARE SECURE.
- Page 13 OPERATING INSTRUCTIONS When Heater is ON: Emitter screen will become bright red due to intense heat. The color is more visible at night. Burner will display tongues of blue and yellow flame. These flames should not be yellow or produce thick black smoke, indicating an obstruction of airflow through the burners.
-
Page 14: Care And Maintenance
OPERATING INSTRUCTIONS After Operation: 1. Gas control knob is in OFF position. 2. Gas tank valve is OFF. 3. Disconnect gas line. CARE AND MAINTENANCE To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis: Keep exterior surfaces clean. -
Page 15: Troubleshooting
TROUBLESHOOTING If you have any questions regarding this product, please call our customer service hotline at 1-866-985-7877, 9a.m. – 6 p.m. (EST), Monday – Friday, or email us at cservice@welltraveled.net. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Gas valve may be off Turn gas valve ON Fuel tank may be empty Refill LPG tank... -
Page 16: Replacement Parts List
REPLACEMENT PARTS LIST ASSEMBLY For questions regarding this product or to purchase replacement parts, please call our customer service hotline at 1-866-985-7877, 9a.m. – 6 p.m. (EST), Monday – Friday, or email us at cservice@welltraveled.net. PART DESCRIPTION Reflector Panel and 5 pcs (packed in 2 Center Cap inner ctns) -
Page 17: Warranty Information
Customer Service Hours: Mon. – Fri. 9:00 a.m. – 6:00 p.m. (EST) Fire Sense®, Mojave Sun ®, and Well Traveled Living® are registered trademarks of Well Traveled Imports, Inc®. All assembly instruction presentations are the property of Well Traveled Imports, Inc.® and are protected by U.S. copyrights...
