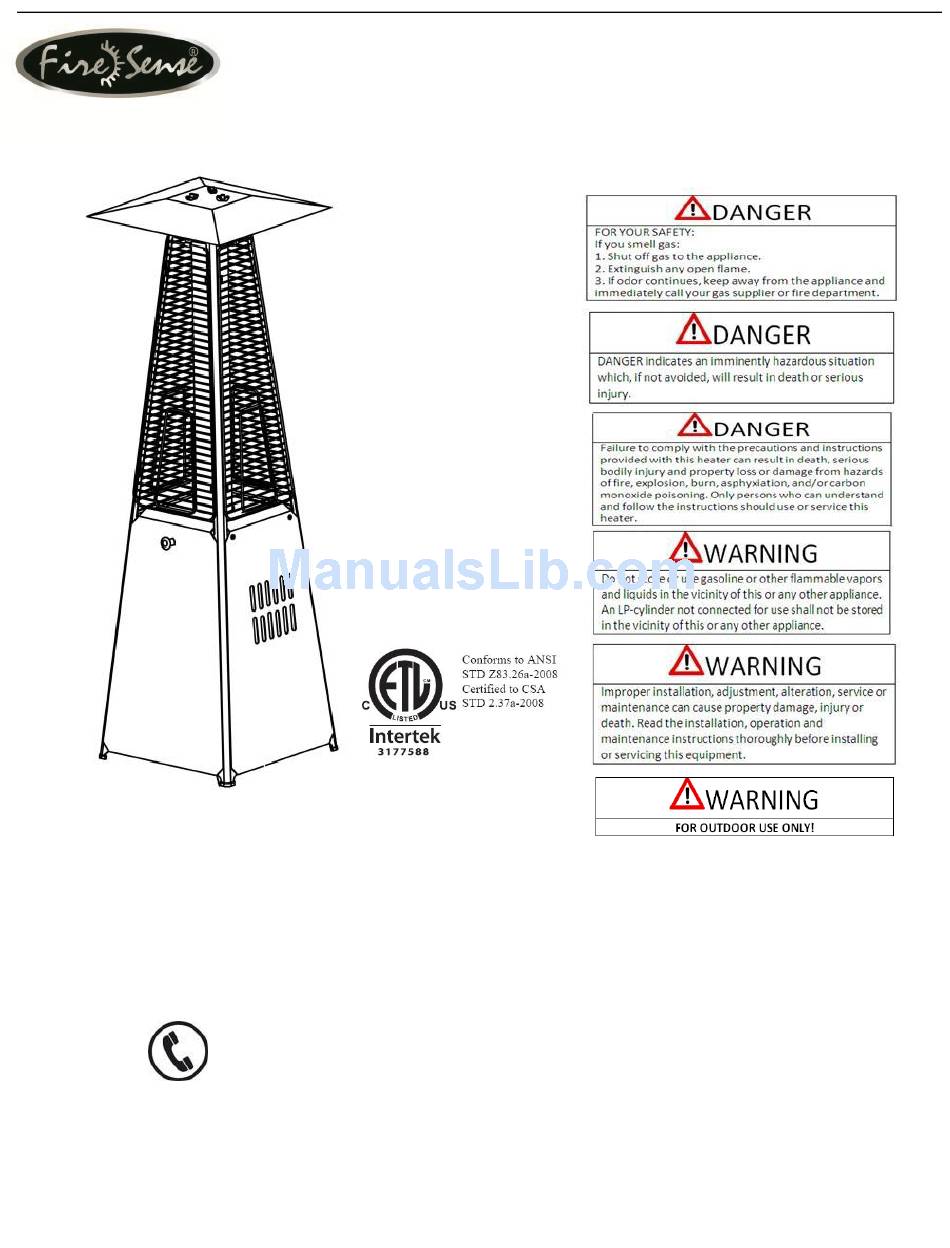

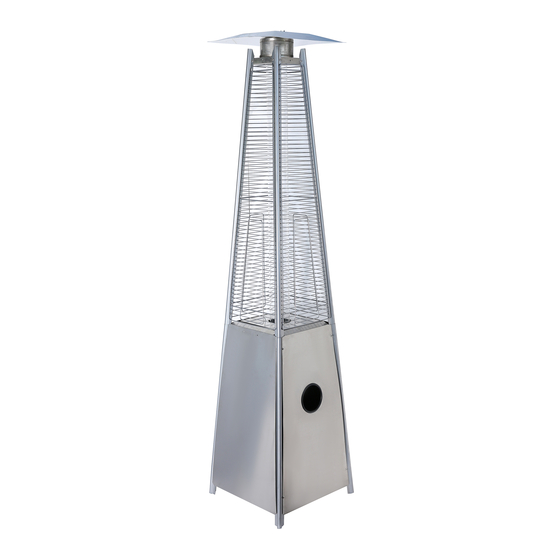

Outdoor Patio Heater
Instruction Manual
ATTACH YOUR RECEIPT HERE
Serial Number ______________
Questions, problems, missing parts? Before returning to your
retailer, call our customer service hotline at 1-866-985-7877,
9 a.m. – 6 p.m., EST, Monday – Friday or email at
cservice@welltraveled.net.
Model# PH08-SB & PH08-SSB
Item # 61220, 61221
Purchase Date _____________
1
Advertisement
Table of Contents
Related Manuals for Fire Sense PH08-SB
Summary of Contents for Fire Sense PH08-SB
- Page 1 Outdoor Patio Heater Instruction Manual Model# PH08-SB & PH08-SSB Item # 61220, 61221 ATTACH YOUR RECEIPT HERE Serial Number ______________ Purchase Date _____________ Questions, problems, missing parts? Before returning to your retailer, call our customer service hotline at 1-866-985-7877, 9 a.m. – 6 p.m., EST, Monday – Friday or email at...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents………………………………….....Page 2 Before You Begin............Page 2 Safety Information............Page 3-4 Package Contents………………………………….....Page 5 Hardware Contents............Page 6 Assembly.................Page 6-11 Operating Instructions……………........Page 12-15 Care and Maintenance……………………......Page 15 Troubleshooting……………………………………......Page 16 Replacement Parts List.............Page 17 Warranty Information……………........…Page 18 BEFORE YOU BEGIN Please read and understand this entire manual before attempting to assemble, operate or install this appliance. -
Page 3: Safety Information
SAFETY INFORMATION... - Page 4 SAFETY INFORMATION...
-
Page 5: Package Contents
PACKAGE CONTENTS ASSEMBLY PART PART NAME DESCRIPTION/ LOCATION Tank Housing Pre-assembled Assembly Tank Housing Assembly contains cartons with parts listed below Stability Ring Taped to the carton labeled "Aluminum Tubes" Aluminum Tubes 8 pcs/4 Located in carton sets labeled "Aluminum Tubes"... -
Page 6: Hardware Contents
HARDWARE BAG CONTENTS ASSEMBLY PREPARATION Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package contents list as listed on page 5 of this manual. If any part is missing or damaged, do not attempt to assemble this product. - Page 7 ASSEMBLY Locate the Tank Housing Assembly (1). Open the front panel and remove the cartons containing all parts needed for assembly. Note: Each carton will be labeled. 2. Locate the Stability Ring (2) and attach it to the base with the 3 bolts and nuts provided in the bag with the Stability Ring.
- Page 8 ASSEMBLY Locate the Aluminum Tubes (4). Remove 8 pieces/4 sets of tubes. There will be 4 pieces of tubes that have a rod protruding from one end and 4 pieces of tubes WITHOUT the protrusion. To fit tubes together, locate the piece WITHOUT the protrusion and make sure there is a small hole at the bottom of the tube. Then locate a tube WITH the protrusion and slide the protruding rod into the end of the other tube until the two holes align.
- Page 9 ASSEMBLY 7. Locate the Reflector (5). Lean the heater slightly over and attach the Reflector to the Damper using 3 – M3x16 (C) screws. 8. Locate the Glass Tube (6) (2 pcs/1 set), Stainless Steel Ring (7) and Rubber Ring (B). Connect the 2 pcs. of the Glass Tube with the Stainless Steel Ring by gently inserting one end of the ring into one piece of the tube and then repeat with the other tube so you have joined the 2 pcs.
- Page 10 ASSEMBLY 10. Locate the Mesh Guards (8)--8 pieces/4 sets. There will be 4 pieces that are narrow and 4 pieces that are wider (Fig A). Begin with the wider pieces and hang them with the hook attached to the mesh guards onto the assembled Aluminum Tubes (there are 4 oblong holes in each tube—2 at the top and 2 at the bottom –...
-
Page 11: Assembly
ASSEMBLY 13. The heater is now assembled and ready for leak testing and use. 14. The LPG tank is sold separately. Use a standard 20 lb. propane tank only. Open the front panel of the Tank Housing Assembly and connect the Gas Regulator to the LPG tank. Do not cross thread. -
Page 12: Operating Instructions
OPERATING INSTRUCTIONS A minimum supply pressure of .5 psi is required for the purpose of input adjustment of propane gas. Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. A cylinder must be stored outdoors in a well-ventilated area out of the reach of children. A disconnected cylinder must have dust caps tightly installed and must not be stored in a building, garage, or any other enclosed area. - Page 13 OPERATING INSTRUCTIONS 3. If leak is detected at regulator/cylinder valve connection, disconnect, reconnect, and perform another leak test. If you continue to see bubbles after several attempts, cylinder valve is defective. Call our customer service hotline at 1-866-985-7877, 9 a.m. – 6 p.m., EST, Monday – Friday IF NO BUBBLES APPEAR AT ANY CONNECTION, THE CONNECTIONS ARE SECURE.
- Page 14 OPERATING INSTRUCTIONS When Heater is ON: 1. Never use the heater while it is raining. The glass tube will break when it comes in contact with water. 2. Never splash any liquid on the glass tube while the heater is in operation. 3.
-
Page 15: Care And Maintenance
OPERATING INSTRUCTIONS 19. Any guard or other protective device removed for servicing the heater must be replaced prior to operating the heater. 20. Installation and repair should be done by a qualified service person. The heater should be inspected before each use and at least annually by a qualified service person. -
Page 16: Troubleshooting
TROUBLESHOOTING If you have any questions regarding this product, please call our customer service hotline at 1-866-985-7877, 9a.m. – 6 p.m. (EST), Monday – Friday, or email us at cservice@welltraveled.net. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Gas valve may be off Turn gas valve ON Fuel tank may be empty Refill LPG tank... -
Page 17: Replacement Parts List
REPLACEMENT PARTS LIST ASSEMBLY For questions regarding this product or to purchase replacement parts, please call our customer service hotline at 1-866-985-7877, 9a.m. – 6 p.m. (EST), Monday – Friday, or email us at cservice@welltraveled.net. PART PART NAME DESCRIPTION/ LOCATION Tank Housing Pre-assembled Assembly... -
Page 18: Warranty Information
Customer Service Hours: Mon. – Fri. 9:00 a.m. – 6:00 p.m. (EST) Fire Sense®, Mojave Sun ®, and Well Traveled Living® are registered trademarks of Well Traveled Imports, Inc®. All assembly instruction presentations are the property of Well Traveled Imports, Inc.® and are protected by U.S. copyrights...
