Appendix A: Connector Pinout Assignments

Serial Ports

202
5
9
4
8
3
7
2
6
1

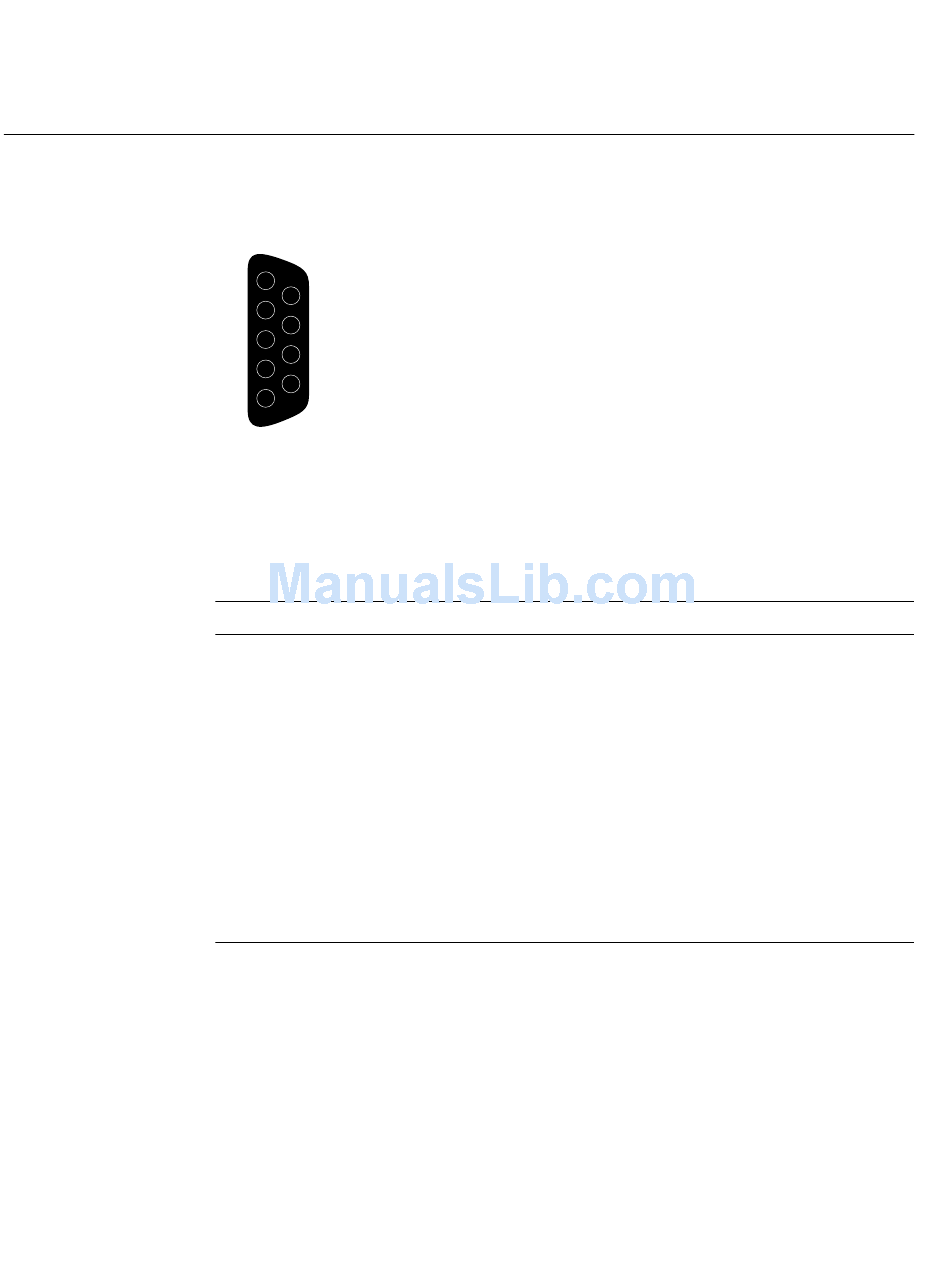

Figure A-1 Origin200 Serial Port Pinout Assignments
Table A-1 shows the connector pin assignments for the serial ports in RS-232 mode.
Table A-1 Origin200 Serial Port Pin Assignments, RS-232 Mode
Pin Assignment
1 Data Carrier Detect (DCD)
2 Receive Data (RXD)
3 Transmit Data (TXD)
4 Data Terminal Ready (DTR)
5 Ground (GND)
6 Data Set Ready (DSR)
7 Request To Send (RTS)
8 Clear To Send (CTS)
9 (Not Connected)
