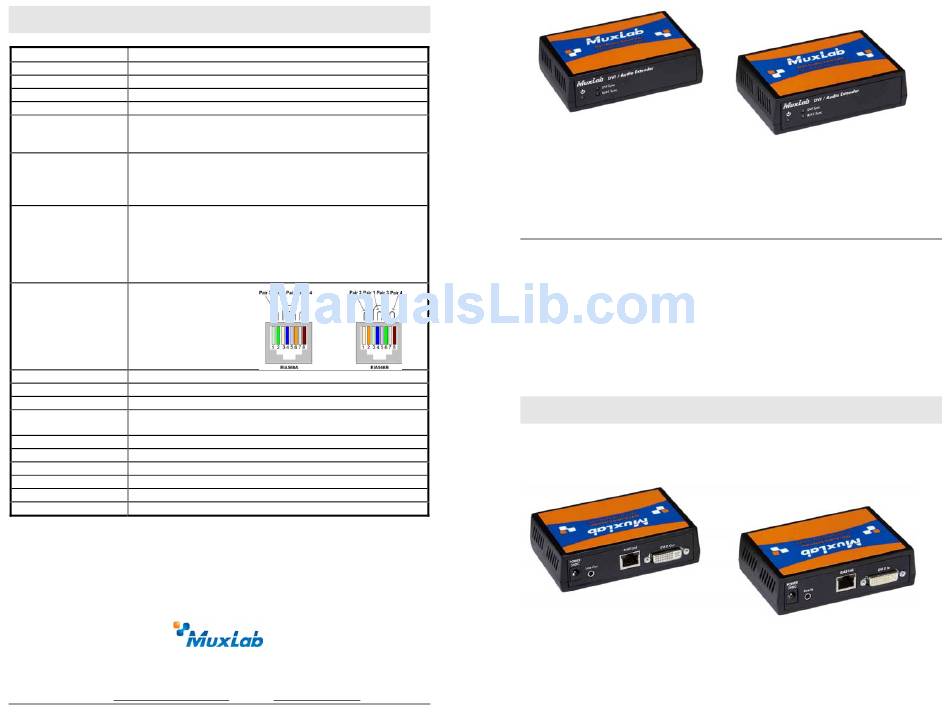

MuxLab 500390 Quick Installation Manual

Specifications

Environment DVI 1.0 (Single Channel)
Plasma, projectors, monitors, TV, PC, laptops
Devices
Transmission Transparent to the user
Bandwidth 340 MHz
Signals DVI 1.0 protocol
Audio Does not embed or de-embed audio over DVI. Transmits audio in
common mode over UTP and completely isolated from the DVI
signal
One (1) DVI-D receptacle.
Connectors
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
3.5mm jacks for Analog Stereo Audio
Note: DVI and Audio cables not included.
Maximum Distance Cat 5e/6: 230 ft (70 m) up to 1920 X 1200
115 ft (35 m) for 4K; 3840 X 2160/24,25,30 Hz
Based on a maximum
length of 6.6 ft (2 m) of
Note: When installed in an electrically noisy environment, an STP cable
DVI cable per end.
must be used. Also, cross-connection reduces the effective distance
depending on the grade of twisted cable used.
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity
Pin 3 (R) Pin 6 (T)
Sensitive. Use EIA/TIA
Pin 4 (R) Pin 5 (T)
568A or 586B straight-
Pin 7 (R) Pin 8 (T)
through wiring.
One (1) Cat 5e/6 or better twisted pair cables required
Cable
Power Supply Two (2) 110-240V/5VDC power supplies with interchangeable blades
Power Consumption Transmitter: 1.6 Watt
Operating: 0° to 40°C
Temperature
Humidity: Up to 95% non-condensing
Enclosure Aluminum
Dimensions 4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
2.6 lb (1.2 kg)
Weight
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
500390 DVI/Audio Extender Kit
Order Information
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 3.2 Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000745-A SE-000745-A

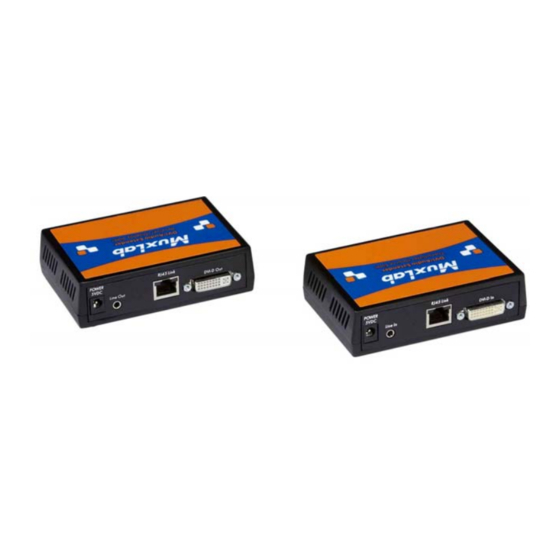

DVI/Audio Extender Kit
500390
Quick Installation Guide

Overview

The DVI/Audio Extender Kit (500390) allows one DVI channel and one line level
stereo audio audio channel to be transmitted to 230 ft (70 m) at all resolutions up to
1920x1200 via one (1) Cat 5e/6 cable in a point-to-point configuration.

Applications

Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.

Installation

1. Identify the connectors on the Transmitter and Receiver as indicated on the
product labels.
