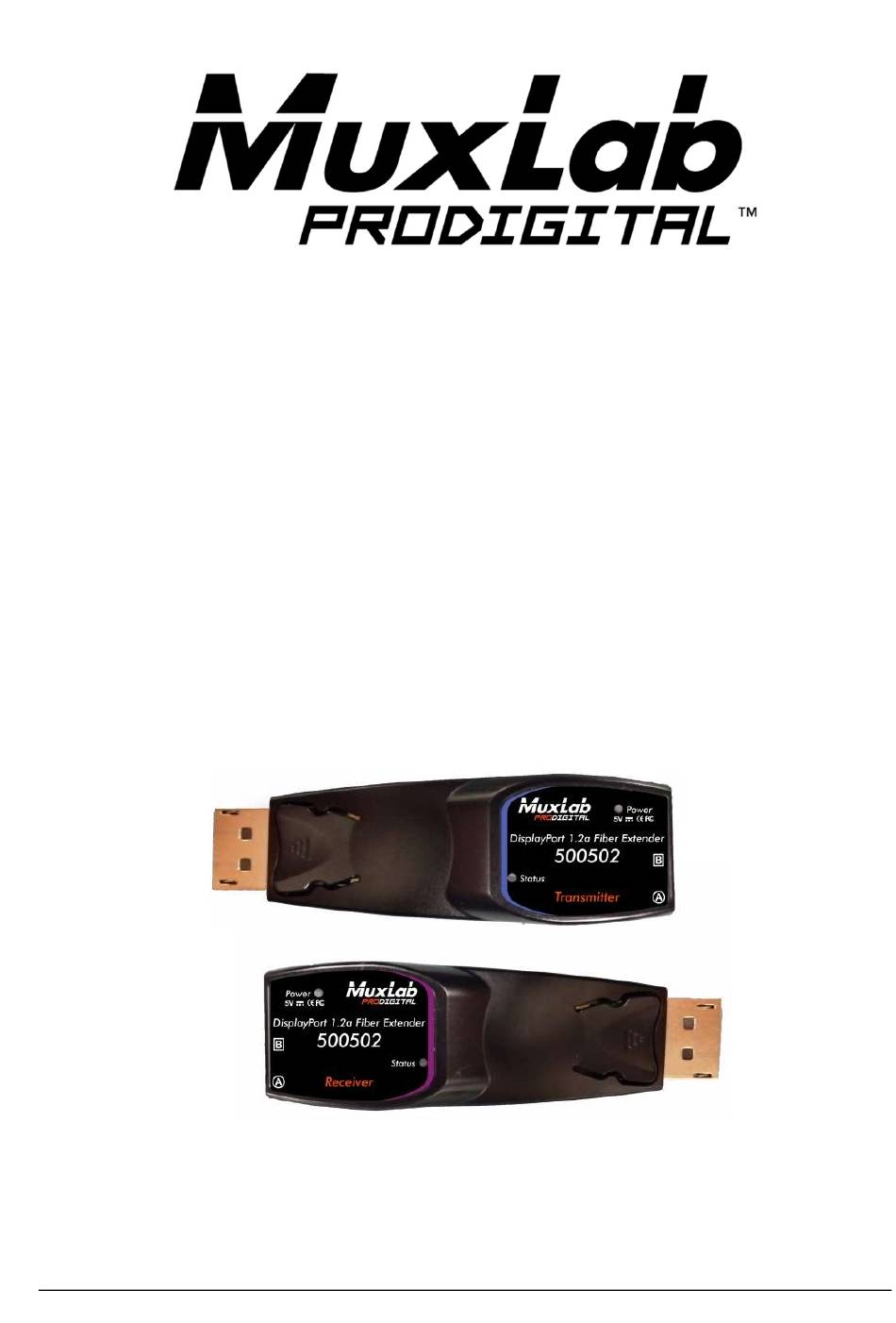

- Page 1 DisplayPort 1.2a Fiber Extender Kit Installation Guide 500502 © MuxLab Inc. 2016 94-000840-A / SE-000840-A...
- Page 2 Unpack the equipment carefully and save the original box and packing material for possible future shipment NOTICE: Please read this user manual carefully before using the product. © MuxLab Inc. 2016...
-
Page 3: Table Of Contents
DisplayPort 1.2a Fiber Extender Kit Installation Guide Contents 1. Introduction ......................... 4 1.1 Introduction to the 500502 ................. 4 1.2 Features ......................4 1.3 Package Contents ..................... 4 2. Specification ....................... 5 3. System Requirement for Installation ................5 3.1 Hardware requirements ..................5 3.2 Software requirements .................. -
Page 4: Introduction

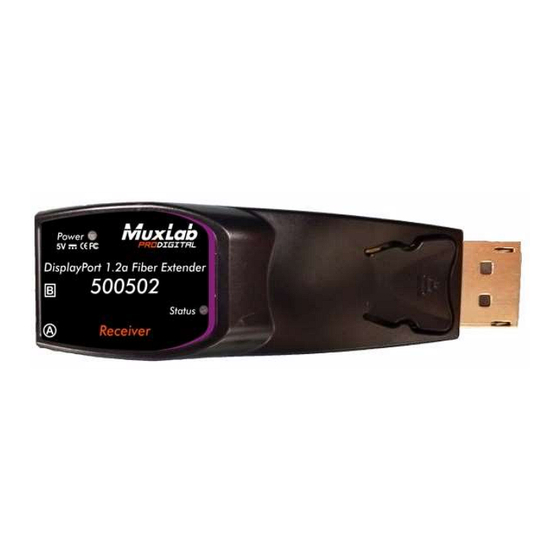

1. Introduction 1.1 Introduction to the 500502 The DisplayPort 1.2a Fiber Extender Kit, 500502 enables the user to transmit WQUXGA (3840x22400) video at 60Hz signal up to 330ft (100m), with any form of scaling or data compression being applied to the signal. This device support a total data throughput of 21.6Gbps (5.4Gbps per lane). -
Page 5: Specification
Regulatory: FCC, CE, RoHS Warranty 2 years Order Information 500502 DisplayPort 1.2a Fiber Extender Kit 3. System Requirement for Installation 3.1 Hardware requirements 1) A DisplayPort source and display is required, supporting the graphic resolution of the © MuxLab Inc. 2016... - Page 6 DisplayPort 1.2a Fiber Extender Kit Installation Guide DisplayPort 1.2a Fiber Extender Kit. 2) No special requirements for memory size, CPU speed and chipsets are needed, assuming the DisplayPort graphic controllers or cards have already been properly installed. © MuxLab Inc. 2016...
-
Page 7: Software Requirements
Transmitter and Receiver. 4. System Connection 4.1 Safety Precautions This system should be installed in a clean environment with temperature and humidity within the specified operating levels (see the specifications table). 4.2 System Diagram © MuxLab Inc. 2016... -
Page 8: Connection Procedure
The Power LED will illuminate when the 500502 is connected to the DisplayPort interface of the source and display, and the Status LED will blink three (3) times. - Page 9 These units should be connected together with a single length of duplex multimode fiber cable, while ensuring that the optical LC connector end-faces are clean. d) To ensure proper connectivity, confirm that the Status LEDs on both the Transmitter and Receiver are ON. © MuxLab Inc. 2016...
-
Page 10: Troubleshooting & Maintenance
5. Troubleshooting & Maintenance The following section describes some of the symptoms, probable causes and possible solutions in regard to the installation of the 500502 DisplayPort 1.2a Fiber Extender Kit. The display only shows a blank (black) screen. Ensure that the USB power supplies are firmly connected and that both Transmitter and Receiver Power LEDs are ON. -
Page 11: Maintenance
For commercial or general product support, contact your reseller. For technical service, contact MuxLab by email videoease@muxlab.com or visit MuxLab’s website at www.muxlab.com Certification of Eye Safety This laser component is using the following wavelength: 825, 850, 930, 950, 980nm LD Transceivers, which are all certified by CDRH/FDA referred as classified in Laser Class 1 (IEC60825-1). -
Page 12: Regulatory Compliance
All brand names and product names used in this document are trademarks, or registered trademarks of their respective holders. © MuxLab Inc. 2016... - Page 13 DisplayPort 1.2a Fiber Extender Kit Installation Guide 8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5 Tel: (514) 905-0588 Fax: (514) 905-0589 Toll Free (North America): (877) 689-5228 E-mail: videoease@muxlab.com URL: www.muxlab.com © MuxLab Inc. 2016...
