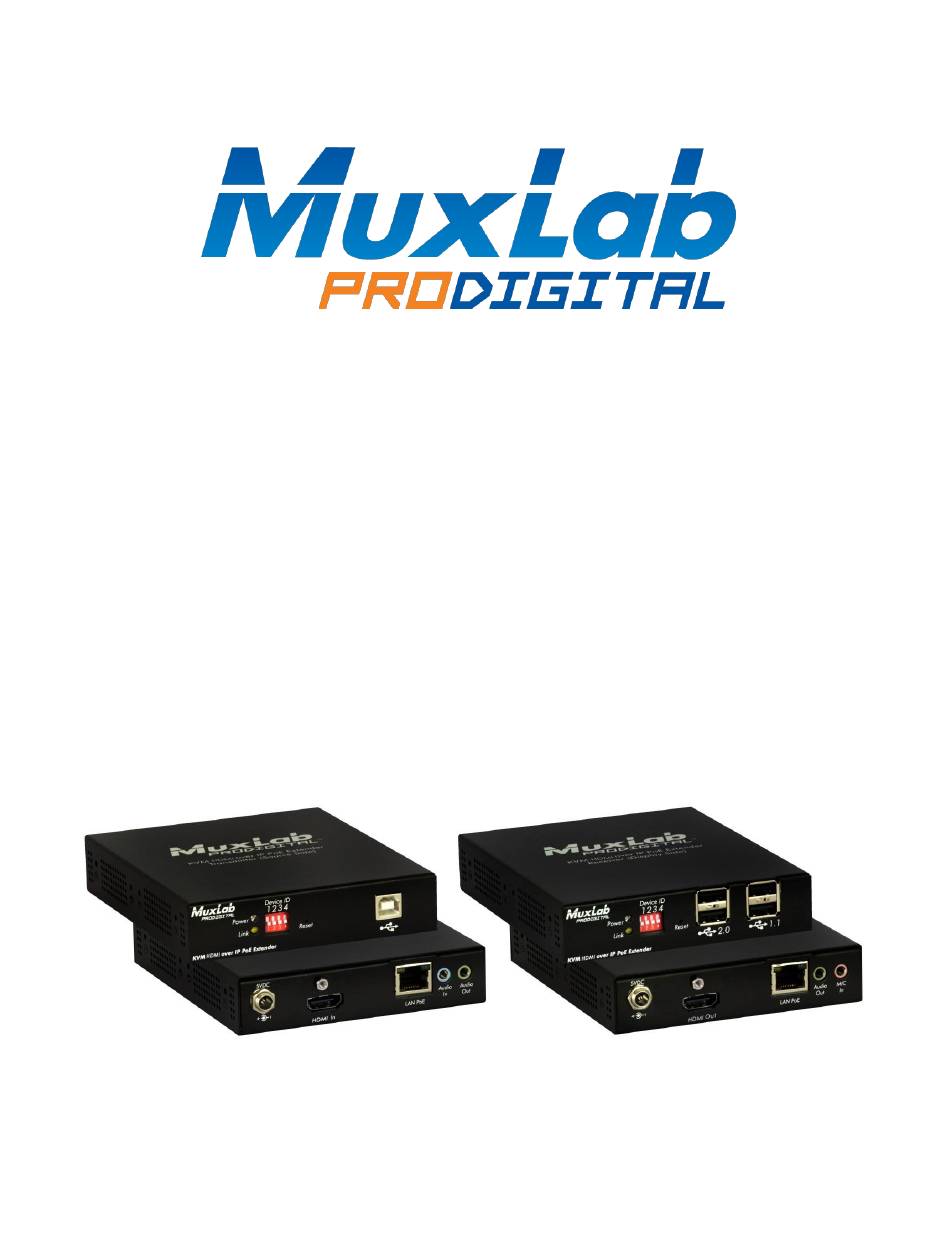

- Page 1 KVM HDMI over IP PoE Extender, UHD-4K - 500772 KVM HDMI over IP PoE Extender, UHD-4K Operation Manual 500772 Page 1 © MuxLab Inc. 2021 94-000845-C / SE-000845-C...
-
Page 2: Table Of Contents
KVM HDMI over IP PoE Extender, UHD-4K - 500772 Table of Contents 1 Introduction ............................... 3 Key Features:............................. 3 2 Direct Switching Method ........................... 5 3 On Screen Display (OSD) Switching Method ....................6 3.1 Login to the KVM Device ......................... 7 3.2 Logout from the KVM Device ........................ -
Page 3: Introduction

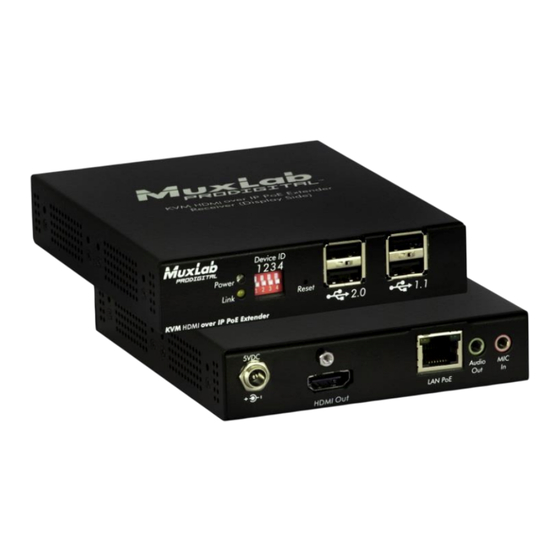

Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500772-TX) and Receiver (500772-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch. The Transmitter terminates to a computer server/workstation via a HDMI & USB port, The Receiver terminates to a HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, camera, etc., via a 4 port USB hub. - Page 4 Supports audio insert & mic-out (TX), and audio extract & mic-in (RX) Please reference the 500772 Installation Guide for instructions on how to connect Transmitters to workstations and the Receiver to an HDMI display, USB keyboard and USB mouse (plus two additional USB devices, if required).
-
Page 5: Direct Switching Method
KVM HDMI over IP PoE Extender, UHD-4K - 500772 2 Direct Switching Method This method of switching from one workstation to another supports up to 16 workstations. It supports a quick and simple method of switching to different workstations. If more than 16 workstations is required, then the On Screen Display (OSD) Switching Method must be used. -
Page 6: On Screen Display (Osd) Switching Method
KVM HDMI over IP PoE Extender, UHD-4K - 500772 3 On Screen Display (OSD) Switching Method The OSD Switching Method does not rely on the Dip Switch setting and thus is not limited to only 16 workstations. This method supports 100’s of workstations. -
Page 7: Login To The Kvm Device
KVM HDMI over IP PoE Extender, UHD-4K - 500772 • Connect: After selecting a workstation in the Node List, then pressing “Connect” provides control over the selected workstation (assuming it is not already under the control of another client). •... -
Page 8: Bring Up The Kvm Osd Menu
KVM HDMI over IP PoE Extender, UHD-4K - 500772 3.3 Bring up the KVM OSD Menu To bring up the KVM OSD Menu at any time, quickly press “Scroll Lock” three times. The OSD will be displayed. Note that this display is generated directly from the KVM Receiver, and is not being generated by any workstation. -
Page 9: Returning
KVM HDMI over IP PoE Extender, UHD-4K - 500772 To actually select a workstation to control, use the mouse to click on the desired workstation from the provided “Node List”. Workstations that indicate a status of “Ready” are available for control, while workstations that have a status of “Busy”... -
Page 10: Kvm Transmitter/Receiver Settings
To do this, follow the steps in the “Firmware Version Information” section. Then search for the latest version of the KVM Transmitter and Receiver firmware on the MuxLab website in the “Support” page section. If a newer version exists, then proceed to download it. -
Page 11: Changing The Osd Login Password
KVM HDMI over IP PoE Extender, UHD-4K - 500772 4.3 Changing the OSD Login Password The default OSD Login password is “admin” but may be changed via the KVM Receiver web interface. In the “System” tab and then “Utilities” sub tab, the “Console API Command” field is used to set the new password. -
Page 12: Kvm Device Statistics
KVM HDMI over IP PoE Extender, UHD-4K - 500772 The Login password is now set to “12345”. Record the new password in a safe place as a reference. 4.4 KVM Device Statistics The KVM Transmitter/Receiver statistics is available via the device web interface by clicking on the “System”... -
Page 13: Network Settings
KVM HDMI over IP PoE Extender, UHD-4K - 500772 4.5 Network Settings The KVM Transmitter and Receiver network setting can be managed by pressing the “Network” tab. There are three sub tabs for additional control, “Auto IP”, “DHCP” and “Static”. The default setting is “Auto IP”, and it is recommended that this mode be set. -
Page 14: Setting The Kvm Transmitter/Receiver Name
KVM HDMI over IP PoE Extender, UHD-4K - 500772 4.6 Setting the KVM Transmitter/Receiver Name The following steps illustrate how to set the name for each KVM Transmitter/Receiver. From the main web interface home page click on the “Function” Tab and scroll down to the bottom. Enter the KVM Transmitter/Receiver name in the “KVM unit name”... - Page 15 KVM HDMI over IP PoE Extender, UHD-4K - 500772 Click on the “HotKey prefix” pull-down arrow to select the hotkey prefix setting from the provided options. Click on the “HotKey Stop” pull-down arrow to select the hotkey stop setting from the provided options.
-
Page 16: Specifications
KVM HDMI over IP PoE Extender, UHD-4K - 500772 5 Specifications Environment HDMI 2.0b Devices Computers and servers with HDMI monitor ports. Transmission Transparent to the user Bandwidth 300MHz Signals HDMI 2.0 b protocol, HDCP 2.2 Connectors One (1) HDMI receptacle. - Page 17 Flammability: 94V0 Warranty 3 years Order Information 500772-TX KVM HDMI over IP PoE Extender TX, UHD-4K (UPC: 627699907726) 500772-RX KVM HDMI over IP PoE Extender RX, UHD-4K (UPC: 627699807729) Accessories 500920 16-Port Rackmount Transceiver Chassis 500917 Wall Mount Transceiver Bracket Kit...
-
Page 18: Warranty Policy
Return Material Authorization number (RMA#) issued by its Customer Service Department and a proof of purchase date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent. - Page 19 KVM HDMI over IP PoE Extender, UHD-4K - 500772 MuxLab Inc. 2321 Rue Cohen Montreal, Quebec Canada H4R 2N7 Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589 Toll Free (North America): 877 689-5228 URL: www.muxlab.com E-mail: info@muxlab.com Page 19 © MuxLab Inc. 2021...
