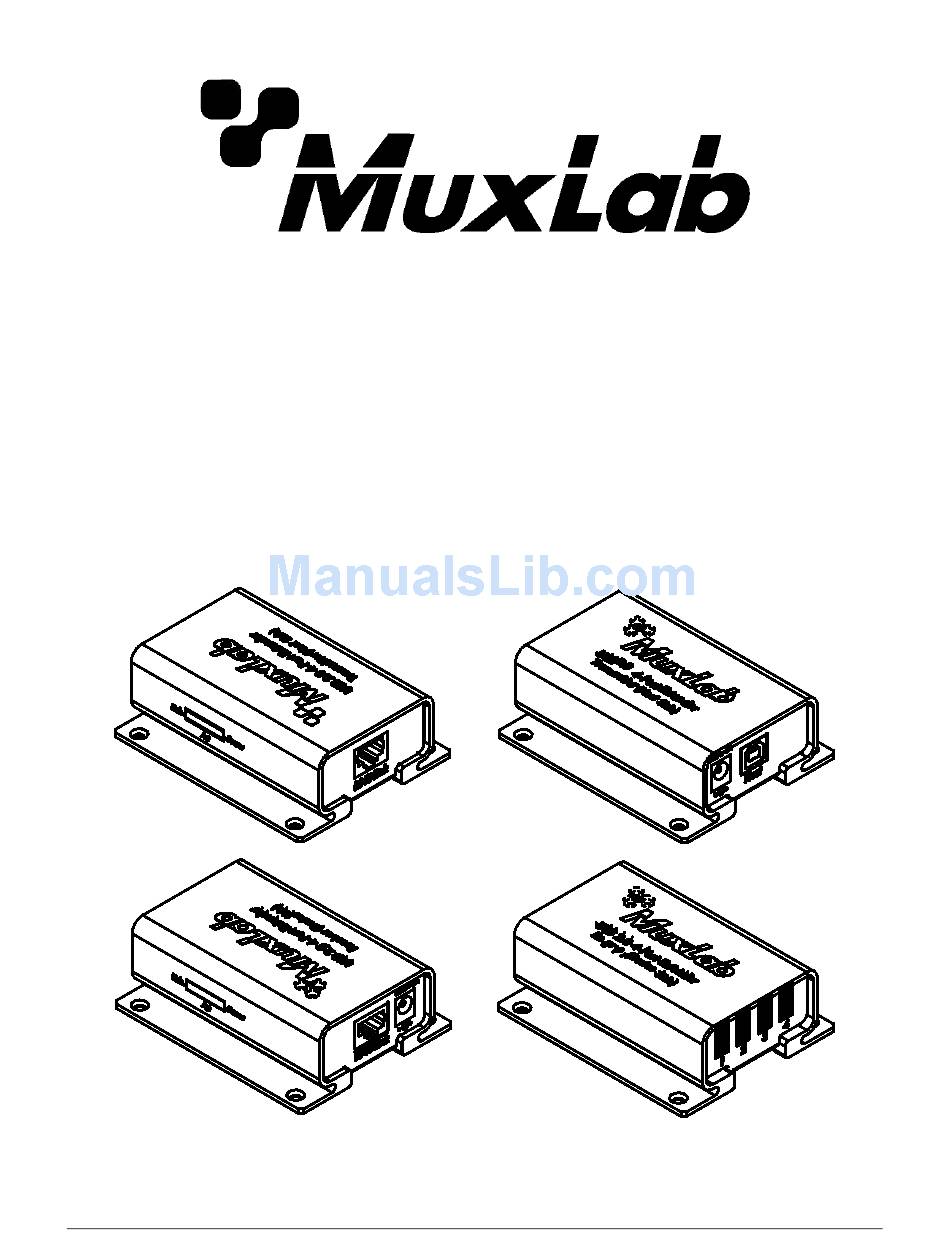

Page 1: Installation Guide

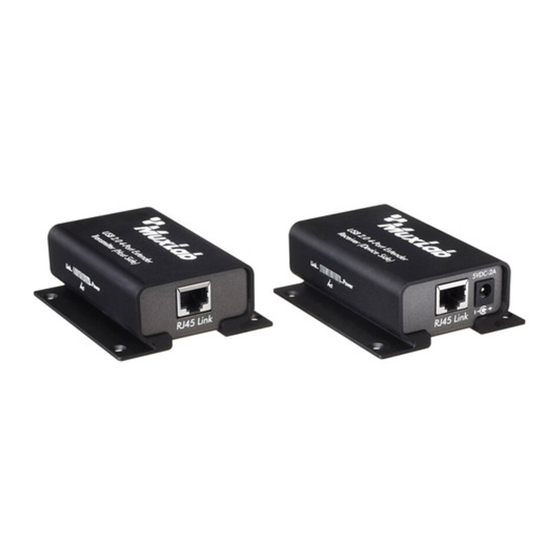

USB 2.0 4-Port Extender Kit Installation Guide 500072 © MuxLab Inc. 2014 94-000760-A / SE-000760-A... - Page 2 Max. Cable Length 100m (328ft) USB Cable Length 0.6m (USB Type A/M to Type B/M) Power Supply 5VDC 1A 5VDC 2A Housing Aluminum Dimension ( L x W x H ) 90 x 73 x 31mm © MuxLab Inc. 2014...
-
Page 3: Package Contents
Act Led indicates activity when data is transmitted between the Tx and the Rx Rear view 5VDC-1A Power port connects to Host Port is using USB the 5VDC-1A power Type B interface supply Host © MuxLab Inc. 2014... -
Page 4: Front View
Tx and the Rx via Cat.5 connected cabling Act Led indicates activity when data is transmitted between the Tx and the Rx Rear view Ports 1 to 4 are USB Device Ports using USB Type A interface. © MuxLab Inc. 2014... - Page 5 2. Plug the 5VDC, 1A power adapter into the transmitter, and AC plug into the power outlet. 3. The Red Power LED indicator lights on. 4. Plug one end of the Cat. 5 cable into the Link port (RJ-45) on the transmitter. (Please see Category cable wiring). © MuxLab Inc. 2014...
- Page 6 Take precaution selecting the Cat. 5 wires before connecting; use a cable tester to check the wires are correctly terminated. (Incorrect Termination may cause damage to the receiver unit). Recommend to use T568B wiring as shown. © MuxLab Inc. 2014...
-
Page 7: Troubleshooting
4. Check that the power adapter is connected and working. If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International). © MuxLab Inc. 2014... -
Page 8: Regulatory Compliance
All brand names and product names used in this document are trademarks, or registered trademarks of their respective holders. 8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5 Tel: (514) 905-0588 Fax: (514) 905-0589 Toll Free (North America): (877) 689-5228 E-mail: videoease@muxlab.com URL: www.muxlab.com © MuxLab Inc. 2014...
