Summary of Contents for MuxLab 500464-V2

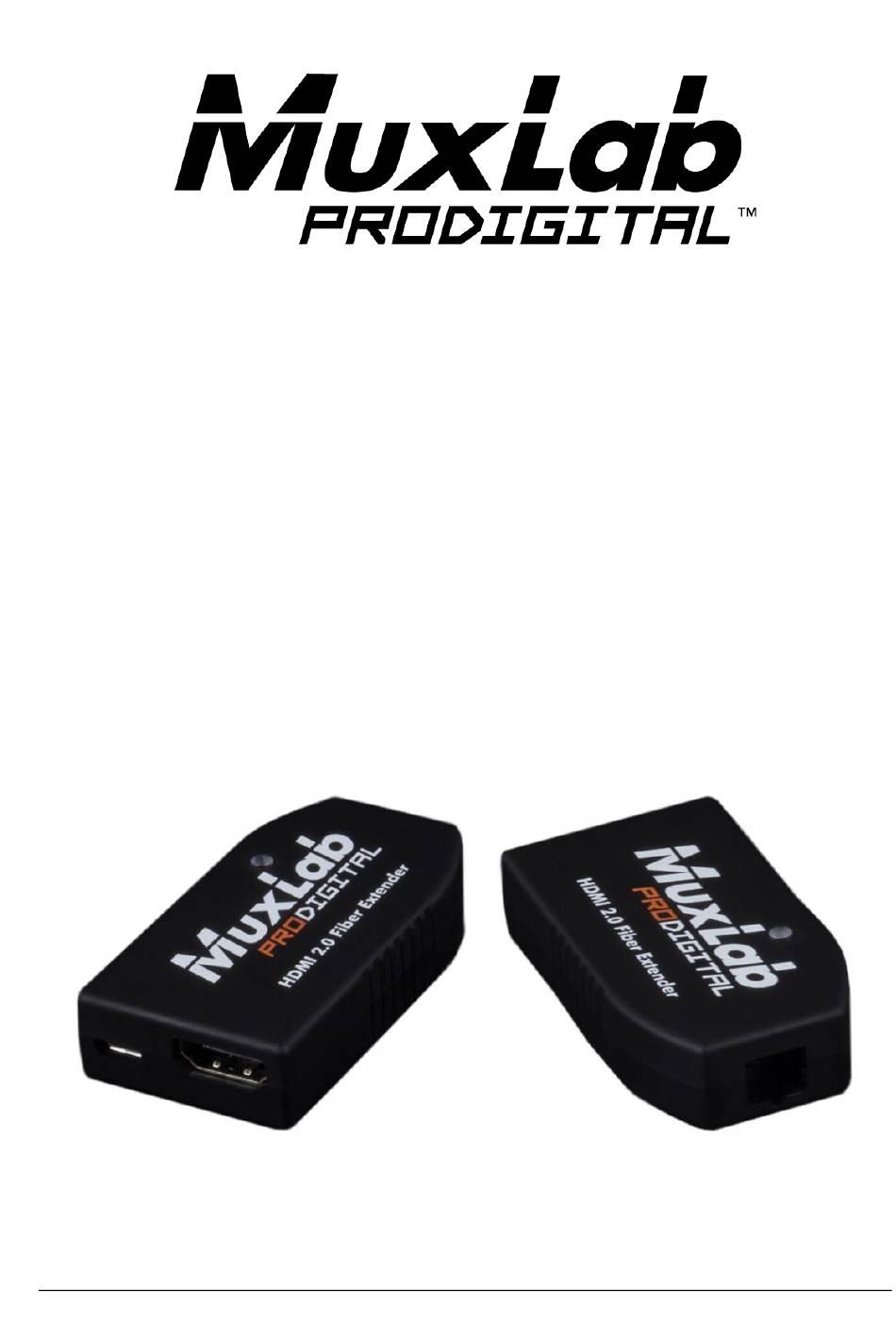

- Page 1 HDMI 2.0 Fiber Extender Kit Installation Guide 500464-V2 © MuxLab Inc. 2020 94-000947-A / SE-000947-A...
- Page 2 ⚫ Unpack the equipment carefully and save the original box and packing material for possible future shipment NOTICE: • Please read this user manual carefully before using the product. © MuxLab Inc. 2020...
-
Page 3: Table Of Contents
HDMI 2.0 Fiber Extender Kit Installation Guide Contents 1. Introduction ......................... 4 1.1 Introduction to the 500464-V2 ................4 1.2 Features ......................4 1.3 Package Contents ..................... 4 2. Specifications ......................5 3. System Requirement for Installation ................5 3.1 Hardware requirements ..................5 3.2 Software requirements .................. -
Page 4: Introduction
1. Introduction 1.1 Introduction to the 500464-V2 The HDMI 2.0 Fiber Extender Kit, 500464-V2 enables the user to transmit 4K (4096x2160) video at 60Hz signal up to 3300ft (1000m) with OM4 multimode fiber, with any form of scaling or data compression being applied to the signal. This device supports a total data throughput of 18Gbps (6Gbps per lane). -
Page 5: Specifications
Optical Fiber Communication System Class 1 Eye Safety per IEC Safety 60825-1 Warranty 2 years Order Information 500464-V2 HDMI 2.0 Fiber Extender Kit 3. System Requirement for Installation 3.1 Hardware requirements 1) A HDMI source and display is required, supporting the graphic resolution of the © MuxLab Inc. 2020... -
Page 6: Software Requirements
Transmitter. 4. System Connection 4.1 Safety Precautions This system should be installed in a clean environment with temperature and humidity within the specified operating levels (see the specifications table). 4.2 System Diagram © MuxLab Inc. 2020... -
Page 7: Connection Procedure
Supply be used as well for a more stable power source for the Transmitter, since some sources may not be capable of providing sufficient power. The Power LED will illuminate when the 500464-V2 is connected to the HDMI interface of the source and display via the included HDMI cables. - Page 8 (sold separately) meeting the spec herein, while ensuring that the optical SC connector end-faces are clean. d) To ensure proper connectivity, confirm that the LEDs on both the Transmitter and Receiver are indicating proper operation, see the LED Color Status Indicator table above. © MuxLab Inc. 2020...
-
Page 9: Troubleshooting & Maintenance
5. Troubleshooting & Maintenance The following section describes some of the symptoms, probable causes and possible solutions in regard to the installation of the 500464-V2 HDMI 2.0 Fiber Extender Kit. The display only shows a blank (black) screen. Ensure that the USB power supplies are firmly connected and that both Transmitter and Receiver Power LEDs are ON. -
Page 10: Maintenance
There are no user serviceable parts inside these units. Refer all service and repair issues to MuxLab. Technical Support and Service For commercial or general product support, contact your reseller. For technical service, contact MuxLab by email info@muxlab.com or visit MuxLab’s website at www.muxlab.com... -
Page 11: Regulatory Compliance
All brand names and product names used in this document are trademarks, or registered trademarks of their respective holders. © MuxLab Inc. 2020... - Page 12 HDMI 2.0 Fiber Extender Kit Installation Guide 2321 Rue Cohen, Montreal, Quebec, Canada. H4R 2N7 Tel: (514) 905-0588 Fax: (514) 905-0589 Toll Free (North America): (877) 689-5228 E-mail: info@muxlab.com URL: www.muxlab.com © MuxLab Inc. 2020...
