Summary of Contents for MuxLab 500732

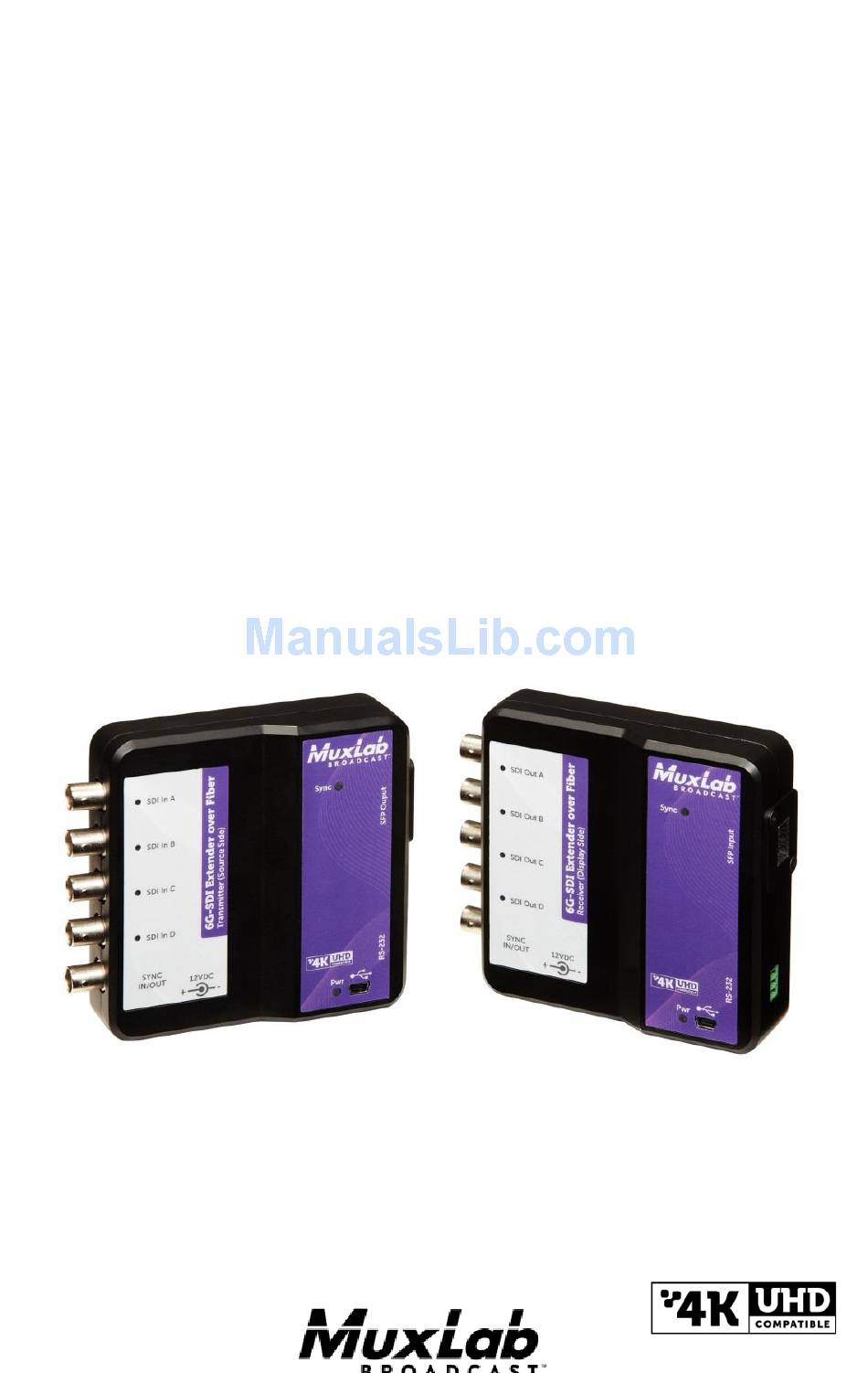

  • Page 1 6G-SDI EXTENDER OVER FIBER 500732 500732-SM10 500732-SM40 500732-SM80 Installation & Operation Manual 94-000764-B SE-000764-B...
  • Page 2 Printed in Canada. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without prior written permission of the author. Trademarks: MuxLab Broadcast is a registered trademark of MuxLab Inc. Page 2...
  • Page 3: Table Of Contents

    © MuxLab Inc. 6G-SDI Extender Over FIBER Table of Contents 1. Overview .................4 1.1. Description .............. 4 1.2. Features ..............6 2. Technical Specifications ..........7 3. Installation Procedure ...........9 3.1. Parts List ..............9 3.2. Product Overview ..........10 3.3.
  • Page 4: Overview

    Overview 1.1. Description The 6G-SDI Extender is a unique new solution from MuxLab for extending SDI based cameras* or other SDI sources* up to 4K @ 30Hz resolution with the added benefit of extending the High Resolution signal up to 985ft (300m) via OM3 multimode fiber...
  • Page 5 © MuxLab Inc. 6G-SDI Extender Over FIBER Figure 1 System Connectivity Overview Typical Applications:  Video (cinema) production  Studio broadcasting production  Studio to Studio  Mobile video (broadcasting vehicle)  News coverage and live events  Post production...
  • Page 6: Features

    © MuxLab Inc. 6G-SDI Extender Over FIBER 1.2. Features  Up to 1300ft (400m) via multimode OM4 fiber and up to 264,000ft (80km) via singlemode fiber.  HD-SDI using single, two or four coax cables, 3G- SDI using single or two coax cables, 6G-SDI using a single coax cable, with HDMI 3D support.
  • Page 7: Technical Specifications

    Black Electrophoresis (Tx Unit) Control Serial Console Emulation with USB Interface  Distance Model 500732: Up to 985ft (300m) via OM3 multimode fiber and 1300ft (400m) via OM4 multimode fiber.  Model 500732-SM10: Up to 33,000ft (10km) via singlemode fiber.

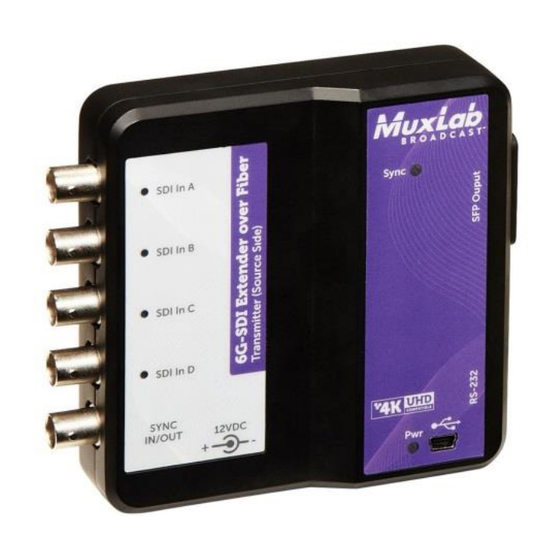

  • Page 8 © MuxLab Inc. 6G-SDI Extender Over FIBER Transmitter Connectivity 4x BNC SDI Input Connectors (0.8V pp, 75Ohms) Front Side 1x BNC Sync Output Connector 1x SFP+ module Connector Rear Side 1x terminal block for RS232 interface Top Side Mini USB for firmware updates (plus control & status)
  • Page 9: Installation Procedure

    © MuxLab Inc. 6G-SDI Extender Over FIBER Installation Procedure 3.1. Parts List The 6G-SDI Extender over FIBER Kit (500732, 500732-SM10, 500732-SM40 & 500732-SM80) come with the following parts:  1x Transmitter Unit (Tx)  1x Receiver Unit (Rx)  2x 12VDC Wall-mount Power Supply ...
  • Page 10: Product Overview

    © MuxLab Inc. 6G-SDI Extender Over FIBER 3.2. Product Overview 3.2.1.Transmitter The external connections and light indicators of the transmitter unit are detailed in Figure 2. Please familiarize yourself with them before installing the unit. LED Indicator SFP+ module When SDI Link...
  • Page 11 © MuxLab Inc. 6G-SDI Extender Over FIBER 3.2.2.Receiver The external connections and light indicators of the receiver unit are detailed in Figure 3 & Figure 4. Please familiarize yourself with them before installing the unit. LED Indicator SFP+ module When SDI Link...
  • Page 12: Physical Installation

    © MuxLab Inc. 6G-SDI Extender Over FIBER 3.3. Physical Installation Duplex Connection: SOURCE INPUT (Camera, Etc) Must use 6G/3G/HD 75Ω graded coax cable In accordance with the SDI Throughput needed. Connection to FIBER (Duplex Connection) 1 Channel 6G/3G/HD-SDI 2 Channels 3G-SDI...
  • Page 13 © MuxLab Inc. 6G-SDI Extender Over FIBER Simplex Connection: If transmission is only required in one direction, this device can be connected with a single fiber in a simplex arrangement as indicated in the following steps below. 1. While looking at the unit from the top, connect the single fiber cable to the Transmitter right most LC connector as shown below.
  • Page 14: Installation & Power-Up Procedure

    © MuxLab Inc. 6G-SDI Extender Over FIBER 3.4. Installation & Power-up Procedure In order to install the product, please follow the steps below: 1. First, install the Transmitter near the SDI signal source. Attach the unit via the mounting holes or by other appropriate means.
  • Page 15: Supported Sdi Modes

    © MuxLab Inc. 6G-SDI Extender Over FIBER same signal which can be terminated on a mixer, display monitor, video recorder, etc. 3.5. Supported SDI Modes OUTPUT MODES INPUT Single Single Dual Single Dual Quad MODES 6G-SDI 3G-SDI 3G-SDI HD-SDI HD-SDI...
  • Page 16: Supported Video Modes

    © MuxLab Inc. 6G-SDI Extender Over FIBER 3.6. Supported Video Modes Resolution 10Bit 4:2:0 12Bit 4:2:0 10Bit 4:2:2 12Bit 4:2:2 12Bit 4:4:4 10Bit 4:4:4:4 2160p @ 30/29.97Hz 6Gbit/s 2160p @ 25Hz Single Link 6G 2160p @ 24/23.98Hz Dual Link 3G 1080p @ 60/59.94Hz...
  • Page 17: Sdi Input Connections

    © MuxLab Inc. 6G-SDI Extender Over FIBER 3.7. SDI Input Connections SDI, Input BNC Connector (Transmitter) SDI A SDI B SDI C SDI D Input Modes Link A Single 6G- Link A Single 3G- Link A Link B Dual 3G-...
  • Page 18: Firmware Upgrade Procedure

    1. Make sure the PC USB device driver has been installed (see section 4.2 for more details) 2. Download the latest version of the appropriate firmware upgrade from the MuxLab website. 3. Unzip the firmware upgrade executable in a directory of your choice.
  • Page 19 COM PORT Number : 3 Baud rate : 115200 Checking product ..RX OK Muxlab 6G SDI EXT 500732 RX/TX >> Preparing to Upload Programmable Logic .... OK Sending Programmable Logic data ....100% OK Preparing to Upload Firmware ...... OK Sending data ........
  • Page 20 © MuxLab Inc. 6G-SDI Extender Over FIBER 7. The behavior of the Transmitter and Receiver unit should be as outlined below during upgrade. The device uses the SDI LEDs to indicate the actual status.  SDI A/B/C/D Blinking: Download phase.
  • Page 21: Usb Driver Setup

    Plug the USB cable between the MuxLab device and the PC, and power up the device. The Found New Hardware wizard will open (see Figure 4). Select Locate and install driver software (recommended).
  • Page 22 © MuxLab Inc. 6G-SDI Extender Over FIBER A new dialog box will open (see Figure 5). Select Browse my computer for driver software (advanced). Figure 5 Found New Hardware Dialog Box Another dialog box will open (see Figure 6). Click Browse and locate the SC-000032-A USB to serial driver file downloaded earlier.
  • Page 23 © MuxLab Inc. 6G-SDI Extender Over FIBER A security window will now appear, indicating that the driver software is unsigned (see Figure 7). Select Install this driver software anyway. Figure 7 Windows Security A window will appear instructing that the software for the driver has been successfully installed (Figure 8).
  • Page 24: Unit Control And Status

    © MuxLab Inc. 6G-SDI Extender Over FIBER Unit Control and Status USB Control & Status Commands from an ASCII terminal (e.g. PUTTY) may be sent directly to the device via a USB connection (serial connection emulation). Maintenance can be performed with a terminal emulator, such as the one available under windows with the ASCII Command set described in the Appendix of this manual.
  • Page 25: Troubleshooting

    © MuxLab Inc. 6G-SDI Extender Over FIBER Troubleshooting The following table describes some of the problem symptoms, the probable causes and possible solutions. If the information below does not solve the problem, the technical support contact information can be found at the end of this section.
  • Page 26 6G-SDI Extender Over FIBER If the above Troubleshooting does not resolve the problem, contact your nearest MuxLab dealer or MuxLab Technical Support at 877- 689-5228 (toll free in North America) or (+1) 514-905-0588 (International), please have the following information ready: ...
  • Page 27: Appendix

    © MuxLab Inc. 6G-SDI Extender Over FIBER Appendix A. ASCII Command Set Ensure that the terminal emulation program parameters are set to the following: BAUD Rate: 115200 Data bits: Stop bits: Parity: None Flow control: None It should be noted that commands are case sensitive and arguments must be separated by a single space.
  • Page 28 © MuxLab Inc. 6G-SDI Extender Over FIBER Serial/USB Port Commands 1. HELP Command help Description: Display all the command list definition available Response: List all available commands help –c <command> Description: Help for a specific command Response: List the specifics of the demanded command 2.
  • Page 29 © MuxLab Inc. 6G-SDI Extender Over FIBER 4. VERSION Command version Description: Report firmware version of the microcontroller “ Master firmware version: x.x.x” Response: Page 29...
  • Page 30: Product Warranty Policy

    (RMA#) issued by its Customer Service Department and a proof of purchase date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent.
  • Page 31 For Product more than six months old, including shelf life. The defective unit must be returned prepaid to MuxLab and then the unit will be repaired or if repair is not possible, replaced by an equivalent unit and returned to the customer within one (1) month of receiving any returned product.
  • Page 32 © MuxLab Inc. 6G-SDI Extender Over FIBER MuxLab Inc. 8495 Dalton Road Mount Royal, Quebec Canada H4T 1V5 Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589 Toll Free (North America): 877 689-5228 URL: www.muxlab.com E-mail: videoease@muxlab.com Page 32...
