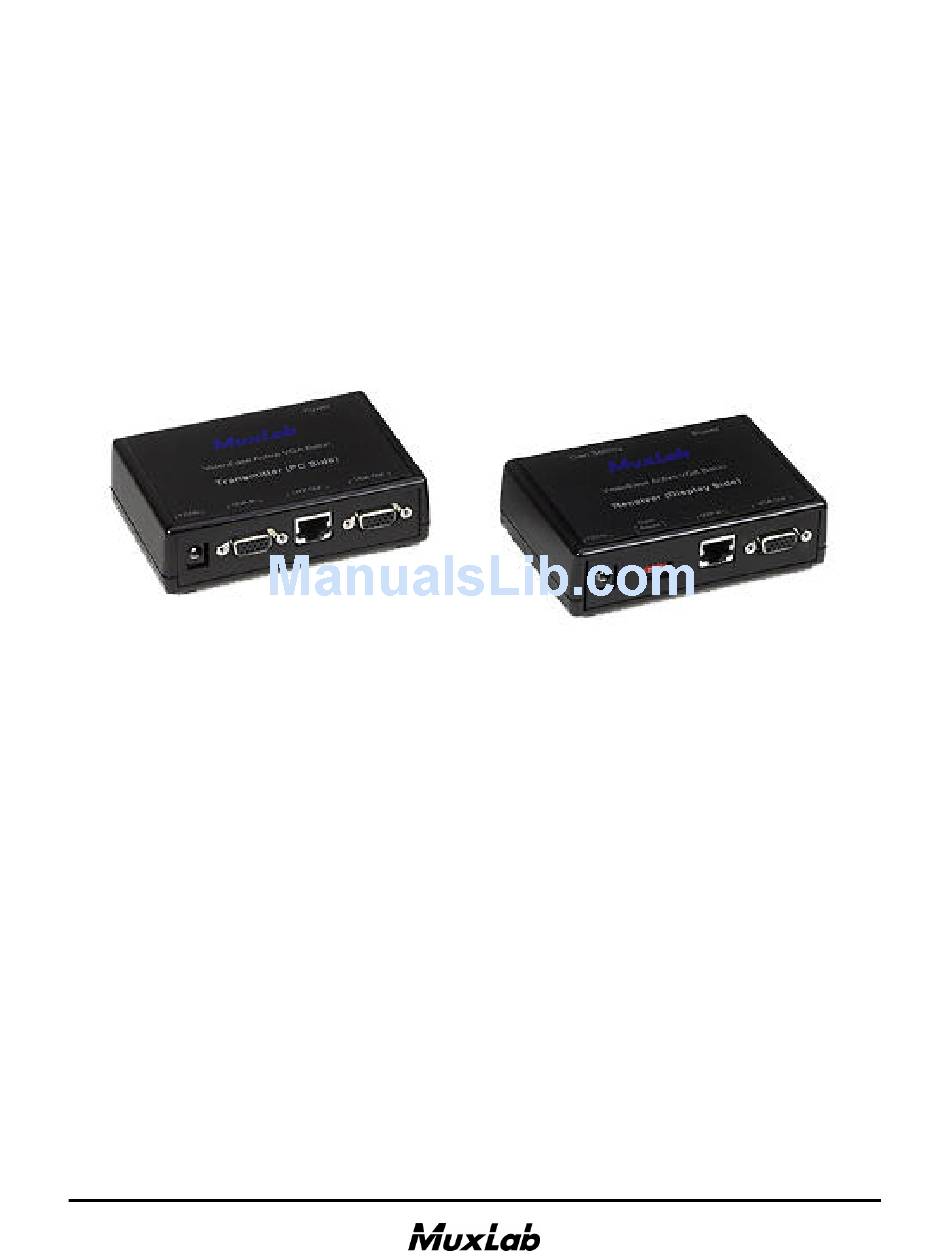

VideoEase™
Active VGA Balun Kit
( 500035, 500036 )

Installation Guide

P/N: 94-000603-A (rev17/3/2006)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VideoEase and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MuxLab VideoEase

  • Page 1: Installation Guide

    VideoEase™ Active VGA Balun Kit ( 500035, 500036 ) Installation Guide P/N: 94-000603-A (rev17/3/2006)
  • Page 2 Printed in Canada. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without prior written permission of the author. Trademarks : MuxLab and VideoEase are registered trademarks of MuxLab Inc. Page 2...
  • Page 3 © MuxLab Inc. VideoEase Active VGA Balun Kit Installation Guide Table of Contents 1. Overview..........................4 1.1. Description......................4 1.2. Features ......................4 2. Technical Specifications ....................5 Specifications......................5 3. Installation Procedure .....................7 3.1. Parts List......................7 3.2. Product Overview....................7 3.3. Pre-Installation Checklist..................9 3.4. Installation Procedure..................9 4.
  • Page 4: Overview

    1.1. Description The VideoEase Active VGA Balun Kit allows VGA video equipment to be connected via Category 5 twisted pair cable (UTP or STP) in a point-to-point configuration. It is ideally suited to commercial and institutional users who need to send high quality VGA in a PC-based multi-room application, including boardrooms and training environments.
  • Page 5: Technical Specifications

    © MuxLab Inc. VideoEase Active VGA Balun Kit Installation Guide Technical Specifications Specifications Environment VGA. VESA VP&D 1.0, VIP ver 2.0. Devices PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors. Transmission Transparent to the user. Bandwidth Up to 280 MHz (1800 x 1440 resolution) Impedance –...
  • Page 6 © MuxLab Inc. VideoEase Active VGA Balun Kit Installation Guide Gain Adjustment Gain control via DIP switches on receiver (factory default setting: all OFF) LED Indicators Transmitter: Power – One (1) green LED Receiver: Power – One (1) green LED; Switch position: Four (4) green LEDs Cable Category 5 or better twisted pair cable.
  • Page 7: Installation Procedure

    VideoEase Active VGA Balun Kit Installation Guide Installation Procedure 3.1. Parts List The VideoEase Active VGA Balun Kit comes with the following parts. Please verify that all pieces are present before proceeding. • Transmitter • Receiver • Two (2) External Power Supplies (12 VDC, 1.25A) •...
  • Page 8 © MuxLab Inc. VideoEase Active VGA Balun Kit Installation Guide Power Video OUT Video OUT Video IN 12 VDC (local) Figure 2: Rear panel, transmitter DIP Switch Indicator Power LED LEDs (4) Figure 3: Front panel, receiver 1 2 3 4...
  • Page 9: Pre-Installation Checklist

    Installation Procedure Verify that the distance between the VGA transmitter and receiver are within MuxLab specifications (see Technical Specifications). In order to install the transmitter, please follow the steps below: 1. Connect the transmitter to the video source with a VGA jumper cable.
  • Page 10 Note: For display equipment with automatic gain control (for example, certain models of projectors), complete all installation procedures and ensure that all DIP switches are OFF before turning the display equipment on. Otherwise, the display could override the adjustable gain feature of the VideoEase Active VGA Balun Kit. Page 10...
  • Page 11 © MuxLab Inc. VideoEase Active VGA Balun Kit Installation Guide The following diagram shows the final configuration. Figure 6: Typical Configuration Page 11...
  • Page 12: Troubleshooting

    DIP switches to OFF, starting with SW4 (far right). When contacting your nearest MuxLab dealer or MuxLab Technical Support please have the following information ready: • Unit model number. • Description of problem. • Cabling layout. Include model of •...
  • Page 13: Product Warranty Policy

    Return Material Authorization number (RMA#) issued by its Customer Service Department and a proof of purchase date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent.
  • Page 14 VideoEase Active VGA Balun Kit Installation Guide Each unit will be returned to the customer within one (1) month from receipt of the unit by MuxLab. The defective unit must be returned prepaid to MuxLab. The repaired unit will be returned to the customer FOB MuxLab. The repaired unit has a 90 day warranty.
  • Page 15 © MuxLab Inc. VideoEase Active VGA Balun Kit Installation Guide E-mail: videoease@muxlab.com Page 15...
