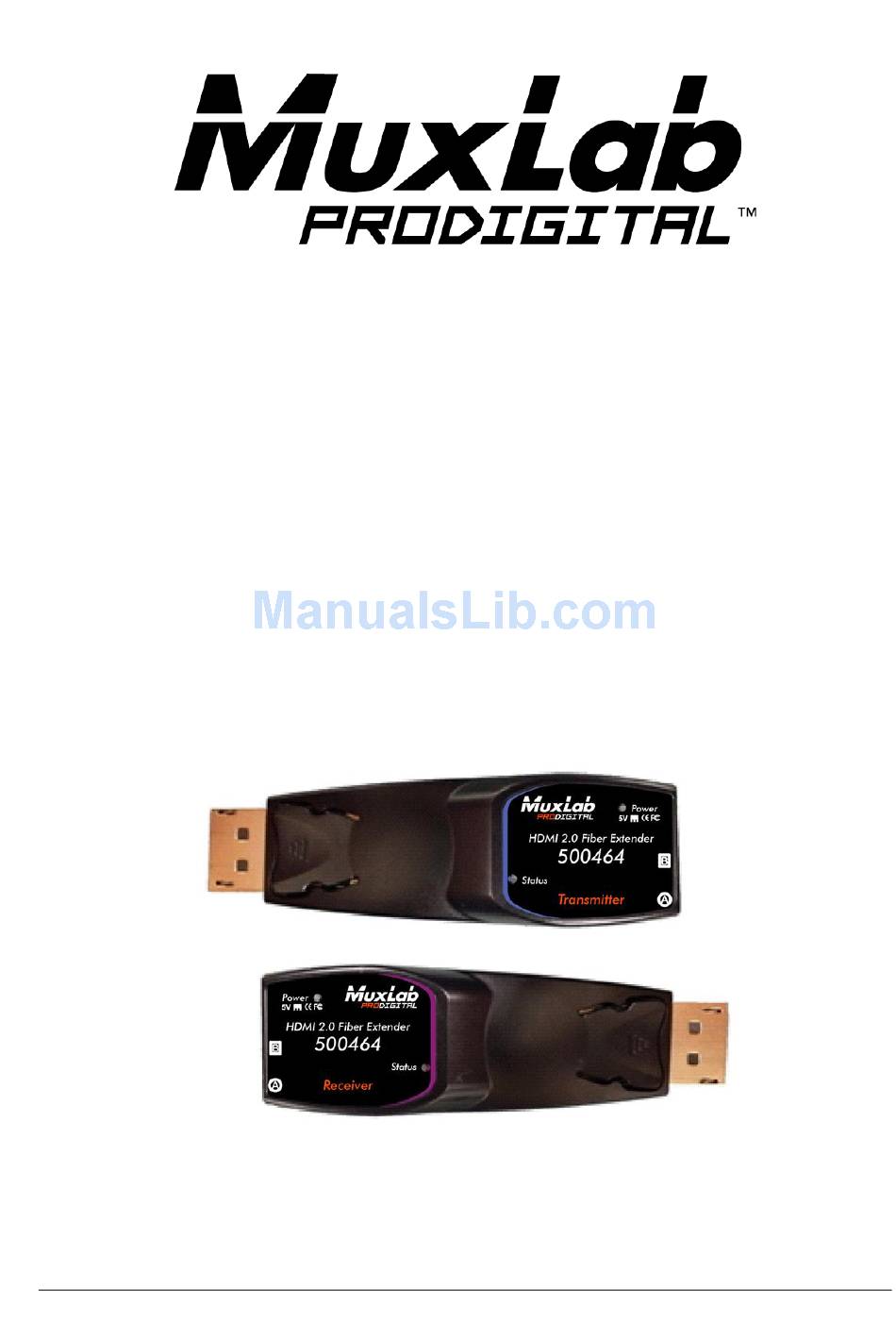

HDMI 2.0 Fiber
Extender Kit

Installation Guide

500464
© MuxLab Inc. 2017
94-000869-A / SE-000869-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500464 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MuxLab 500464

  • Page 1: Installation Guide

    HDMI 2.0 Fiber Extender Kit Installation Guide 500464 © MuxLab Inc. 2017 94-000869-A / SE-000869-A...
  • Page 2: Safety Precautions

     Unpack the equipment carefully and save the original box and packing material for possible future shipment NOTICE:  Please read this user manual carefully before using the product. © MuxLab Inc. 2017...
  • Page 3 HDMI 2.0 Fiber Extender Kit Installation Guide Contents 1. Introduction ......................... 4 1.1 Introduction to the 500464 ................. 4 1.2 Features ......................4 1.3 Package Contents ..................... 4 2. Specifications ......................5 3. System Requirement for Installation ................5 3.1 Hardware requirements ..................5 3.2 Software requirements ..................
  • Page 4: Introduction

    1. Introduction 1.1 Introduction to the 500464 The HDMI 2.0 Fiber Extender Kit, 500464 enables the user to transmit 4K (4096x2160) video at 60Hz signal up to 330ft (100m), with any form of scaling or data compression being applied to the signal. This device supports a total data throughput of 18Gbps (6Gbps per lane).
  • Page 5: Specifications

    Regulatory: FCC, CE, RoHS Warranty 2 years Order Information 500464 HDMI 2.0 Fiber Extender Kit 3. System Requirement for Installation 3.1 Hardware requirements 1) A HDMI source and display is required, supporting the graphic resolution of the HDMI 2.0 Fiber Extender Kit.
  • Page 6: Software Requirements

    Transmitter. 4. System Connection 4.1 Safety Precautions This system should be installed in a clean environment with temperature and humidity within the specified operating levels (see the specifications table). 4.2 System Diagram © MuxLab Inc. 2017...
  • Page 7: Connection Procedure

    Transmitter, since some sources may not be capable of providing sufficient power. The Power LED will illuminate when the 500464 is connected to the HDMI interface of the source and display, and the Status LED will blink three (3) times.
  • Page 8 These units should be connected together with a single length of duplex multimode fiber cable meeting the spec herein, while ensuring that the optical LC connector end-faces are clean. d) To ensure proper connectivity, confirm that the Status LEDs on both the Transmitter and Receiver are ON. © MuxLab Inc. 2017...
  • Page 9: Troubleshooting & Maintenance

    5. Troubleshooting & Maintenance The following section describes some of the symptoms, probable causes and possible solutions in regard to the installation of the 500464 HDMI 2.0 Fiber Extender Kit. The display only shows a blank (black) screen. Ensure that the USB power supplies are firmly connected and that both Transmitter and Receiver Power LEDs are ON.
  • Page 10: Maintenance

    There are no user serviceable parts inside these units. Refer all service and repair issues to MuxLab. Technical Support and Service For commercial or general product support, contact your reseller. For technical service, or visit MuxLab’s website at contact MuxLab by email videoease@muxlab.com www.muxlab.com...
  • Page 11: Regulatory Compliance

    All brand names and product names used in this document are trademarks, or registered trademarks of their respective holders. © MuxLab Inc. 2017...
  • Page 12 HDMI 2.0 Fiber Extender Kit Installation Guide 8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5 Tel: (514) 905-0588 Fax: (514) 905-0589 Toll Free (North America): (877) 689-5228 E-mail: videoease@muxlab.com URL: www.muxlab.com © MuxLab Inc. 2017...
