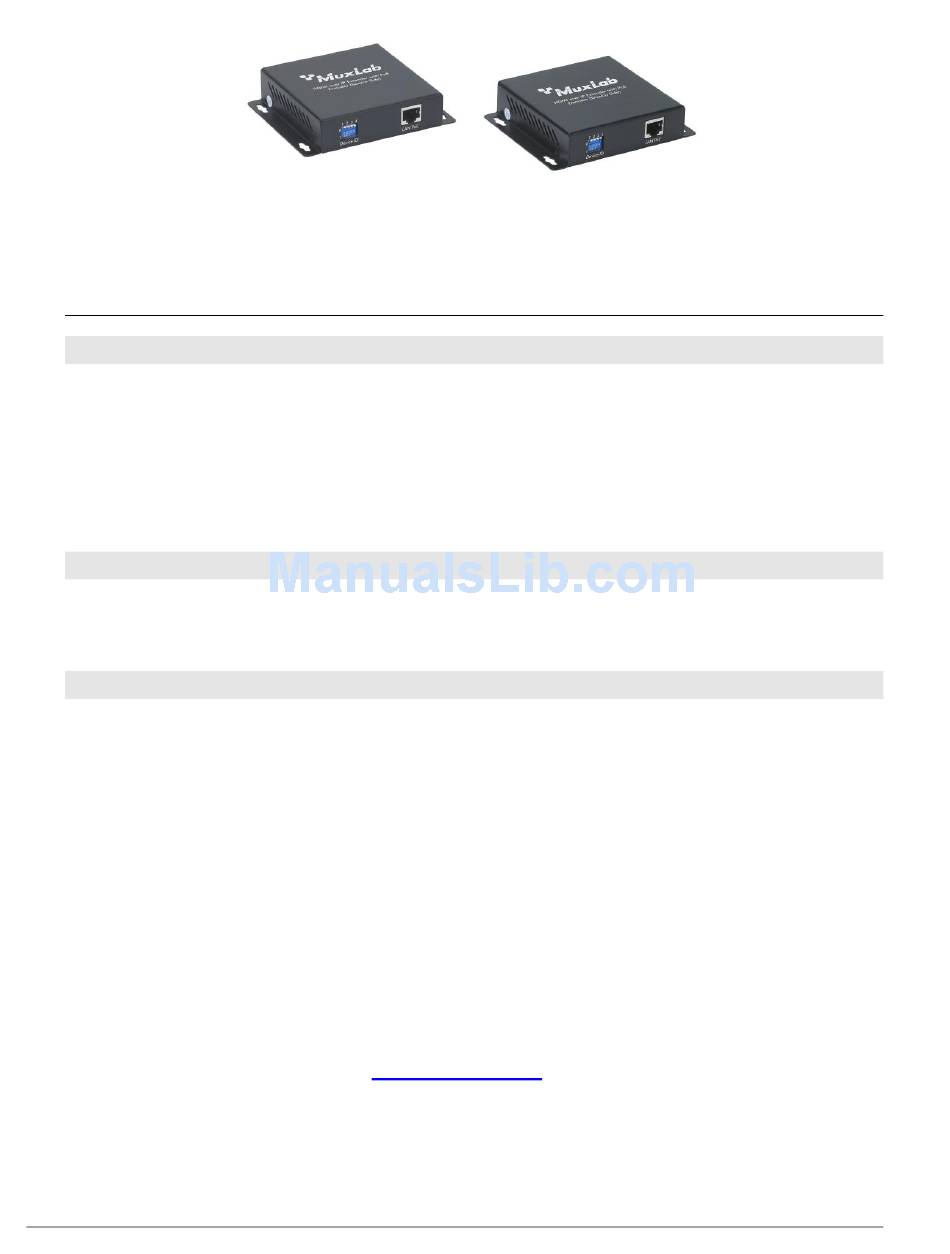

Overview

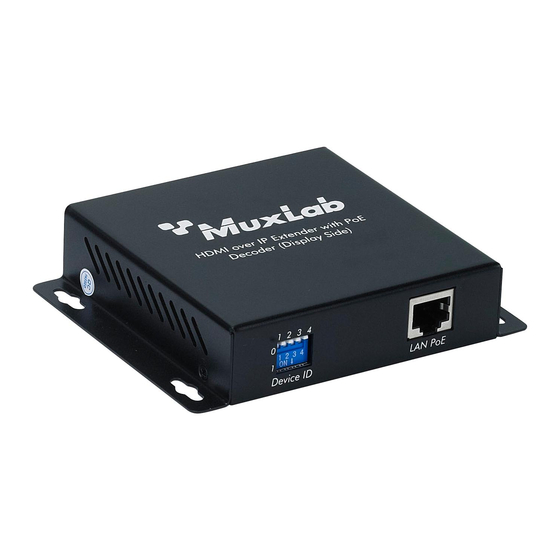

The HDMI over IP Extender Kit with PoE (500752) can be used with or without the help of
software. When use in an environment without the software the configuration can be manage using
the DIP Switches of the device. When used with the software, all the management will be done
with it. Independent of the way the product will be control a gigabit Ethernet switch is required.
This manual will explain you how to setup correctly the Ethernet switch, how to manage the system
manually and how to use the MuxLab software.
Applications
Applications include commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, and medical information systems.
Configuration of the Ethernet switch
We take the assumption that the Ethernet switch will be used only for the video/audio transport of
the 500752 and that no connection will be shared with the Ethernet infrastructure of the building.
When the 500752 are used in a matrix configuration it is mandatory to have an Ethernet switch with
the following capability: Gigabit Ethernet, DHCP Server and IGMP. We recommend using the
Cisco SG300 Series. The following section will explain you how to correctly configure the DHCP
Server and enable IGMP. If you are using a different manufacturer for the Ethernet switch please
look at the user manual on how to perform these steps.
Establishing communication with the Cisco Ethernet switch
1. Connect your computer directly to the Cisco Switch using an Ethernet patch cord.
2. Set an Static IP for the computer network interface, like 192.168.1.2 with a mask
255.255.255.0
3. Using a browser connect to the Cisco switch. Enter the switch IP address in the address bar
and press Enter. For example http://192.168.1.254. The Default User ID and Password are
"cisco".
© MuxLab Inc. 2014
HDMI over IP Extender Kit with PoE
Operating Manual
500752
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 500752 and is the answer not in the manual?

Questions and answers

Summary of Contents for MuxLab 500752

  • Page 1 Operating Manual Overview The HDMI over IP Extender Kit with PoE (500752) can be used with or without the help of software. When use in an environment without the software the configuration can be manage using the DIP Switches of the device. When used with the software, all the management will be done with it.
  • Page 2 Enabling IGMP Protocol The IGMP Protocol is mandatory when more than one 500752 Encoder is present on the same network. Without IGMP the video will freeze from time to time. 1. Select Multicast->Properties. Enable the Bridge Multicast Filtering Status by checking the check box.
  • Page 3 3. In the IGMP Snooping Table, check the radio button and click edit. In the windows you will need to check the selection box for the IGMP Snooping Status after click ‘Apply’. Check this radio button and click ‘Edit…’ Check this selection box and click ‘Apply’. Verify that this check box is check © MuxLab Inc. 2014...
  • Page 4 Ethernet Switch you will have to use the MuxLab management software to assign static IP to each of the 500752. Before using the software, you will need to configure a static IP on the computer in the same Subnet (192.168.168.xxx) as the 500752, use 192.168.168.1.
  • Page 5 Address for the Encoder and Decoder that will be present on the network. Need to provide the Pool Name, Mask, Address Pool Start and Address Pool Stop 4. Select IP Configuration->DHCP Server->Properties. Enable the DHCP Server Check this check box and click ‘Apply’. © MuxLab Inc. 2014...
  • Page 6 6. Select Administration->Reboot to reboot the Ethernet switch 7. If needed you can configure your computer Network Interface to obtain an IP Address Automatically and you can connect back to the Cisco Ethernet Switch using the IP Address 168.168.1.1 © MuxLab Inc. 2014...
  • Page 7 1. Follow the procedure explained in the installation guide to install all the units. 2. Install the software on a computer that is connected on the same network as the 500752 units. Note: the computer network interface should be configured to use DHCP if a DHCP Server is present, else configure the computer network interface to use the same subnet as the 500752, like 192.168.168.1.
  • Page 8: Troubleshooting

    Too much traffic on the very slow network update. If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International). 8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5...
