USB 3.2 Gen1 4-Port Extender Kit, 100m
User Manual
500530
© MuxLab Inc. 2024
1
94-001041-A/SE-001041-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MuxLab 500530

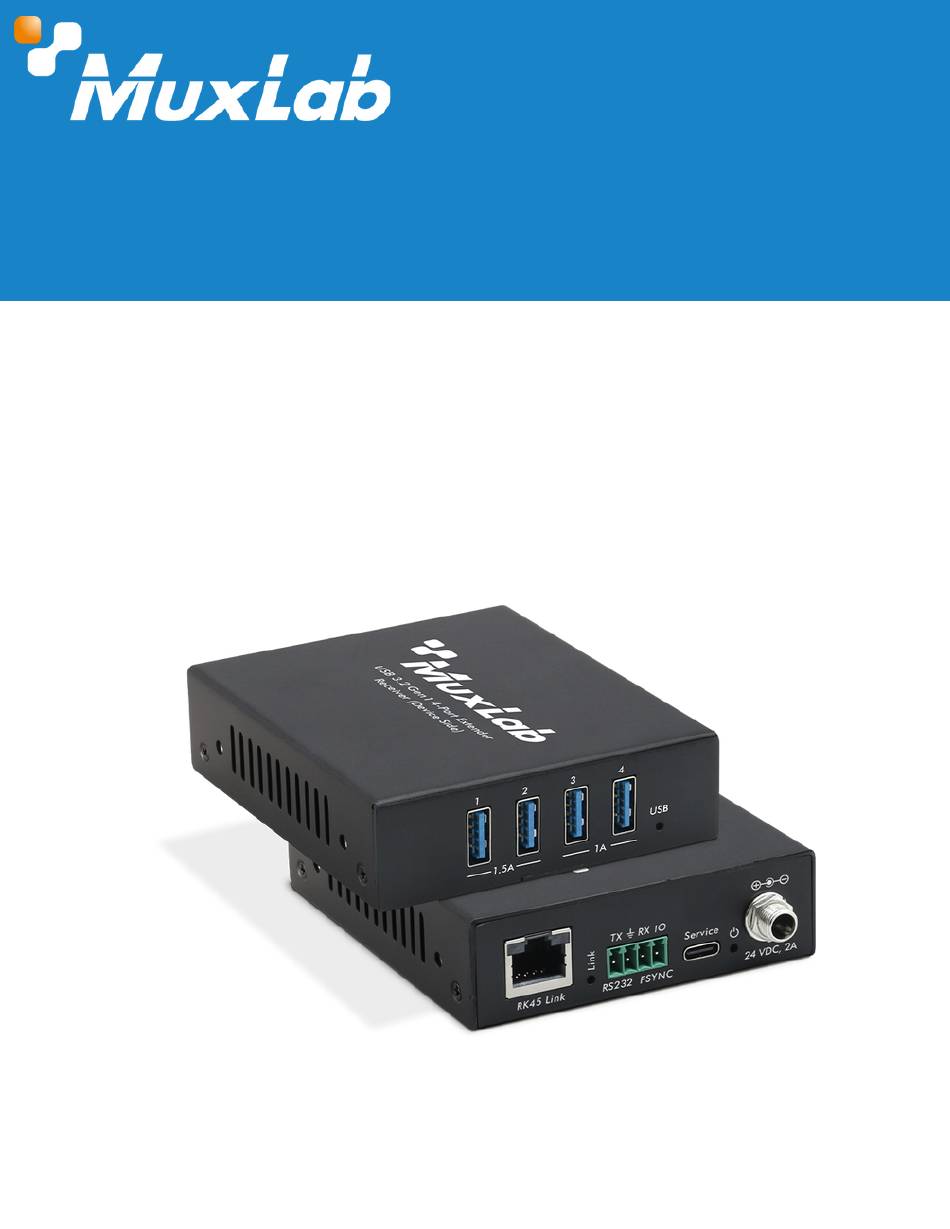

  • Page 1 USB 3.2 Gen1 4-Port Extender Kit, 100m User Manual 500530 © MuxLab Inc. 2024 94-001041-A/SE-001041-A...
  • Page 2: Table Of Contents

    USB 3.2 Gen1 4-Port Extender Kit, 100m Table of Contents 1. Safety Precautions..............................3 2. Introduction................................4 3. Features..................................4 4. Package Contents..............................4 5. Specifications................................5 6. Operation Controls and Functions........................6 6.1 Transmitter Panel...............................6 6.2 Receiver Panel..............................7 7. Application Example...............................8 © MuxLab Inc. 2024 94-001041-A/SE-001041-A...
  • Page 3: Safety Precautions

    All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice.
  • Page 4: Introduction

    USB 3.2 Gen1 4-Port Extender Kit, 100m 2 Introduction The USB 3.2 Gen1 4-Port Extender Kit, 100m (model: 500530) enables USB 3.2 Gen1 connectivity at data rates up to 5Gbps & extends true USB up to 100m (328ft) over standard Cat6a UTP.
  • Page 5: Specifications

    0°C ~ 40°C /32°F ~ 104°F Operating Temperature -20°C ~ 60°C / -4°F ~ 140°F Storage Temperature Relative Humidity 20~90% RH (non-condensing) Generic Specification 2 years Warranty 500530 USB 3.2 Gen1 4-Port Extender Kit, 100m (UPC: 627699005309) Order Information © MuxLab Inc. 2024 94-001041-A/SE-001041-A...
  • Page 6: Operation Controls And Functions

    FSYNC port, used for level pass-through to the Receiver, and synchronizing the FSYNC external devices. The default level is 3.3VDC. Service Firmware update port. Power LED The LED will be on when the Transmitter is powered on. 24VDC 24VDC/2A power input port. © MuxLab Inc. 2024 94-001041-A/SE-001041-A...
  • Page 7: Receiver Panel

    FSYNC port, receiving level pass-through from the Transmitter, and FSYNC synchronizing the external devices. Default level is 3.3VDC. Firmware update port Service The LED will be on when the Receiver is powered on Power LED 24VDC/2A power input port 24VDC © MuxLab Inc. 2024 94-001041-A/SE-001041-A...
  • Page 8: Application Example

    USB 3.2 Gen1 4-Port Extender Kit, 100m 7 Application Example 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada Tel: 514-905-0588 | Fax: USB 3.2 Gen1 4-Port Extender Kit, 100m 514-905-0589 | Toll free: 1-877-689-5228 info@muxlab.com | 500530 salesteam@muxlab.com | www.muxlab.com Follow us:...
