- Page 1 KVM HDMI over IP PoE Extender Deluxe, 4K30 Quick Installation Guide 500850 © MuxLab Inc. 2023 94-001012-A/SE-001012-A...
- Page 2 KVM HDMI over IP PoE Extender Deluxe, 4K30 Table of Contents 1. Safety Precautions..............................3 2. Introduction................................4 3. Features..................................4 4. Package Contents..............................4 5. Specifications................................5 6. Installation Procedures............................6 7. Troubleshooting.................................7 8. Application Diagram..............................8 © MuxLab Inc. 2023 94-001012-A/SE-001012-A...
- Page 3 All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice.

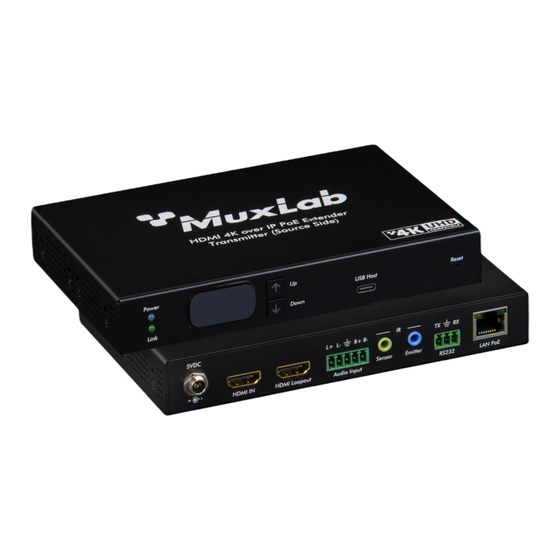

- Page 4 330ft (100m) over an Ethernet LAN, supports HDMI up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0) via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500850-TX) and Receiver (500850-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.
- Page 5 20~90% RH (non-condensing) Generic Specification Compliance Regulatory: FCC, CE, RoHS 3 years Warranty 500850-TX KVM HDMI over IP PoE Transmitter Deluxe, 4K/30 (UPC:627699908501) Order Information 500850-RX KVM HDMI over IP PoE Receiver Deluxe, 4K/30 (UPC:627699808504) © MuxLab Inc. 2023 94-001012-A/SE-001012-A...
- Page 6 ID for each transmitter. Configure each Receiver Device ID to correspond with the selected Transmitter. Skip this step if using MuxLab ProDigital Network Controller (500812). IR and RS232 Ports: The Transmitter and Receiver support bi-directional IR and RS232 ports for control signals if required.
- Page 7 The following table describes some of the symptoms, probable causes and possible solutions in regard to the installation of the KVM HDMI over IP PoE Extender Deluxe, 4K30 : If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
- Page 8 KVM HDMI over IP PoE Extender Deluxe, 4K30 8. Application Diagram 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada Tel: 514-905-0588 | Fax: KVM HDMI over IP PoE Extender Deluxe, 4K30 514-905-0589 | Toll free: 1-877-689-5228 info@muxlab.com | 500850 salesteam@muxlab.com | www.muxlab.com Follow us:...
