The standard cable, RJ-45 pin assignment
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin
allocation and color of straight cable and crossover cable connection:
Straight Cable
1
2
3
4
5
6
1
2
3
4
5
6
Straight Cable
1
2
3
4
5
6
1
2
3
4
5
6
Please make sure your connected cables are with same pin assignment and color as above picture before
deploying the cables into your network.

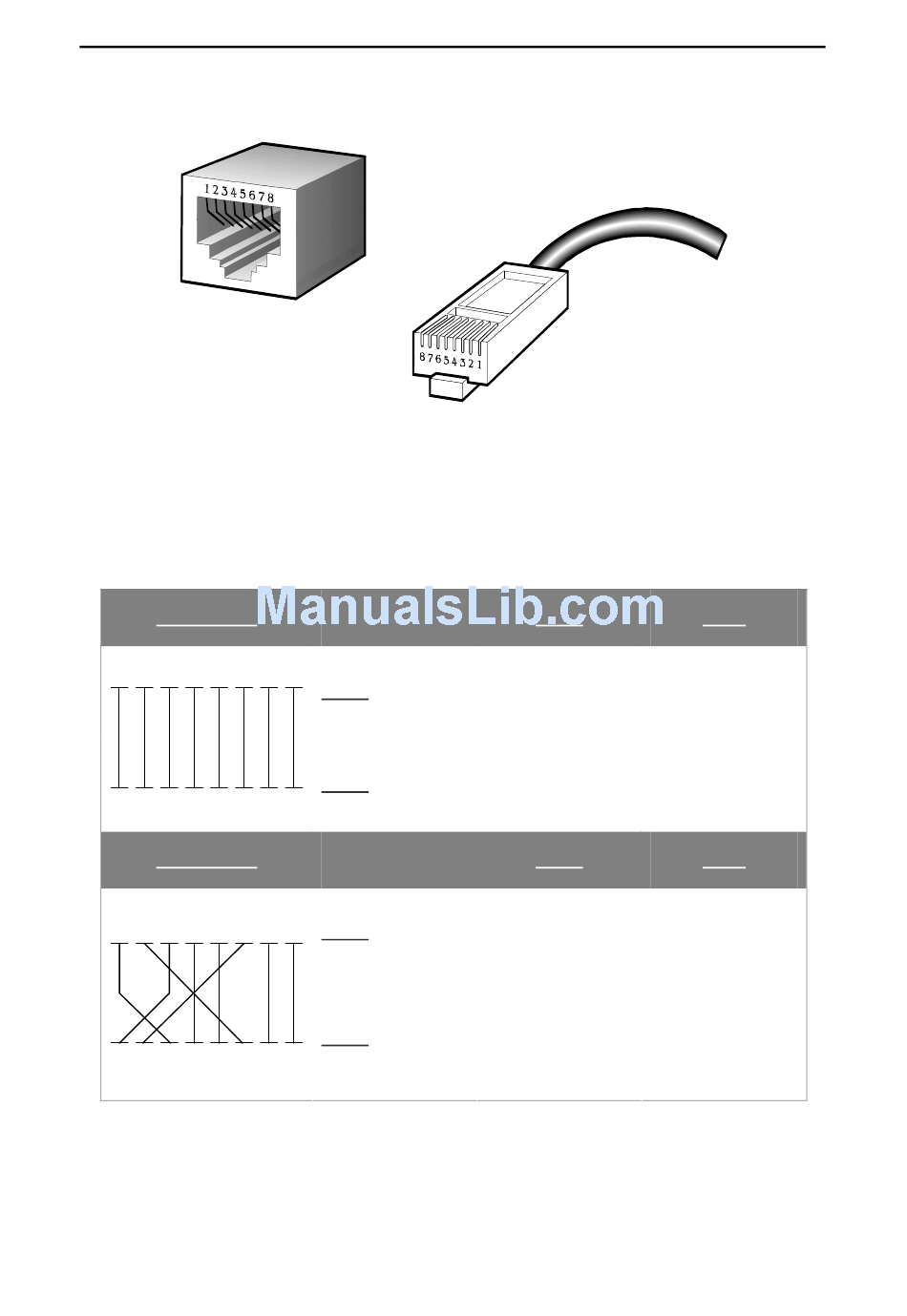

Figure A-2
The standard RJ-45 receptacle/connector
7
8
SIDE 1
SIDE 2
7
8
SIDE 1
7
8
SIDE 2
7
8
Figure A-3: Straight-Through and Crossover Cable
User's Manual of IAP-200x Series
SIDE 1
1 = White / Orange
2 = Orange
3 = White / Green
4 = Blue
5 = White / Blue
6 = Green
7 = White / Brown
8 = Brown
SIDE 1
1 = White / Orange
2 = Orange
3 = White / Green
4 = Blue
5 = White / Blue
6 = Green
7 = White / Brown
8 = Brown
-80-
SIDE2
1 = White / Orange
2 = Orange
3 = White / Green
4 = Blue
5 = White / Blue
6 = Green
7 = White / Brown
8 = Brown
SIDE2
1 = White / Green
2 = Green
3 = White / Orange
4 = Blue
5 = White / Blue
6 = Orange
7 = White / Brown
8 = Brown
