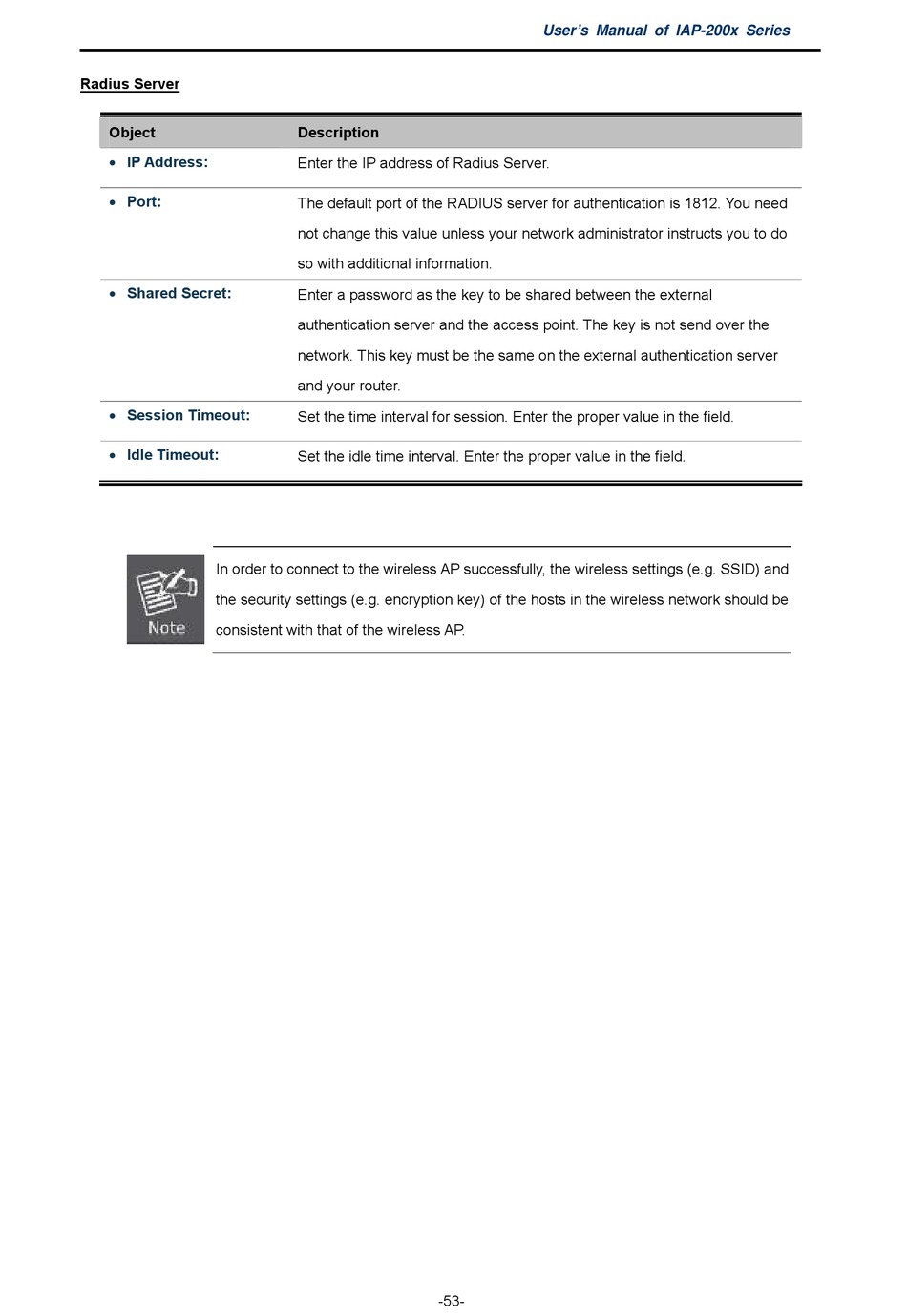

Planet Networking & Communication IAP-2000PS User Manual page 54

Radius Server
Object
 IP Address:
 Port:
 Shared Secret:
 Session Timeout:
 Idle Timeout:
In order to connect to the wireless AP successfully, the wireless settings (e.g. SSID) and
the security settings (e.g. encryption key) of the hosts in the wireless network should be
consistent with that of the wireless AP.
Description
Enter the IP address of Radius Server.
The default port of the RADIUS server for authentication is 1812. You need
not change this value unless your network administrator instructs you to do
so with additional information.
Enter a password as the key to be shared between the external
authentication server and the access point. The key is not send over the
network. This key must be the same on the external authentication server
and your router.
Set the time interval for session. Enter the proper value in the field.
Set the idle time interval. Enter the proper value in the field.
-53-
User's Manual of IAP-200x Series
