D. WPA
The page includes the following fields:
Object
 WPA Algorithms
 Key Renewal Interval
 IP Address
 Port
 Shared Secret
 Session Timeout

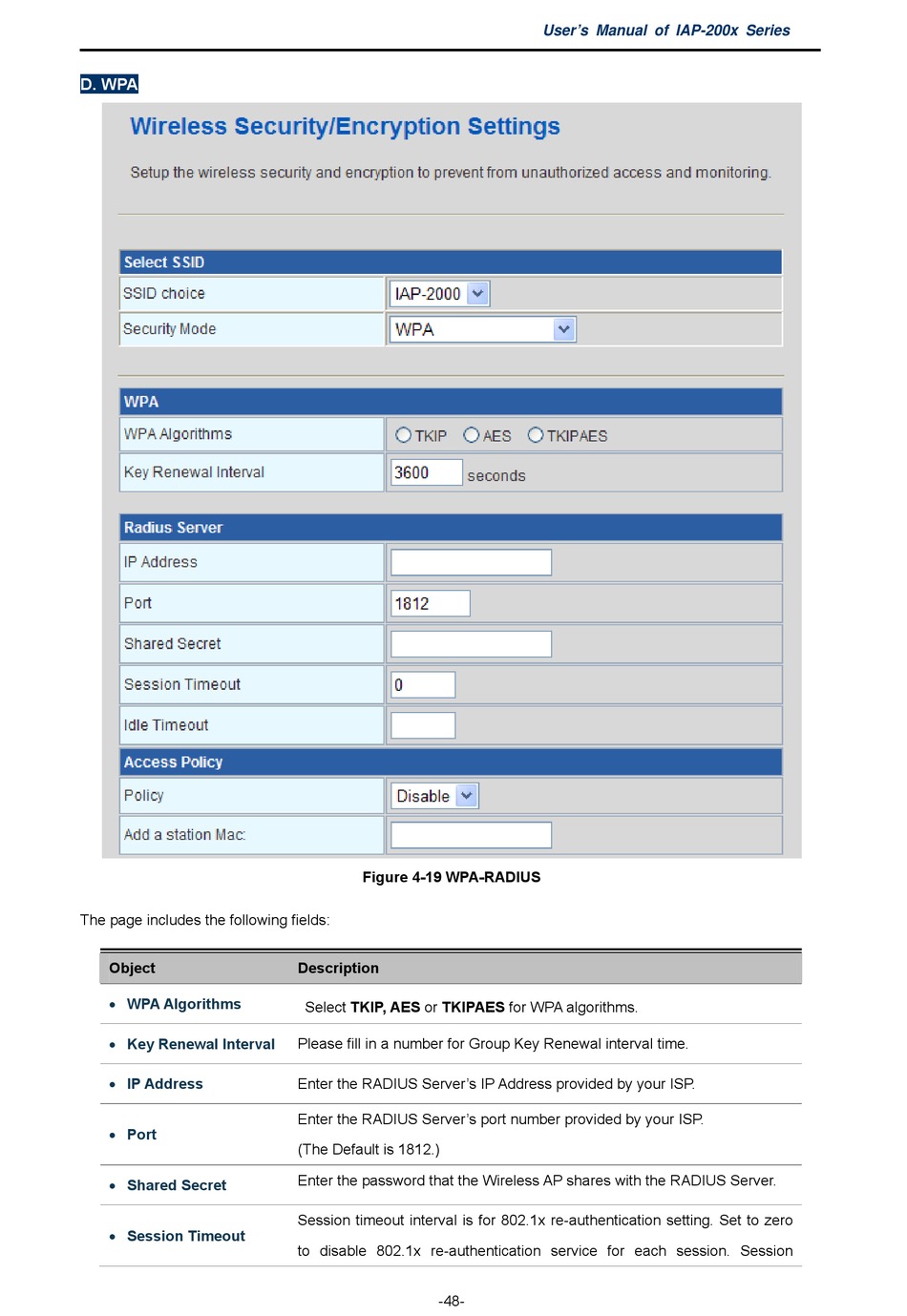

Figure 4-19 WPA-RADIUS
Description
Select TKIP, AES or TKIPAES for WPA algorithms.
Please fill in a number for Group Key Renewal interval time.
Enter the RADIUS Server's IP Address provided by your ISP.
Enter the RADIUS Server's port number provided by your ISP.
(The Default is 1812.)
Enter the password that the Wireless AP shares with the RADIUS Server.
Session timeout interval is for 802.1x re-authentication setting. Set to zero
to disable 802.1x re-authentication service for each session. Session
