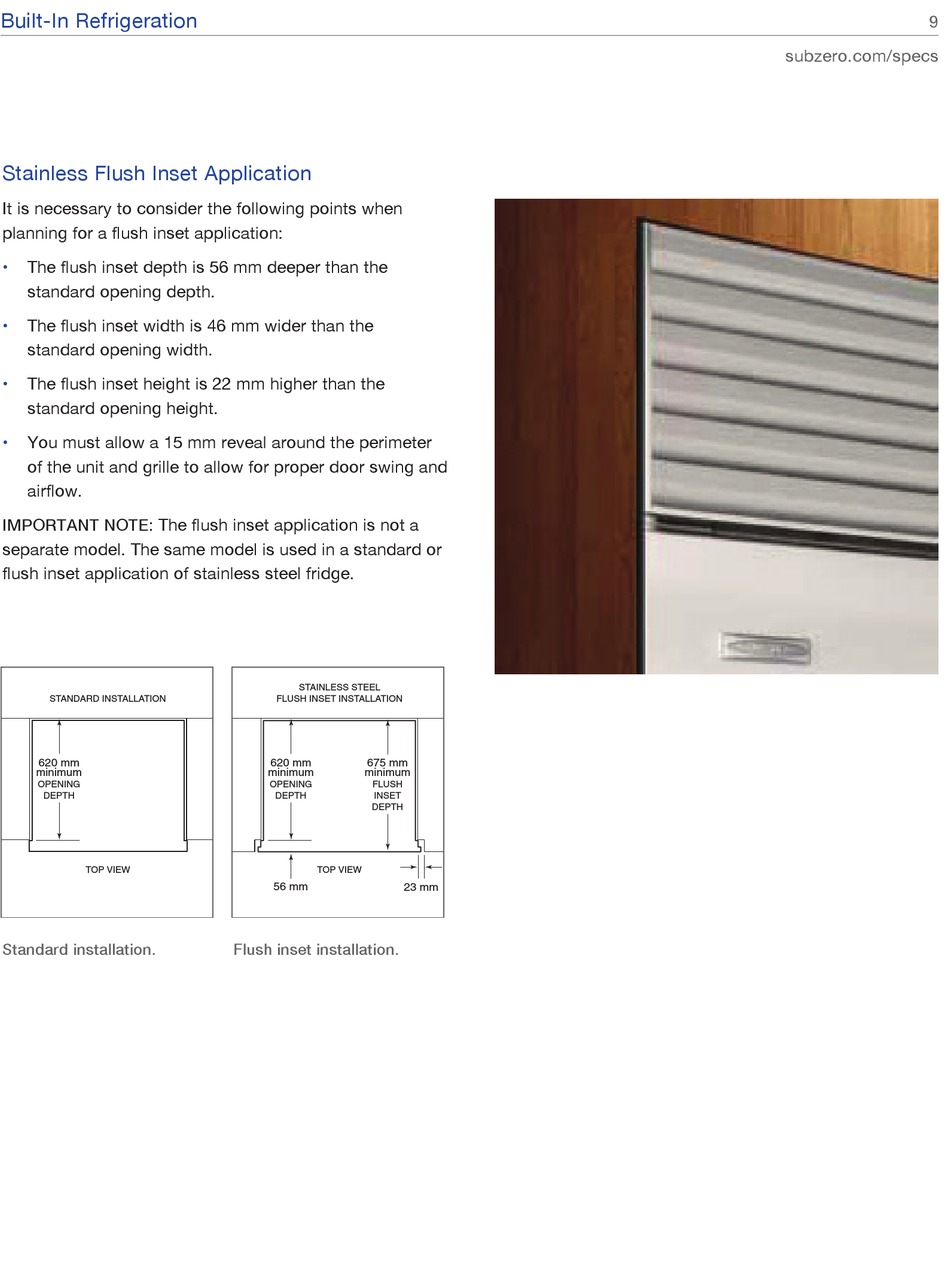

Sub-Zero ICBBI-36F Manual page 9

Built-In Refrigeration
Stainless Flush Inset Application
It is necessary to consider the following points when
planning for a fl ush inset application:
• The fl ush inset depth is 56 mm deeper than the
standard opening depth.
• The fl ush inset width is 46 mm wider than the
standard opening width.
• The fl ush inset height is 22 mm higher than the
standard opening height.
• You must allow a 15 mm reveal around the perimeter
of the unit and grille to allow for proper door swing and
airfl ow.
IMPORTANT NOTE: The fl ush inset application is not a
separate model. The same model is used in a standard or
fl ush inset application of stainless steel fridge.
STANDARD INSTALLATION
620 mm
minimum
OPENING
DEPTH
TOP VIEW
Standard installation.
STAINLESS STEEL FLUSH INSET INSTALLATION
FLUSH INSET INSTALLATION
620 mm 675 mm 620 mm
minimum minimum minimum
OPENING FLUSH OPENING
DEPTH INSET DEPTH
DEPTH
TOP VIEW
56 mm 56 mm 23 mm
Flush inset installation.
19 mm
WITH PANEL
675 mm
minimum
FLUSH
INSET
DEPTH
TOP VIEW
32 mm
