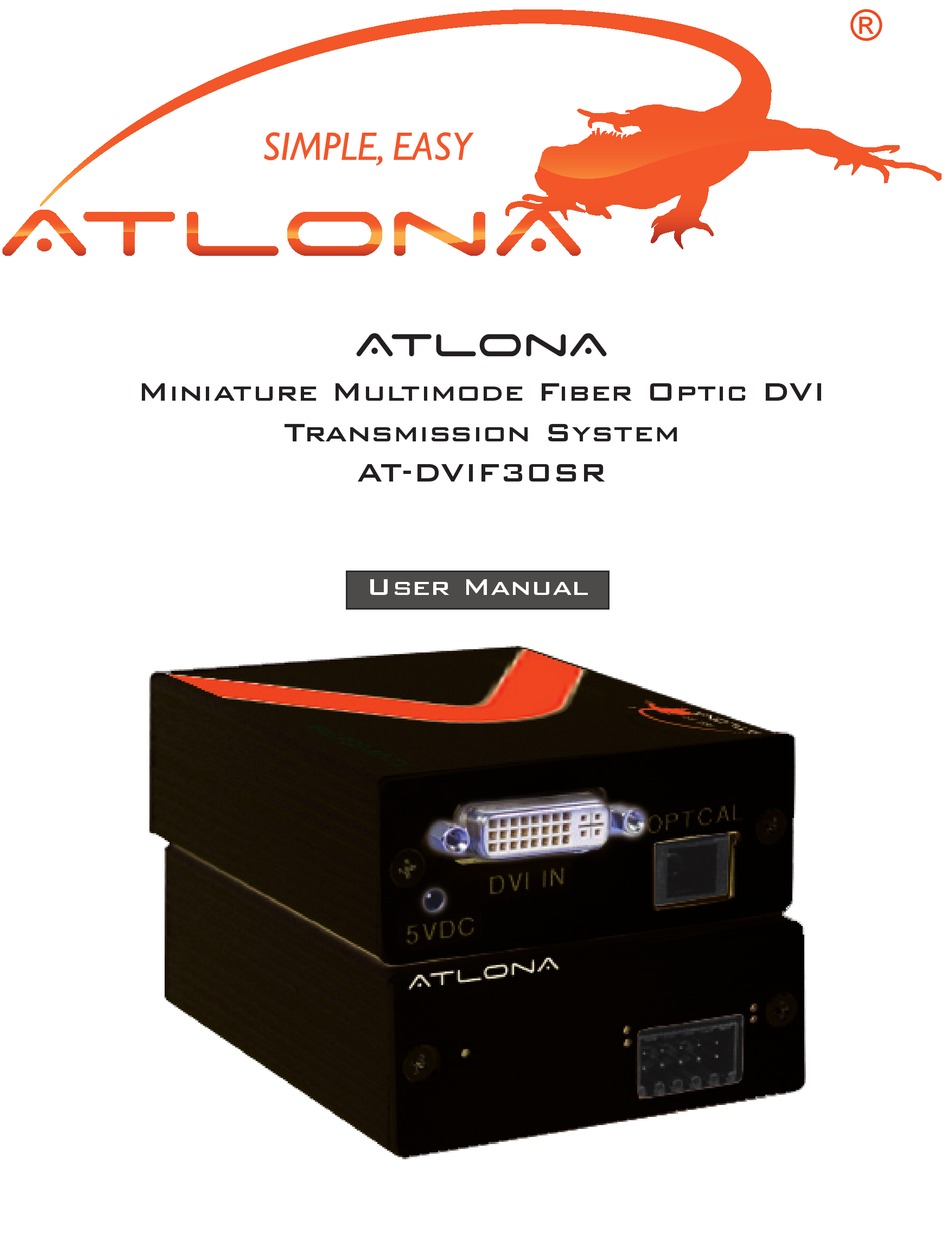

- Page 1 AtlonA Miniature Multimode Fiber Optic DVI Transmission System AT-DVIF30SR User Manual...
-
Page 2: Table Of Contents
2. Features ..........3. Specification ..........4. Package Contents ..........5. Operation ..........6. Audio ..........7. Serial Data ..........8. RS-422 Serial Data ..........9. Connection Diagram ..........10. Safety Information ..........11. Warranty ..........12. Atlona Product Registration .......... -
Page 3: Introduction
400m (1320FT) at WUXGA (1920x1200 @ 60Hz) and supports HDTV resolution up 1080p. Along with being HDCP compatible, Atlona’s AT-DVIF30SR is equipped with advanced digital fiber optic technology, which allows for self adjustment with no compression, bit reduction, or signal degradation. -
Page 4: Specification
SPECIFICATIONS: Video Resolution Up to 1080p@60Hz or 1920x1200@60Hz Connector DVI Female Plug Protocol HDCP/DDC Capable Audio Channel Capacity Operating Mode Unbalanced (Stereo Audio), Bi-directional Input/Output Impedance 10k/50 Ohms (Stereo Audio) Max. Input/Output Level 5 dBu/4Vpp (Stereo Audio) Magnitude Freq. Response 20Hz to 20kHz @ -3dB THD+N >70 @ 1k Hz (Stereo Audio) -
Page 5: Operation
1. Connect one serial computer data cable to the the RS-232 device. 2. Next, connect the other end of cable to the front panel data terminal connector on the AT-DVIF30SR. RS-422 SERIAL DATA: Atlona’s AT-DVIF30SR units transmit a single channel of differential data signals which are compatible with RS-422 electrical signals 1. -
Page 6: Connection Diagram
CONNECTION DIAGRAM Computer with DVI out DVI Cable AT-DVIF30S Stereo Audio RS-232 (2) Fiber Cable ... or ... or Stereo Audio RS-232 (2) AT-HDF30R AT-DVIF30R AT-RGB- HDMI Cable DVI Cable RS-232 (2) Stereo Audio RS-232 (2) Stereo Audio DVI Monitor HDMI Display VGA or YPbPr Display... -
Page 7: 10. Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 8: 11. Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 9: 12. Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
