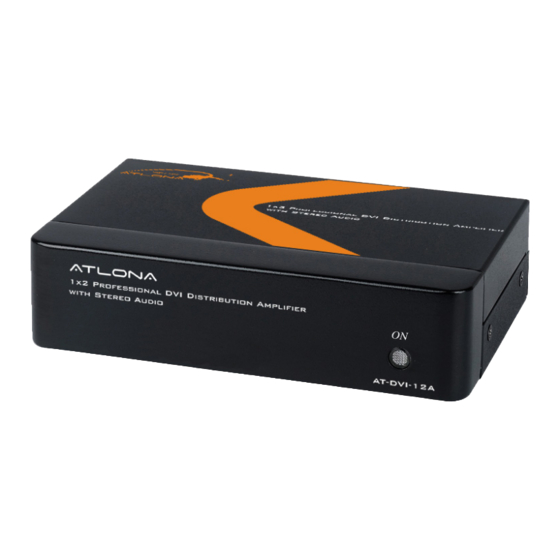

- Page 1 AtlonA 1x2 and 1x4 Professional DVI Distribu- tion Amplifier with Stereo Audio AT-DVI-12A & AT-DVI-14A User Manual AT-DVI-12A AT-DVI-14A Front Front View View Rear View...
-
Page 2: Table Of Contents
5.1.1. Front Panel ..........5.1.2. Rear Panel ..........5.2. AT-DVI-14A ..........5.2.1. Front Panel ..........5.2.2. Rear Panel ..........6. Installation View ..........6.1. AT-DVI-12A ..........6.2. AT-DVI-14A ..........7. Safety Information ..........8. Warranty ..........9. Atlona Product Registration .......... -
Page 3: Introduction
Stereo Audio on the market designed to work as a splitter for any DVI Video application. With 1 DVI Input and 2 DVI Outputs, the AT-DVI-12A is capable of splitting a DVI signal from one source to two separate devices with compatible inputs. Likewise, the AT-DVI-14A is able to split a DVI signal from one source to four separate devices with compatible inputs. -
Page 4: Panel Descriptions
PANEL DESCRIPTION 1. AT-DVI-12A 1.1. Front Panel Atlona 1x2 Profes with Stereo Audio AT -DVI-12A 1. ON Button: Power Unit On and Off 1.2. Rear Panel 1. Video Input: DVI Input (Digital signal Only) 2. Audio Input: 3.5mm stereo audio input port 3. -
Page 5: At-Dvi-14A
2. AT-DVI-14A 2.1. Front Panel Atlona 1x4 Profes with Stereo Audio AT -DVI-14A 1. ON Button: Power Unit On and Off 2.2. Rear Panel 1. Video Input1: DVI Input (Digital signal Only) 2. Audio Input: 3.5mm stereo audio input port 3. -
Page 6: Installation View
CONNECTION DIAGRAM 1. AT-DVI-12 AUDIO AUDIO AUDIO DC 5 V OUT 1 OUT 2 Audio System 2 Audio System 1 TV 1 TV 2 2. AT-DVI-14 Audio System 1 Audio System 2 Audio System 3 Audio System 4 AUDIO AUDIO AUDIO AUDIO AUDIO... -
Page 7: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-DVI-12A/14A. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 9: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
