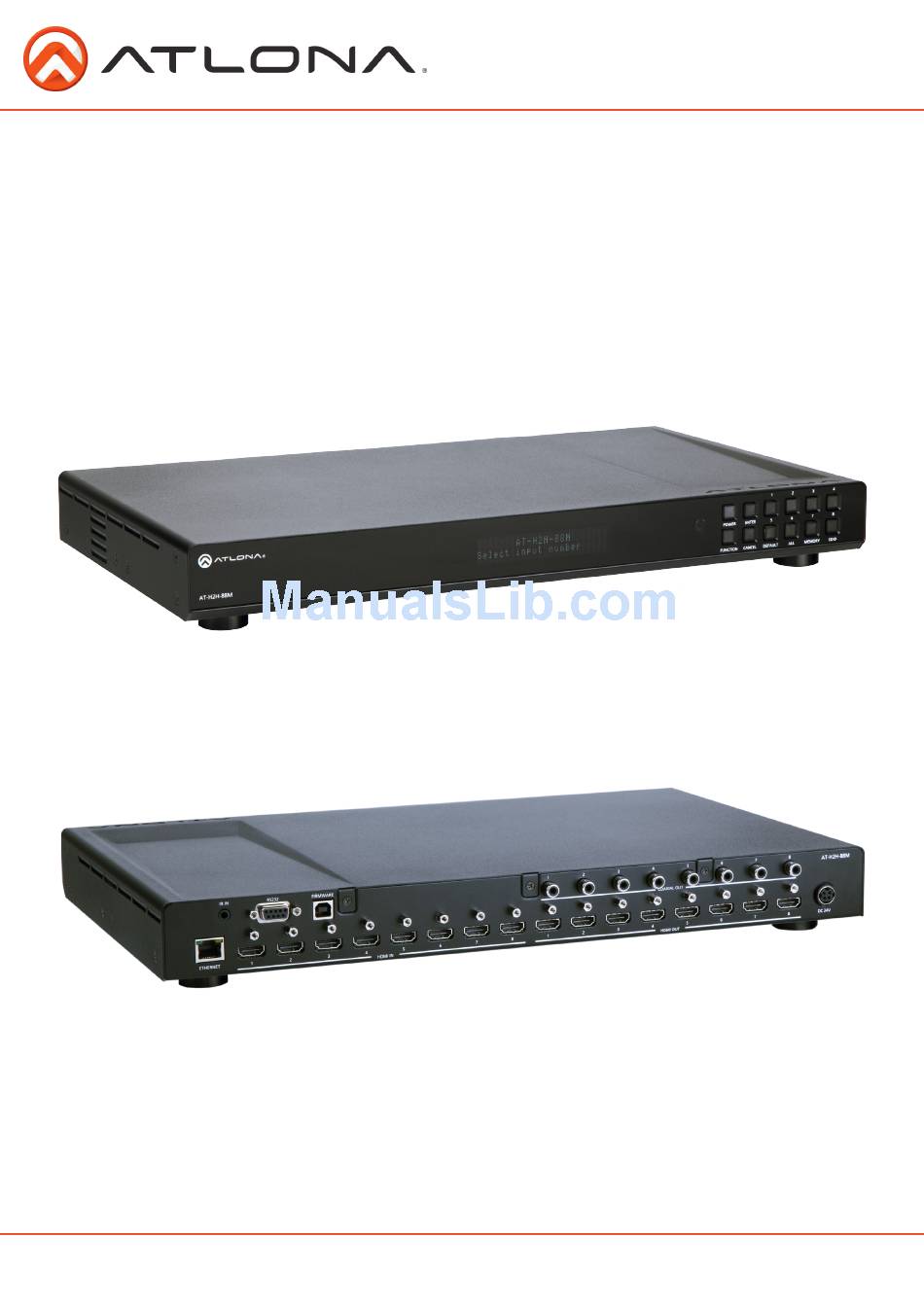

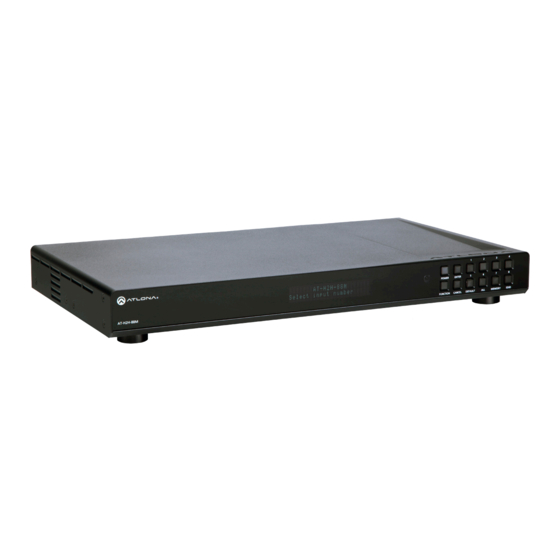

Atlona HDMI to HDMI Matrix Switcher
AT-H2H-44M and AT-H2H-88M
(pictured below)
User Manual
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-H2H-44M and is the answer not in the manual?

Questions and answers

Related Manuals for Atlona AT-H2H-44M

Summary of Contents for Atlona AT-H2H-44M

  • Page 1 Atlona HDMI to HDMI Matrix Switcher AT-H2H-44M and AT-H2H-88M (pictured below) User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 2: Table Of Contents

    11. Resetting and Updating .................... 20 12. Specifications .................... 21 13. Safety Information .................... 22 14. Warranty .................... 23 15. Atlona Product Registration .................... 24 Revision B (3/11/13): Features added TCP/IP Page 16-18 Internal EDIDs Page 11 Toll free: 1-877-536-3976 atlona.com...

  • Page 3: Introduction

    Introduction Multiple control options, HD resolutions, and the best audio, the Atlona HDMI ® to HDMI matrix switcher is built for your home and professional needs. With the ability to pass 1080p, 1920x1200, all Lossy and Lossless audio formats (including Dolby ®...

  • Page 4: Panel Description

    Select IR 1: On 2: Off Feedback= Select IR 1:On 2: Off ---> ---> ---> ---> Current On ”IR On Selected” Current: On/Off Select IR 1: On 2: Off Feedback= ---> ---> ---> Current off ”IR Off Selected” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 5: Rear Panel

    6. HDMI Input Ports: Connect HDMI sources into these ports, such as DVD players, Blu-ray players, computers, etc. 7. HDMI out port: Connect to a display or an AVR 8. Power Port: Use included locking DC adaptor to power the matrix switcher IR Receiver Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 6: Connection Diagram

    Connection Diagram Digital audio de-embedding Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 7: Matrix I/O Control

    Select Function Option AT-H2H-XXM ---> ---> ---> ---> to save to all outputs Select Input Number Input # to all outputs Feedback= through ---> ---> ---> ---> Press enter to confirm ”Input # saved to all” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 8 ---> ---> Select Input Number 1 Save in/out route Select memory route 1-4/8: # ---> ---> ---> 2 Select memory route Press enter to load memory selection Feedback= through ---> ---> ”Memory # loaded” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 9: Edid Set Up

    Copy from output # Copy from output # through ---> ---> ---> ---> Save to Memory (1-4) # Save to Memory (1-4/8) # memory selection Feedback= through ---> ---> ”Saved port # EDID to Memory # [Failed/Passed]” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 10 1.Default 2.Saved 3.Int Feedback = ”Save memory # EDID Use EDID memory # + enter ---> ---> _ _ _ to input #” Atlona EDID - ATL Pioneer EDID - PIO Toshiba EDID - TSB Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 11: Rs-232

    Ex. EDIDMset1 save3 - sets input 1 to the EDID memory 3 EDIDMSetX intZ EDIDMSetX intZ Sets the EDID of an input to one of the internal EDIDs Ex. EDIDMset3 int6 - sets input 3 to the internal EDID - 1080p 3D Dolby Digital 5.1 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 12: Matrix Status

    5 seconds AT-H2H-XXM AT-H2H-XXM ---> ---> ---> FPGA 1 Ver: 0.0.XX FW Ver: 0.3.XX FPGA Version AT-H2H-XXM ---> ---> Console: X X X X Matrix Baud Rate 115200 8 None 1 9600 8 ODD 0 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 13: S/Pdif And Arc

    5. Connect the S/PDIF port to an AVR or Zone Amp NOTE: The S/PDIF port used must be the same output number as the HDMI port connected to the display HDMI Bidirectional HDMI w/ARC signal S/PDIF audio loop-out Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 14 NOTE: If audio does not pass through, check to make sure ARC is turned off. NOTE: HD audio formats are not supported through S/PDIF. Ex. Dolby TrueHD or DTS-HD Master Audio Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 15: Connection

    Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any hyperterminal program may be used to control the matrix now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 16: Tcp/Ip

    The matrix is now ready to be used for TCP/IP control. The Ethernet cable may be connected now. Note: If IPLogin is turned on, default TCP/IP log in is ~ username- root password- Atlona Ethernet TCP/IP Set up (If RS-232 is not available)

  • Page 17: Commands

    Switch input to output (input 3 to output 2 = x3AVx2) x1AVx2,x3,x4 x1AVx2,x3,x4 Switch input to multiple outputs (input 3 = x3AVx1,x2) IRON IRON Turns on the IR receiver IROFF IROFF Turns off the IR receiver Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 18: Tcp/Ip Commands

    Add a user for TCP/IP control. X=User Y=Password Ex. IPAddUser Atlona 1234 (User=Atlona 1234=Password) IPDelUser [X] TCP/IP user was deleted Delete a user from TCP/IP X=User (Ex. IPDelUser Atlona) IPDHCP sta IPDHCP sta Displays the status of DHCP Ex. IPDHCP on...

  • Page 19: Remote Control

    Remote Control Output selection. Numbers correspond with the HDMI outputs on the matrix. Arrow buttons are not functional for this product. Input selection. Numbers correspond with the HDMI inputs on the matrix. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 20: Resetting And Updating

    If you wish to verify the new firmware, use the RS-232 command “Version”. Resetting to factory settings Atlona understands that settings can be troublesome and at times its just easier to set things back to factory settings. To make things easier a simple one step reset was created.

  • Page 21: Specifications

    Specifications Bandwidth 6.75Gbps Ports AT-H2H-44M AT-H2H-88M Video input 4 x HDMI 8 x HDMI Video output 4 x HDMI 8 x HDMI Audio output 4 x S/PDIF 8 x S/PDIF IR input 1 x 3.5 mm 1 x 3.5 mm...

  • Page 22: Safety Information

    It may also cause damage to your AT-H2H-XXM. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

  • Page 23: Warranty

    Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt.

  • Page 24: Atlona Product Registration

    Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.

This manual is also suitable for:

At-h2h-88m
